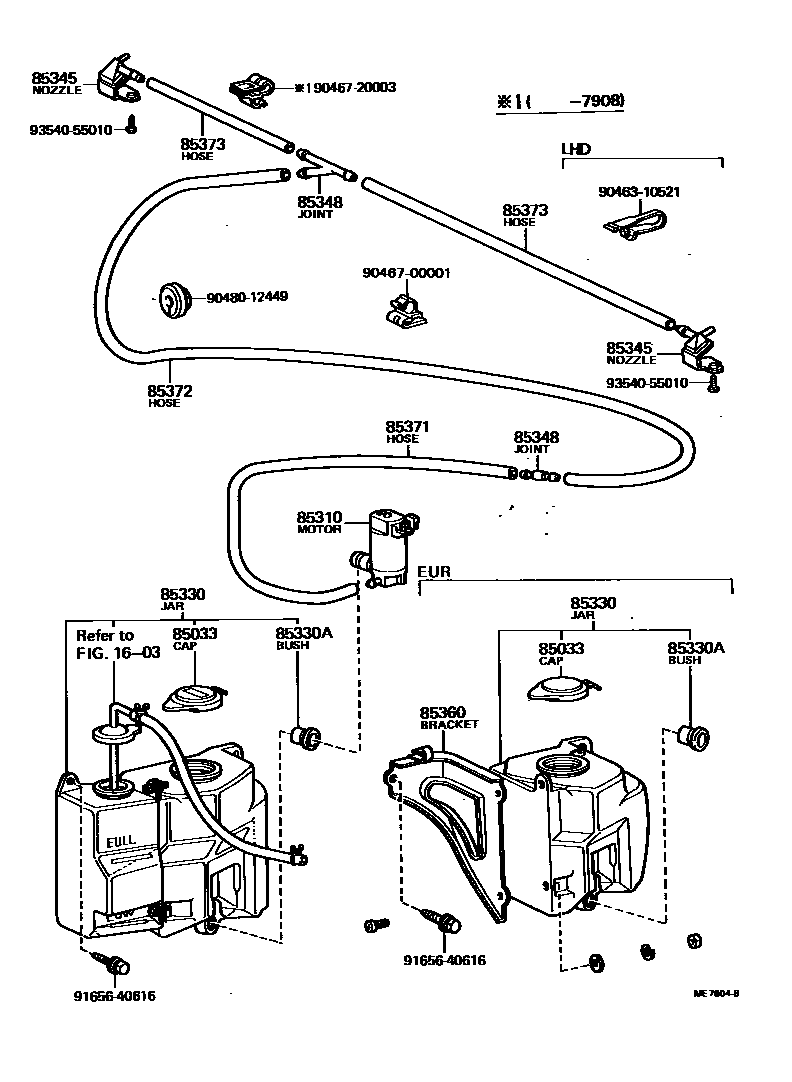

Toyota TERCEL — WINDSHIELD WASHER

1603

85033CAP ASSY, WINDSHIELD WASHER

main85332-16010iAL11197901-198204

main85332-20060iAL11..EUR198008-198204

COLD SPEC

sub85332-12320

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20100iAL11197901-198204

sub85310-22080

85330JAR ASSY, WINDSHIELD WASHER

main85330-16020iAL11..GEN197901-197902

main85330-16021iAL11..GEN197902-197908

main85330-16022iAL11..GEN197908-198008

main85330-16030iAL11..EUR197901-198008

main85330-16060iAL11..GEN198008-198204

main85330-16080iAL11..EUR198008-198204

main85330-16090iAL11..EUR198008-198204

COLD SPEC

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAL11197901-198204

85345NOZZLE, WINDSHIELD WASHER

main85345-16010iAL11197901-198204

RH

main85346-16010iAL11197901-198204

LH

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85355-14010iAL11197901-198204

3 WAY

sub85348-12250

main85355-87201iAL11197901-198204

2 WAY

sub85349-89122

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-16020iAL11..EUR197901-198204

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013iAL11197912-198204

L=1000(*H,L=400)

main90446-06286iAL11197901-197912

L=1000(*H,L=400)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33315iAL11197901-197912

L=1450(*H,L=900)

main90446-06013iAL11197912-198204

L=1450(*H,L=900)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33248iAL11197901-198204

L=1000(*H,L=80)

main90446-06286iAL11197901-198204

L=1000(*H,L=400)

9046310521

main90463-10521

9046700001

main90467-00001

9046720003

main90467-20003

9048012449

main90480-12449

9165640616

main91656-40616

9354055010

main93540-55010

17 parts on this diagram · 1 diagram in section
