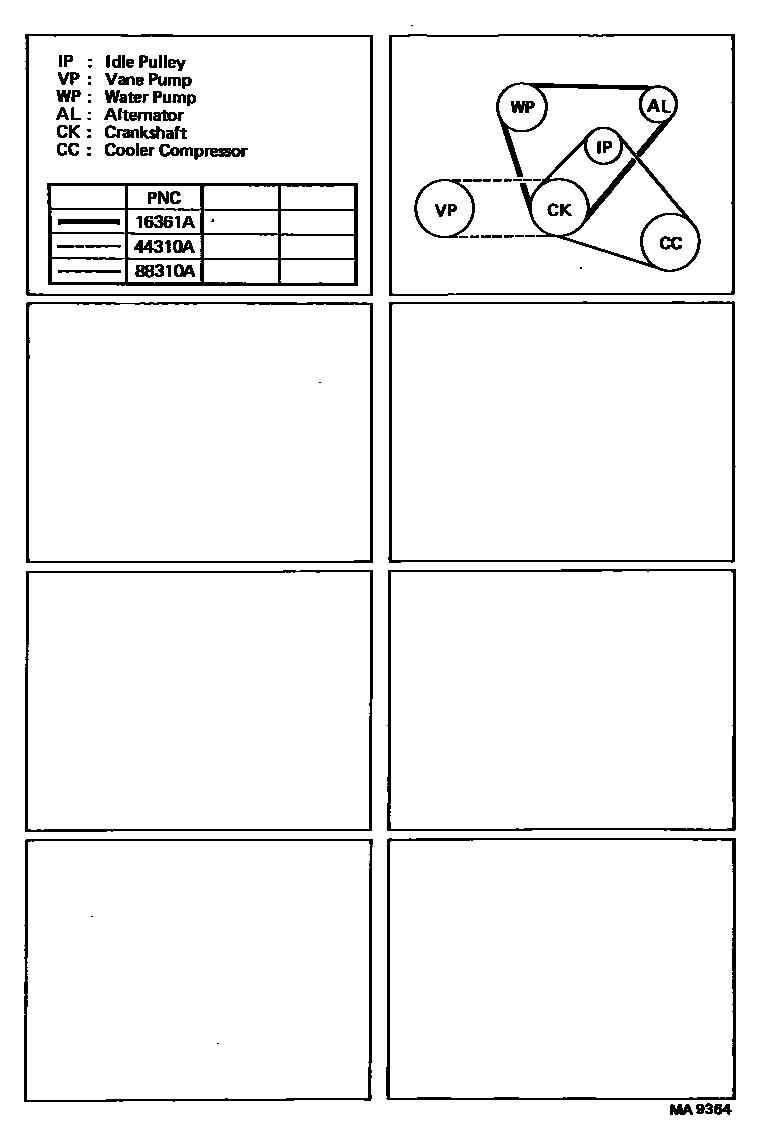

Toyota TERCEL — V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02126i198605-198801

main99321-50985i198605-198801

SWEDEN SPEC

main99321-51070i198205-198408

W/COOLER

44310ABELT, V(FOR VANE PUMP)

main90916-02113i198308-198801

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-50985i198505-198801

IDLE PULLEY;OD=80

main99332-10985i198408-198801

IDLE PULLEY;OD=90

3 parts on this diagram · 1 diagram in section

V-BELT for Toyota TERCEL

This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota TERCEL. Key components include: BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR VANE PUMP), BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
