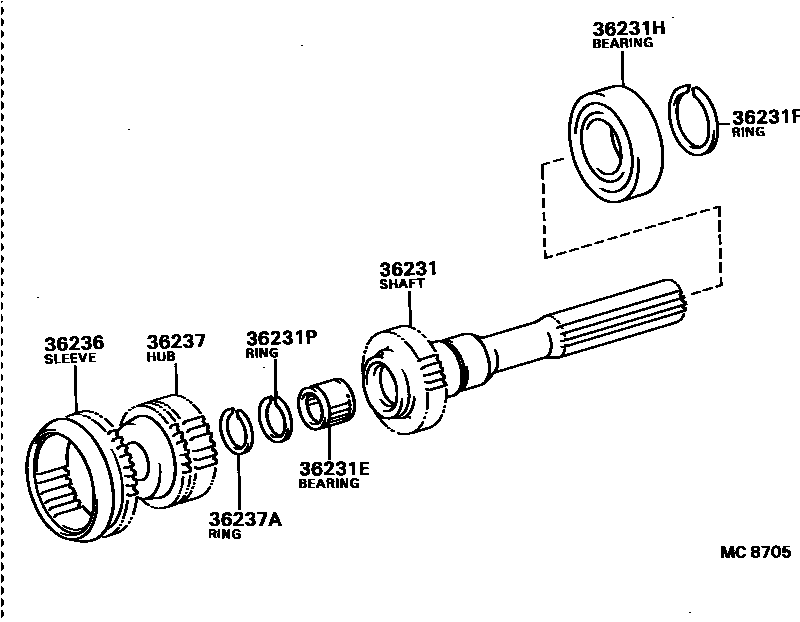

Toyota TERCEL — TRANSFER GEAR

36231SHAFT, TRANSFER OUTPUT, REAR

main36231-16010i198208-198801

36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)

main90364-18003i198208-198801

36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)

main90520-30200i198208-198801

T=1.95-2.00

36231HBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT)

main90363-32014i198208-198801

36231PRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT FRONT BEARING)

main90520-22004i198208-198801

36236SLEEVE, FRONT DRIVE CLUTCH

main36236-16010i198208-198801

36237HUB, TRANSFER CLUTCH

main36237-16010i198208-198801

36237ARING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)

main90520-20001i198208-198801

T=1.80-1.85

8 parts on this diagram · 1 diagram in section

TRANSFER GEAR for Toyota TERCEL

This section contains 8 genuine Toyota parts for the TRANSFER GEAR system of the Toyota TERCEL. Key components include: SHAFT, TRANSFER OUTPUT, REAR, BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT), RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT), BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT), RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT FRONT BEARING).
