E
EPC Data

Toyota TERCEL — STEERING WHEEL

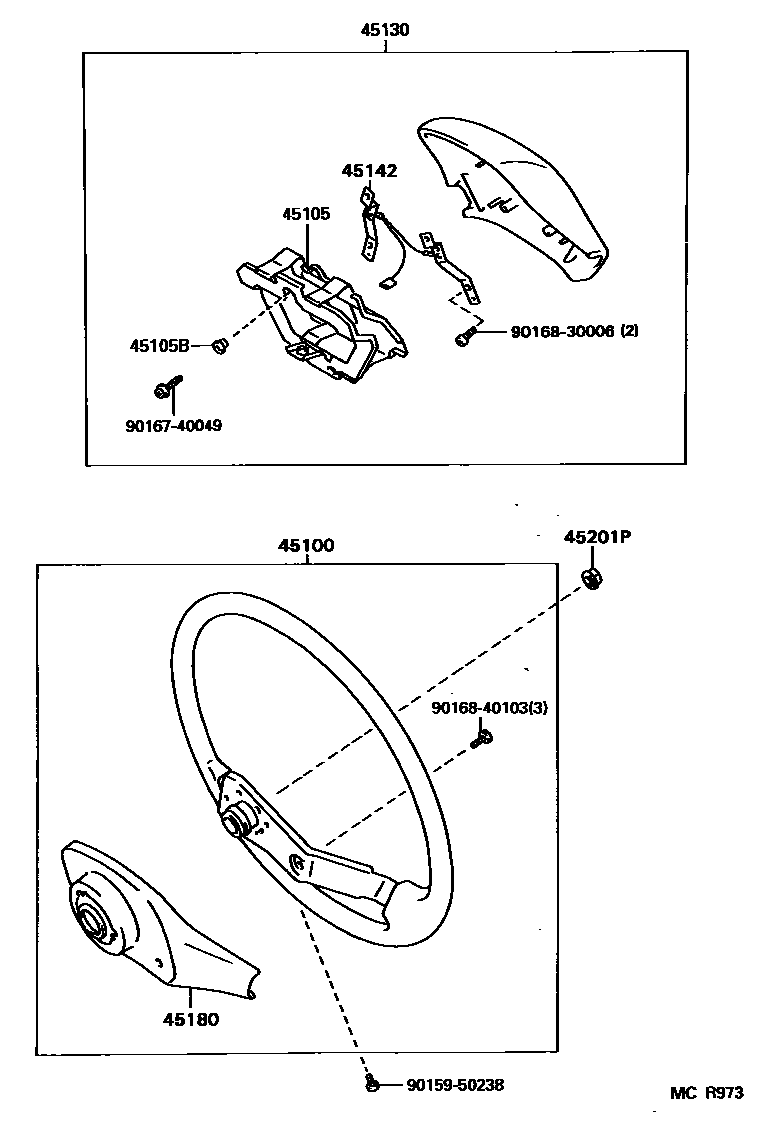

Parts diagram
45100WHEEL ASSY, STEERING
main45100-16370-B0i199409-199608
2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1#
main45100-16370-B1i199712
2SPOKE,POLYPROPYLENE,SHADOW GRAY,TRIM1#
main45100-16370-E0i199409-199712
2SPOKE,POLYPROPYLENE,OAK,TRIM4#
main45100-16380-B0i199409-199608
4-SPOKE,URETHANE,BLUISH GRAY,TRIM1#
main45100-16380-B1i199608-199712
4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#
main45100-16380-E0i199712
4-SPOKE,URETHANE,OAK,TRIM4#
main45100-16500-B0i199608-199712
4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1#
main45100-16500-E0i199608-199712
4-SPOKE,URETHANE,W(*80),OAK,TRIM4#
main45100-16550-B0i199712
4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1#
main45100-16550-E0i199712
4-SPOKE,URETHANE,W(*80),OAK,TRIM4#
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
main45105-10070i199409-199712
W(2-SPOKE STEERING WHEEL)
main45105-20480i199409-199712
W(4-SPOKE STEERING WHEEL)
45105BSPACER(FOR HORN BUTTON CONTACT PLATE)
main90561-04014i199409-199712
45130BUTTON ASSY, HORN
main45130-16290-B0i199409-199608
BLUISH GRAY,TRIM1#
main45130-16290-B1i199608-199712
W(2-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#
main45130-16290-E0i199409-199712
W(2-SPOKE STEERING WHEEL),OAK,TRIM4#
main45130-16340-B1i199608-199712
W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#
main45130-16340-E0i199712
W(4-SPOKE STEERING WHEEL),OAK,TRIM4#
main45130-16390-B0i199608-199712
W(*80),SHADOW GRAY,TRIM1#
main45130-16390-E0i199608-199712
W(*80),OAK,TRIM4#
main45130-16440-B0i199712
W(*80),SHADOW GRAY,TRIM1#
main45130-16440-E0i199712
W(*80),OAK,TRIM4#
45142SEAT, HORN BUTTON CONTACT, NO.1
main45142-12100i199409-199712
45180COVER SUB-ASSY, STEERING WHEEL
main45180-16140-B0i199409-199608
BLUISH GRAY,TRIM1#
main45180-16140-B1i199608-199712
W(2-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#
main45180-16140-E0i199712
W(2-SPOKE STEERING WHEEL),OAK,TRIM4#
main45180-16150-B0i199409-199608
W(4-SPOKE STEERING WHEEL),BLUISH GRAY,TRIM1#
main45180-16150-B1i199608-199712
W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#
main45180-16150-E0i199409-199712
W(4-SPOKE STEERING WHEEL),OAK,TRIM4#
45201PNUT, STEERING WHEEL SET
main90179-12071i199409
9015950238
main90159-50238
9016740049
main90167-40049
9016830006
main90168-30006
9016840103
main90168-40103

11 parts on this diagram · 3 diagrams in section

STEERING WHEEL for Toyota TERCEL

This section contains 15 genuine Toyota parts for the STEERING WHEEL system of the Toyota TERCEL. Key components include: WHEEL ASSY, STEERING, PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1, CUSHION(FOR HORN BUTTON CONTACT PLATE), SPACER(FOR HORN BUTTON CONTACT PLATE), BUTTON ASSY, HORN.
