EPC Data

Toyota TERCEL — STEERING WHEEL

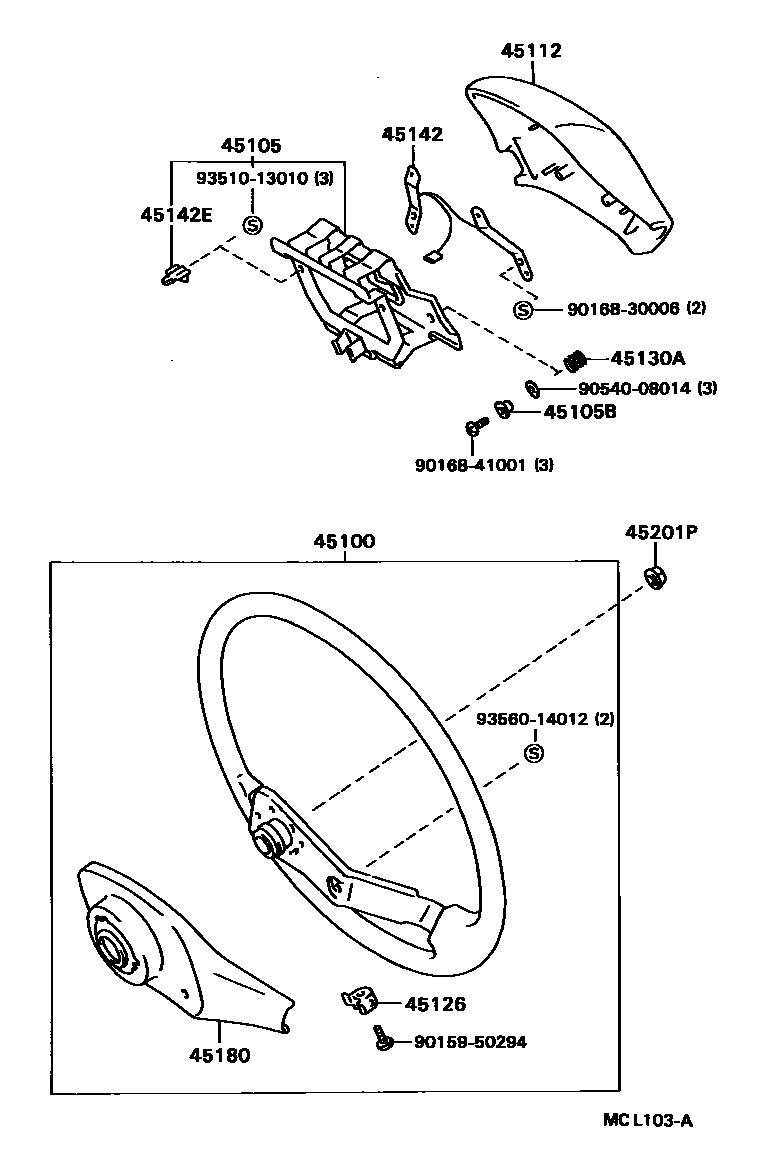

Parts diagram
45100WHEEL ASSY, STEERING
main45100-16240-01i199009-199208
BLACK,TRIM2#
main45100-16240-04i199009-199208
GRAYISH BLUE,TRIM8#
main45100-16240-22i199208-199409
BLACK,TRIM2#
main45100-16240-W4i199208-199409
EISEN BLUE,TRIM8#
main45100-16250-01i199009-199208
4-SPORK URETHANE,BLACK,TRIM2#
main45100-16250-04i199009-199208
4-SPORK URETHANE,GRAYISH BLUE,TRIM8#
main45100-16250-22i199308-199409
BLACK,TRIM2#
main45100-16250-W4i199208-199409
3-SPORK URETHANE,EISEN BLUE,TRIM8#
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
main45105-16110i199009-199409
main45105-16120i199009-199208
4-SPORK URETHANE
45105BSPACER(FOR HORN BUTTON CONTACT PLATE)
main90561-04010×4i199208-199212
3-SPORK URETHANE
45112PAD, STEERING WHEEL
main45112-16190-01i199009-199208
BLACK,TRIM2#
main45112-16190-04i199009-199208
GRAYISH BLUE,TRIM8#
main45112-16190-C0i199208-199409
BLACK,TRIM2#
main45112-16190-J0i199208-199409
EISEN BLUE,TRIM8#
main45112-16210-01i199009-199208
4-SPORK URETHANE,BLACK,TRIM2#
main45112-16210-04i199009-199208
4-SPORK URETHANE,GRAYISH BLUE,TRIM8#
main45112-16210-C0i199212-199409
3-SPORK URETHANE,BLACK,TRIM2#
main45112-16210-J0i199212-199409
3-SPORK URETHANE,EISEN BLUE,TRIM8#
45126PLATE, STEERING WHEEL PAD SET
main45126-16040i199009-199409
main45126-16050i199009-199208
4-SPORK URETHANE
45130ASPRING, COMPRESSION(FOR HORN BUTTON)
main90501-09106×4i199208-199212
3-SPORK URETHANE
main90501-10104×4i199009-199409
45142SEAT, HORN BUTTON CONTACT, NO.1
main45142-16060i199009-199409
main45142-16070i199009-199208
4-SPORK URETHANE
45142EPIECE, HORN CONTACT
main45142-12090×3i199009-199409
45180COVER SUB-ASSY, STEERING WHEEL
main45180-16110-01i199009-199208
BLACK,TRIM2#
main45180-16110-04i199009-199208
GRAYISH BLUE,TRIM8#
main45180-16110-C0i199208-199409
BLACK,TRIM2#
main45180-16110-J0i199208-199409
EISEN BLUE,TRIM8#
main45180-16120-01i199009-199208
4-SPORK URETHANE,BLACK,TRIM2#
main45180-16120-04i199009-199208
4-SPORK URETHANE,GRAYISH BLUE,TRIM8#
main45180-16120-C0i199208-199409
3-SPORK URETHANE,BLACK,TRIM2#
main45180-16120-J0i199308-199409
EISEN BLUE,TRIM8#
45201PNUT, STEERING WHEEL SET
main90179-12071i199306-199409
main90179-12086i199009-199306
9015950294
main90159-50294
9016830006
main90168-30006
9016841001
main90168-41001
9054008014
main90540-08014
9351013010
main93510-13010
9356014012
main93560-14012

16 parts on this diagram · 2 diagrams in section

STEERING WHEEL for Toyota TERCEL

This section contains 21 genuine Toyota parts for the STEERING WHEEL system of the Toyota TERCEL. Key components include: WHEEL ASSY, STEERING, PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1, SPACER(FOR HORN BUTTON CONTACT PLATE), PAD, STEERING WHEEL, PLATE, STEERING WHEEL PAD SET.
