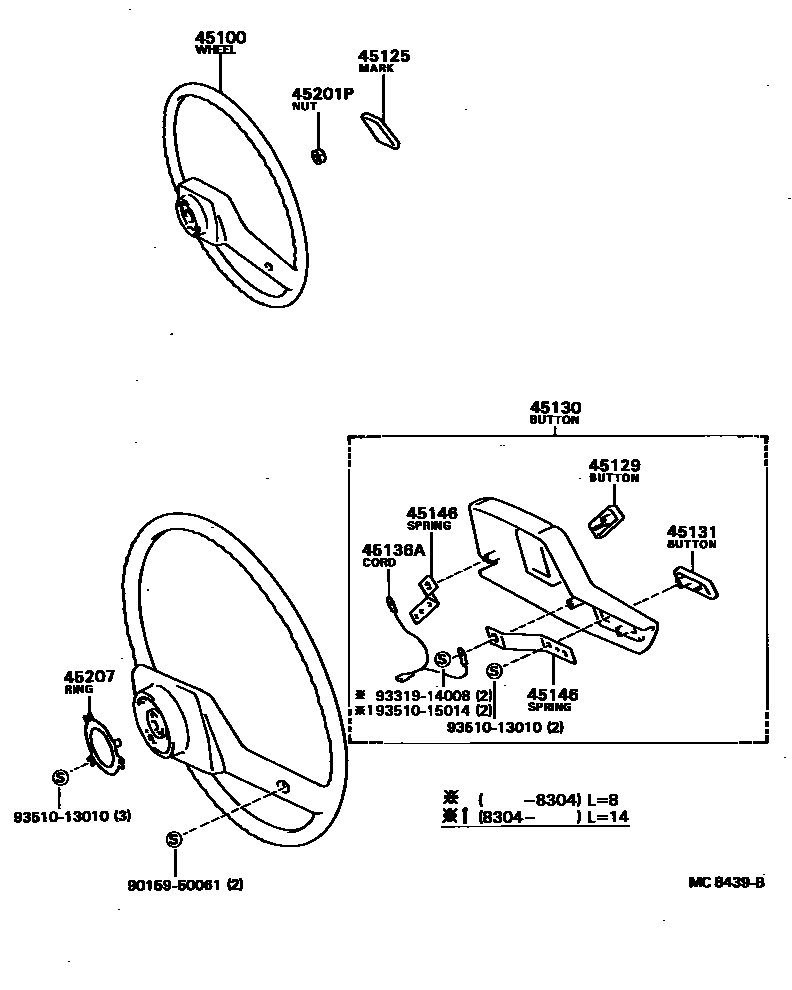

Toyota TERCEL — STEERING WHEEL
45100WHEEL ASSY, STEERING
2-SPOKE,URETHANE,GRAY,GRAY,TRIM1#
2-SPOKE,URETHANE,BEIGE,BEIGE,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
BLACK,NEW BLACK,TRIM2#
BEIGE,DARK BEIGE,TRIM4#
45125MARK, STEERING WHEEL PAD
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
45129BUTTON, HORN, NO.2
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
45130BUTTON ASSY, HORN
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
BLACK,NEW BLACK,TRIM2#
BEIGE,DARK BEIGE,TRIM4#
45131BUTTON, HORN, NO.1
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
45136ACORD(FOR HORN CONTACT RING)
45146SPRING, HORN BUTTON CONTACT
45201PNUT, STEERING WHEEL SET
45207RING, HORN CONTACT
9015950061
main90159-50061
9331914008
main93319-14008
9351013010
main93510-13010
9351015014
main93510-15014
13 parts on this diagram · 4 diagrams in section
STEERING WHEEL for Toyota TERCEL
This section contains 21 genuine Toyota parts for the STEERING WHEEL system of the Toyota TERCEL. Key components include: WHEEL ASSY, STEERING, PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1, MARK, STEERING WHEEL PAD, BUTTON, HORN, NO.2, BUTTON ASSY, HORN.
