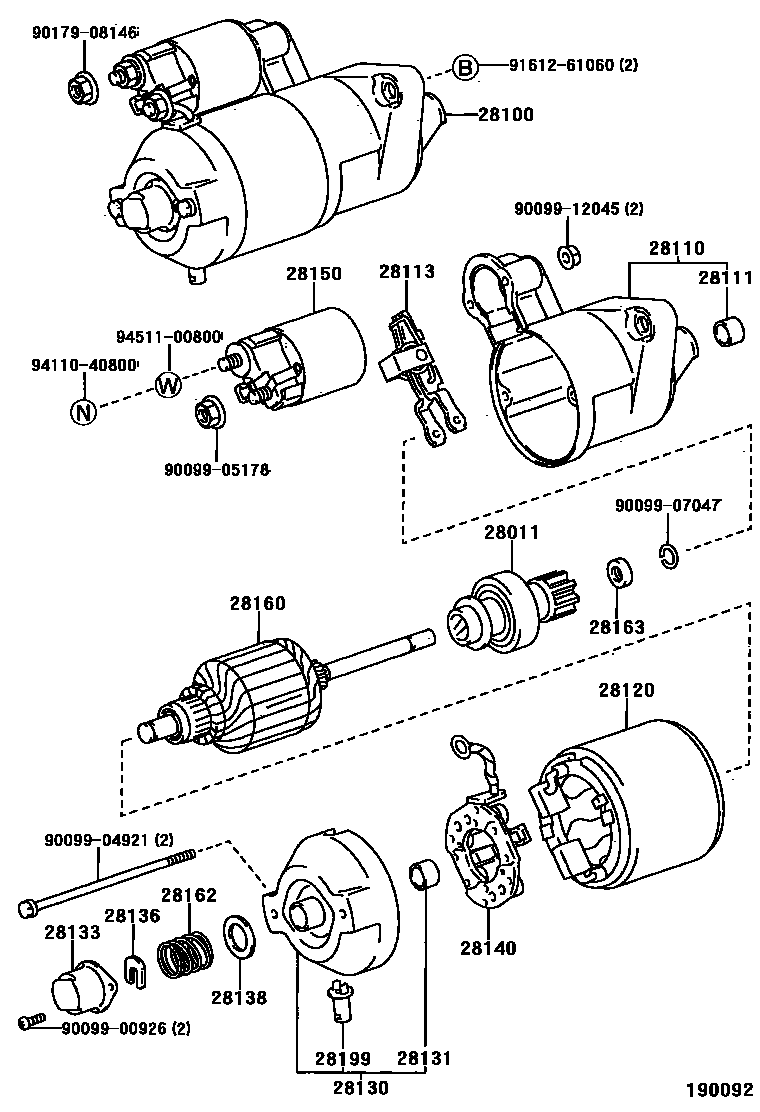

Toyota TERCEL — STARTER

0001 112V 0.8KW 0002 112V 0.8KW 0004 112V 1.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-10030i2E..EL50199409-199712

12V 0.8KW

main28011-26042i2E..EL50..5F..GCC199508-199712

12V 1.0KW

main28011-70020i5EFE..EL53199409-199712

28100STARTER ASSY

main28100-10030i2E..EL50199409-199508

12V 0.8KW

main28100-11010i5EFE..EL53..5F199409-199508

12V 0.8KW

main28100-11020i5EFE..EL53..4FC199409-199508

12V 0.8KW

main28100-11060i2E..EL50199508-199712

12V 0.8KW

main28100-11080i5EFE..EL53..5F199508-199712

12V 0.8KW

main28100-11090i5EFE..EL53..4FC199508-199712

12V 0.8KW

main28100-11100i2E..EL50..5F..GCC199508-199712

12V 1.0KW

main28100-11140i2E,5EFE..EL5#..3FC,5F199712

12V 0.8KW

sub28100-11130

main28100-11150i5EFE..EL53..4FC199712

12V 0.8KW

main28100-11160i2E..EL50..5F..GCC199712

12V 1.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-10030i2E..EL50199409-199712

12V 0.8KW

main28110-10040i2E..EL50..5F..GCC199508-199712

12V 1.0KW

main28110-11010i5EFE..EL53..5F199409-199712

main28110-11020i5EFE..EL53..4FC199409

28111BUSH(FOR STARTER HOUSING)

main90099-10200i2E..EL50199409-199712

28113LEVER, STARTER PINION DRIVE

main28113-15011i2E..EL50199409-199712

main28113-16070i5EFE..EL53199409-199712

28120YOKE ASSY, STARTER

main28120-15010i2E..EL50199409-199712

12V 0.8KW

main28120-26071i2E..EL50..5F..GCC199508-199712

12V 1.0KW

main28120-70020i2E,5EFE..EL5#199712

12V 0.8KW

main28120-70050i2E..EL50..5F..GCC199712

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-10040i2E..EL50..5F..GCC199508-199712

12V 1.0KW

main28130-10050i2E..EL50199409-199712

12V 0.8KW

main28130-11010i5EFE..EL53199409-199712

28131BUSH, COMMUTATOR END FRAME

main90099-10134i2E..EL50199409-199712

28133COVER, BEARING(FOR END FRAME)

main28132-15010i2E..EL50199409-199501

main28132-15011i2E..EL50199501-199712

28136PLATE, STARTER LOCK

main28136-15010i2E..EL50199409-199712

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i2E..EL50199409-199712

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i2E..EL50199409-199712

12V 0.8KW

main28140-26070i2E..EL50..5F..GCC199508-199712

12V 1.0KW

main28140-70020i5EFE..EL53199409-199712

28150SWITCH ASSY, MAGNET STARTER

main28150-10021i5EFE..EL53199409-199508

main28150-11060i2E..EL50199508-199712

12V 0.8KW

main28150-11080i5EFE..EL53199508-199712

main28150-11100i2E..EL50..5F..GCC199508-199712

12V 1.0KW

main28150-16160i2E,5EFE..EL5#199712

main28150-37010i2E..EL50199409-199508

sub28150-37011

28160ARMATURE ASSY, STARTER

main28160-15010i2E..EL50199409-199712

12V 0.8KW

main28160-26071i2E..EL50..5F..GCC199508-199712

12V 1.0KW

main28160-70021i5EFE..EL53199409-199712

main28160-70050i2E..EL50..5F..GCC199712

12V 1.0KW

28162SPRING, STARTER BRAKE

main28162-15010i2E..EL50199409-199712

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i2E..EL50199409-199712

main28163-70020i5EFE..EL53199409-199712

28199COVER, STARTER

main28199-46080i5EFE..EL53199409-199712

main28199-64150i2E..EL50199409-199712

9009900926

main90099-00926

9009904921

main90099-04921

9009905178

main90099-05178

9009907047

main90099-07047

9009912045

main90099-12045

9017908146

main90179-08146

9161261060

main91612-61060

9411040800

main94110-40800

9451100800

main94511-00800

26 parts on this diagram · 3 diagrams in section
