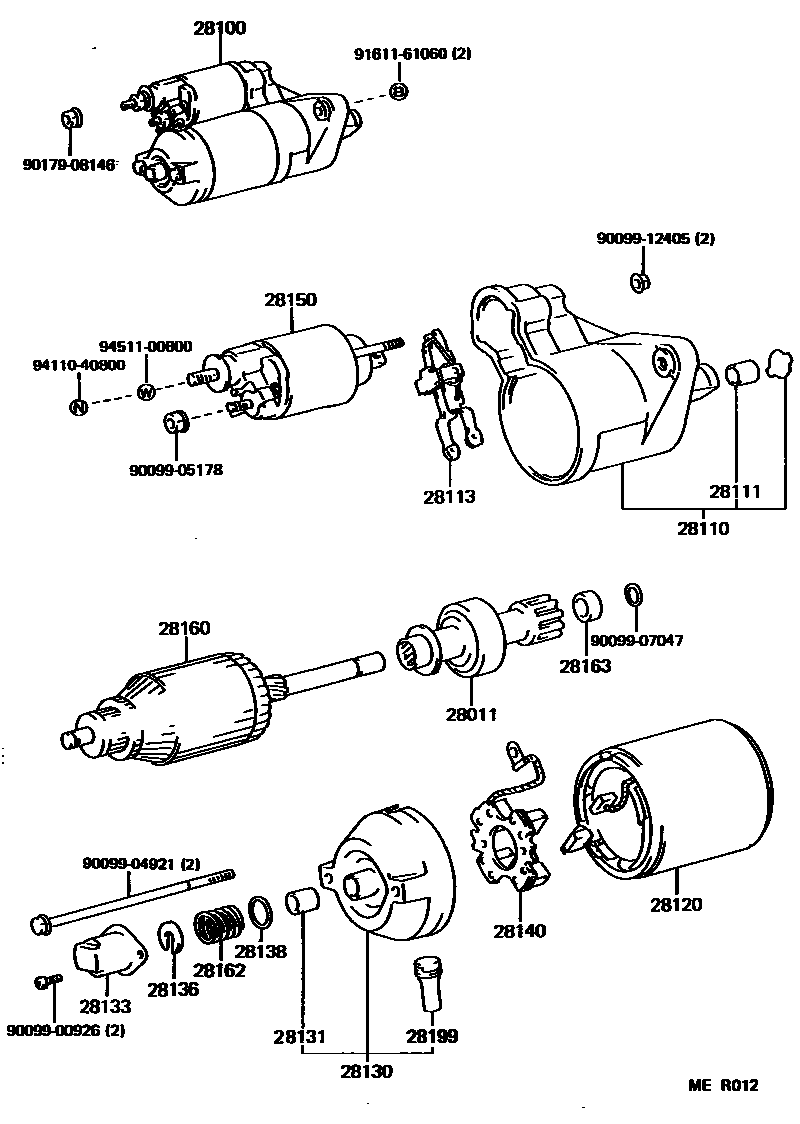

Toyota TERCEL — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-10030i2E..EL40199009-199409

28100STARTER ASSY

main28100-10030i2E..EL40199009-199409

12V 0.8KW

sub28100-11010

28110HOUSING ASSY, STARTER DRIVE

main28110-10030i2E..EL40199009-199409

28111BUSH(FOR STARTER HOUSING)

main28111-51011i2E..EL40199009-199105

main90099-10200i2E..EL40199105-199409

28113LEVER, STARTER PINION DRIVE

main28113-15011i2E..EL40199009-199409

28120YOKE ASSY, STARTER

main28120-15010i2E..EL40199009-199409

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-10030i2E..EL40199009-199107

main28130-10050i2E..EL40199107-199409

28131BUSH, COMMUTATOR END FRAME

main90099-10134i2E..EL40199009-199409

28133COVER, BEARING(FOR END FRAME)

main28132-15010i2E..EL40199009-199409

sub28132-15011

28136PLATE, STARTER LOCK

main28136-15010i2E..EL40199009-199409

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i2E..EL40199009-199409

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i2E..EL40199009-199409

28150SWITCH ASSY, MAGNET STARTER

main28150-37010i2E..EL40199009-199409

sub28150-37011

28160ARMATURE ASSY, STARTER

main28160-15010i2E..EL40199009-199409

28162SPRING, STARTER BRAKE

main28162-15010i2E..EL40199009-199409

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i2E..EL40199009-199409

28199COVER, STARTER

main28199-10030i2E..EL40199009-199107

main28199-64150i2E..EL40199107-199409

9009900926

main90099-00926

9009904921

main90099-04921

9009905178

main90099-05178

9009907047

main90099-07047

9009912405

main90099-12405

9017908146

main90179-08146

9161161060

main91611-61060

9411040800

main94110-40800

9451100800

main94511-00800

26 parts on this diagram · 1 diagram in section
