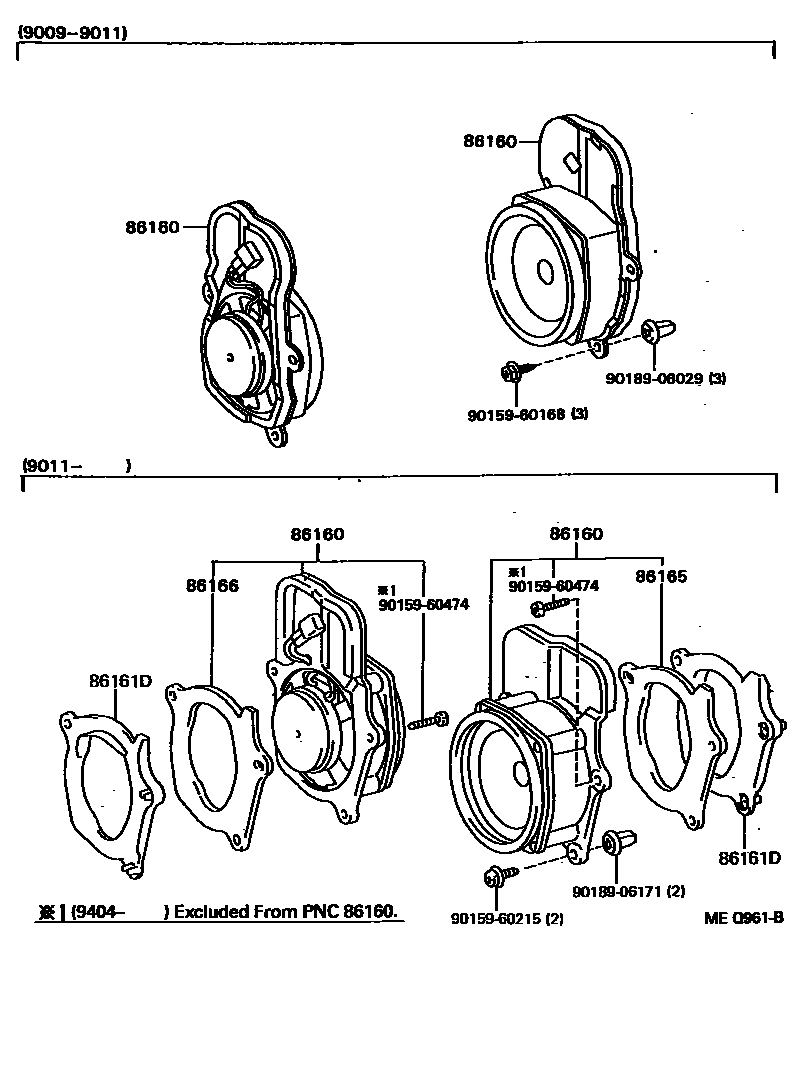

Toyota TERCEL — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-16200iEL40..RHD199009-199011

RH

main86160-16210iEL40..RHD199009-199011

LH

main86160-16410iEL40..GCC199308-199404

RH

sub90159-60474

main86160-16411iEL40..RHD199404-199409

RH

main86160-16420iEL40..RHD199011-199404

LH

sub90159-60474

main86160-16421iEL40..RHD199404-199409

LH

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-16010iEL40199011-199409

RH

main86161-16020iEL40199011-199409

LH

86165SEAL, SPEAKER, NO.1

main86165-16020iEL40199011-199409

86166SEAL, SPEAKER, NO.2

main86166-16010iEL40199011-199409

9015960168

main90159-60168

9015960215

main90159-60215

9015960474

main90159-60474

9018906029

main90189-06029

9018906171

main90189-06171

9 parts on this diagram · 1 diagram in section
