Toyota TERCEL — SIDE MOULDING

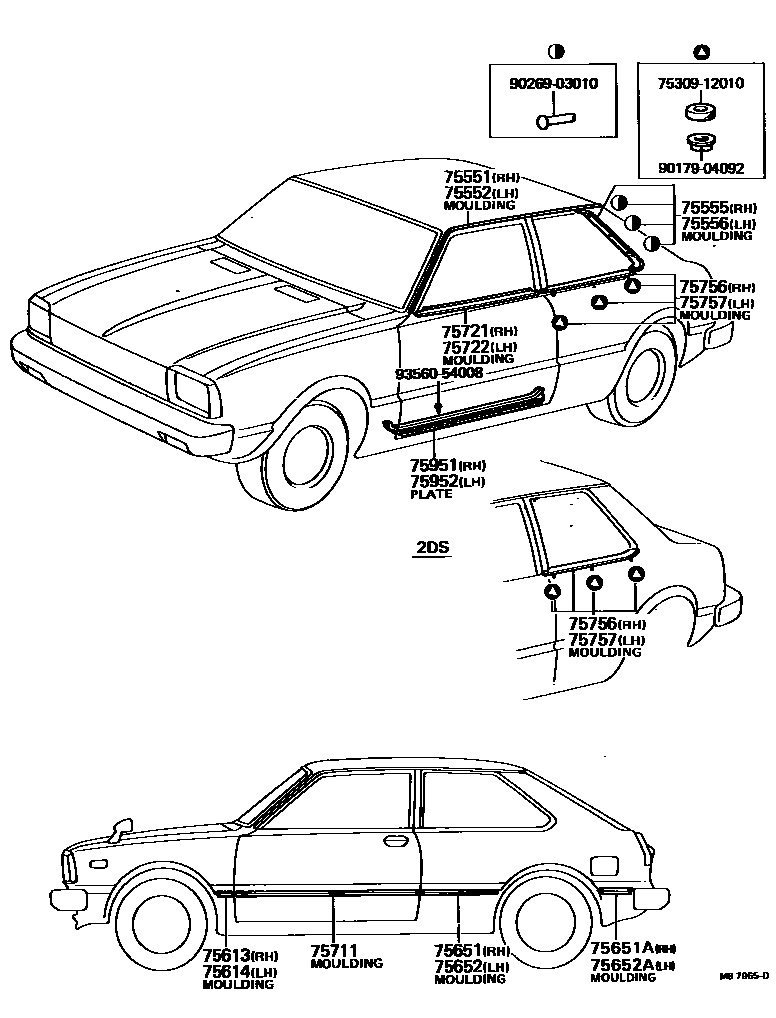

Parts diagram
75551MOULDING, ROOF DRIP SIDE FINISH, RH
main75551-16010i197901-198204
main75551-16020i197901-198204
BLACK PAINTED
main75551-16030i197901-198204
WEST GERMANY SPEC
75552MOULDING, ROOF DRIP SIDE FINISH, LH
main75552-16010i197901-198204
main75552-16020i197901-198204
BLACK PAINTED
main75552-16030i197901-198204
WEST GERMANY SPEC
75555MOULDING, ROOF DRIP SIDE FINISH, REAR RH
main75608-19015i197901-198204
main75608-19025i197901-198204
BLACK PAINTED
75556MOULDING, ROOF DRIP SIDE FINISH, REAR LH
main75609-19015i197901-198204
main75609-19025i197901-198204
BLACK PAINTED
75613MOULDING, FRONT FENDER, OUTSIDE RH
main75611-16010i197901-198008
WEST GERMANY SPEC
main75611-16030i198004-198005
HOLLAND SPEC
main75611-16030i197901-198008
main75611-16050i198008-198108
main75611-16050i198108-198204
WEST GERMANY SPEC
main75611-16150i198108-198204
75614MOULDING, FRONT FENDER, OUTSIDE LH
main75612-16010i197901-198008
WEST GERMANY SPEC
main75612-16020i198004-198005
HOLLAND SPEC
main75612-16020i197901-198008
main75612-16040i198008-198108
main75612-16040i198108-198204
WEST GERMANY SPEC
main75612-16140i198108-198204
75651MOULDING, QUARTER, OUTSIDE RH
main75651-16010i197901-198008
WEST GERMANY SPEC
main75651-16040i198004-198005
HOLLAND SPEC
main75651-16040i197901-198008
main75651-16060i198008-198108
main75651-16060i198108-198204
WEST GERMANY SPEC
main75651-16130i198108-198204
75651AMOULDING, QUARTER OUTSIDE, REAR RH, NO.1
main75653-16020i198008-198108
main75653-16020i198108-198204
WEST GERMANY SPEC
main75653-16120i198108-198204
75652MOULDING, QUARTER, OUTSIDE LH
main75652-16010i197901-198008
WEST GERMANY SPEC
main75652-16020i198004-198005
HOLLAND SPEC
main75652-16020i197901-198008
main75652-16040i198008-198108
main75652-16040i198108-198204
WEST GERMANY SPEC
main75652-16110i198108-198204
75652AMOULDING, QUARTER OUTSIDE, REAR LH, NO.1
main75654-16020i198008-198108
main75654-16020i198108-198204
WEST GERMANY SPEC
main75654-16120i198108-198204
75711MOULDING, FRONT DOOR OUTSIDE, NO.1
main75731-16010i197901-198008
WEST GERMANY SPEC,RH
main75731-16020i197901-198008
WEST GERMANY SPEC,RH
main75731-16050i197901-198008
RH
main75731-16050i198004-198005
HOLLAND SPEC
main75731-16060i197901-198008
RH
main75731-16090i198108-198204
WEST GERMANY SPEC,RH
main75731-16090i198008-198108
RH
main75731-16100i198108-198204
WEST GERMANY SPEC,RH
main75731-16100i198008-198108
RH
main75731-16230i198108-198204
RH
main75731-16240i198108-198204
RH
main75732-16010i197901-198008
WEST GERMANY SPEC,LH
main75732-16020i197901-198008
WEST GERMANY SPEC,LH
main75732-16050i198004-198005
HOLLAND SPEC
main75732-16050i197901-198008
LH
main75732-16060i197901-198008
LH
main75732-16090i198008-198108
LH
main75732-16090i198108-198204
WEST GERMANY SPEC,LH
main75732-16100i198008-198108
LH
main75732-16100i198108-198204
WEST GERMANY SPEC,LH
main75732-16230i198108-198204
LH
main75732-16240i198108-198204
LH
75721MOULDING, FRONT DOOR BELT, RH
main75710-16010i197901-198204
main75710-16020i197901-198204
main75710-16030i197901-198204
BLACK PAINTED
75722MOULDING, FRONT DOOR BELT, LH
main75720-16010i197901-198204
main75720-16020i197901-198204
main75720-16030i197901-198204
BLACK PAINTED
75756MOULDING, QUARTER BELT, RH
main75067-19015i197901-198204
main75067-19025i197901-198204
BLACK PAINTED
main75660-19125i197901-198204
75757MOULDING, QUARTER BELT, LH
main75068-19015i197901-198204
main75068-19025i197901-198204
BLACK PAINTED
main75670-19125i197901-198204
75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH
main67913-16010-01i197901-198204
BLACK,BLACK,TRIM2#
main67913-16010-04i197901-198204
BLUE,BLUE,TRIM8#
main67913-16010-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main67913-16010-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
main67913-16020-01i197901-198204
BLACK,BLACK,TRIM2#
main67913-16020-04i197901-198204
BLUE,BLUE,TRIM8#
main67913-16020-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main67913-16020-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67914-16010-01i197901-198204
BLACK,BLACK,TRIM2#
main67914-16010-04i197901-198204
BLUE,BLUE,TRIM8#
main67914-16010-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main67914-16010-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
main67914-16020-01i197901-198204
BLACK,BLACK,TRIM2#
main67914-16020-04i197901-198204
BLUE,BLUE,TRIM8#
main67914-16020-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main67914-16020-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
7530912010
main75309-12010
9017904092
main90179-04092
9026903010
main90269-03010
9356054008
main93560-54008

21 parts on this diagram · 2 diagrams in section

SIDE MOULDING for Toyota TERCEL

This section contains 27 genuine Toyota parts for the SIDE MOULDING system of the Toyota TERCEL. Key components include: MOULDING, ROOF DRIP SIDE FINISH, RH, MOULDING, ROOF DRIP SIDE FINISH, LH, MOULDING, ROOF DRIP SIDE FINISH, REAR RH, MOULDING, ROOF DRIP SIDE FINISH, REAR LH, MOULDING, FRONT FENDER, OUTSIDE RH.
