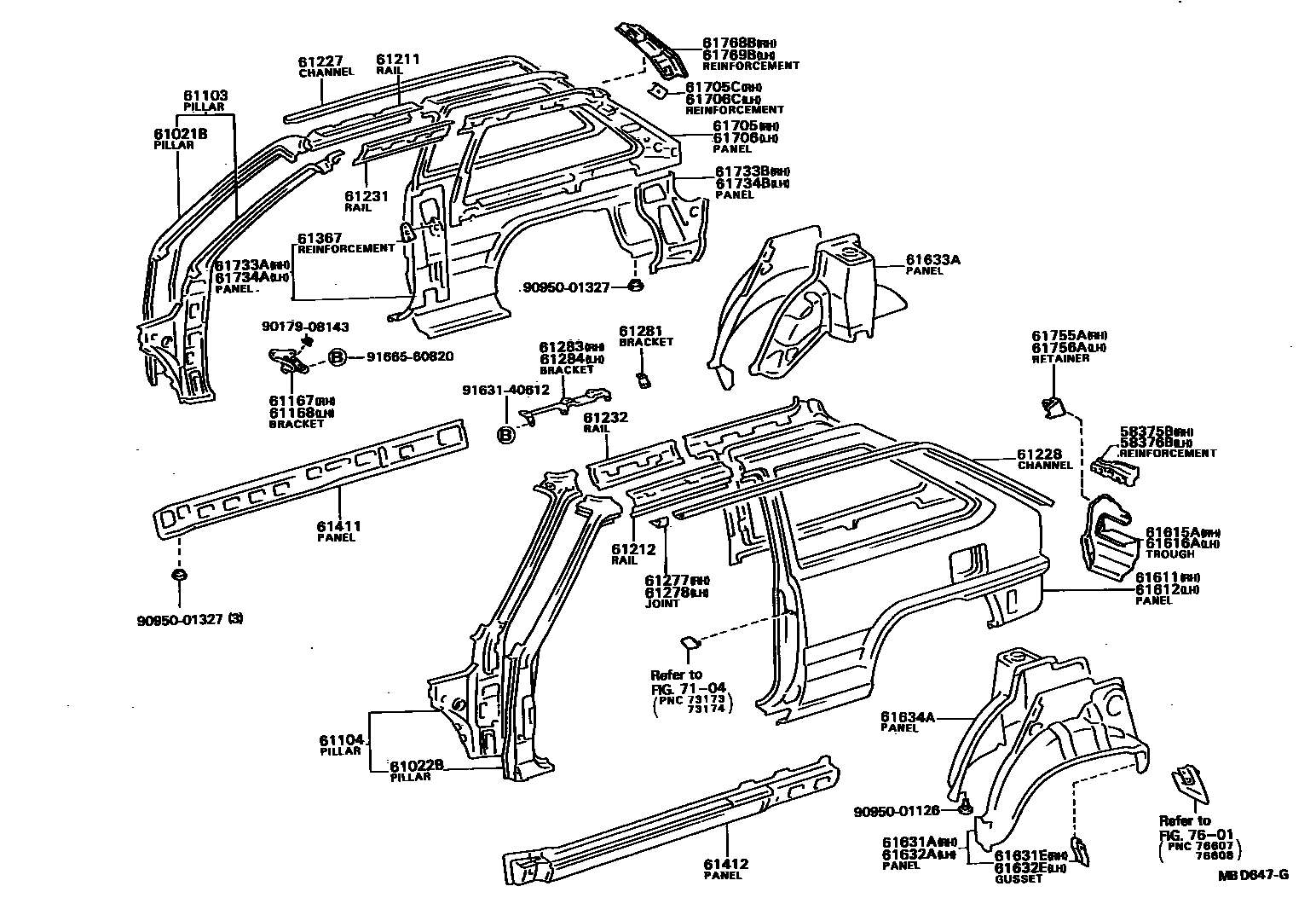

Toyota TERCEL — SIDE MEMBER
58375BREINFORCEMENT, BODY LOWER BACK PANEL, RH
58376BREINFORCEMENT, BODY LOWER BACK PANEL, LH
61021BPILLAR SUB-ASSY, FRONT BODY, UPPER RH
61022BPILLAR SUB-ASSY, FRONT BODY, UPPER LH
61103PILLAR SUB-ASSY, FRONT BODY, RH
W/SUN ROOF
61167BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH
61168BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61227CHANNEL, ROOF DRIP SIDE, REAR RH
61228CHANNEL, ROOF DRIP SIDE, REAR LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61277JOINT, ROOF DRIP CHANNEL, FRONT RH
61278JOINT, ROOF DRIP CHANNEL, FRONT LH
61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
EUROPE CAMPAIGN
61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
EUROPE CAMPAIGN
61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
EUROPE CAMPAIGN
61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61615ATROUGH, BACK DOOR OPENING, RH
61616ATROUGH, BACK DOOR OPENING, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
NEW ZEALAND SPEC
61631EGUSSET, QUARTER WHEEL HOUSE, REAR RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61632EGUSSET, QUARTER WHEEL HOUSE, REAR LH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
61705CREINFORCEMENT, SEAT BELT ANCHORAGE, REAR RH
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
61706CREINFORCEMENT, SEAT BELT ANCHORAGE, REAR LH
61733APANEL, ROOF SIDE, INNER FRONT RH
61733BPANEL, ROOF SIDE, INNER REAR RH
sub61735-16030
61734APANEL, ROOF SIDE, INNER FRONT LH
61734BPANEL, ROOF SIDE, INNER REAR LH
sub61736-16030
61755ARETAINER, DECK SIDE TRIM, UPPER RH
61756ARETAINER, DECK SIDE TRIM, UPPER LH
61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH
7104
7601
9017908143
main90179-08143
9095001126
main90950-01126
9095001327
main90950-01327
9163140612
main91631-40612
9166560820
main91665-60820
51 parts on this diagram · 3 diagrams in section
