Toyota TERCEL — SHIFT LEVER & RETAINER

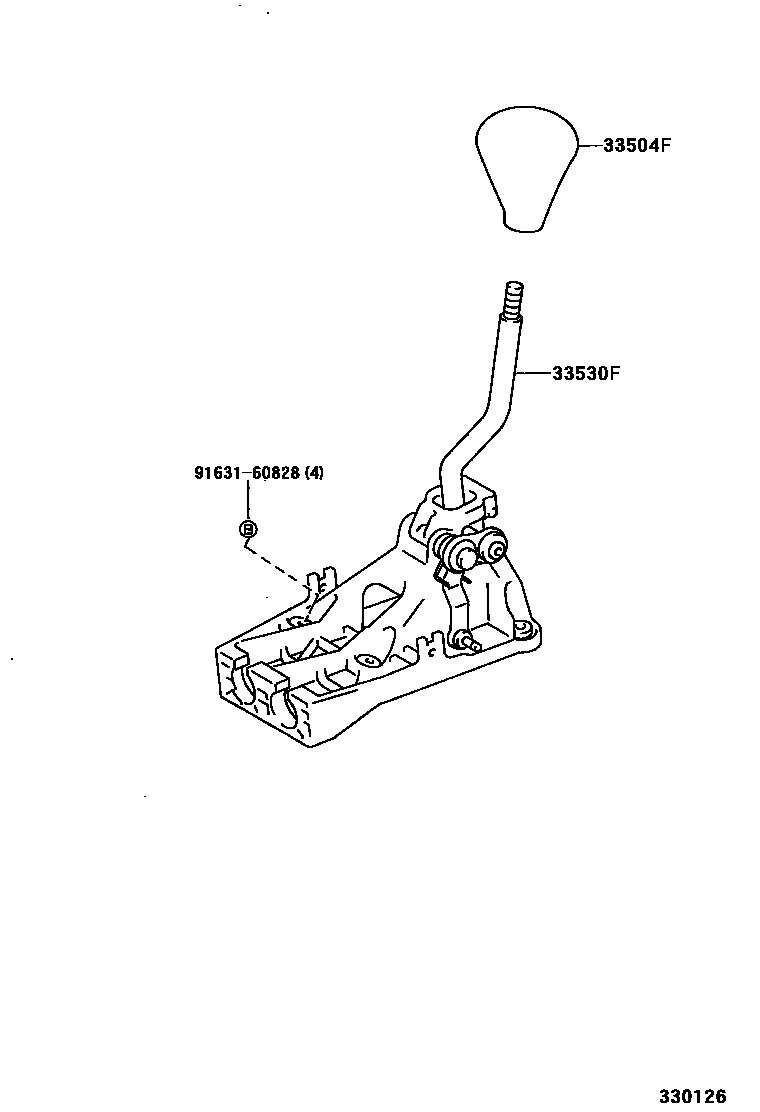

Parts diagram

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-24010-B1i199508

DARK SMOKE GRAY,TRIM1#

main33504-24010-B4i199409-199508

BLUISH GRAY,TRIM1#

main33504-24010-E3i199409-199712

OAK,TRIM4#

main33504-24010-E8i199712

SANDAL WOOD,TRIM4#

main33542-12171-B0i199508-199608

SHADOW GRAY,TRIM1#

main33542-12171-B1i199409-199508

BLUISH GRAY,TRIM1#

main33542-12171-E0i199409-199608

OAK,TRIM4#

main33542-12172-B0i199608

SHADOW GRAY,TRIM1#

main33542-12172-E0i199608-199712

OAK,TRIM4#

main33542-12172-E1i199712

SANDAL WOOD,TRIM4#

main33542-16060-B0i199409-199508

BLUISH GRAY,TRIM1#

main33542-16060-B1i199508

SHADOW GRAY,TRIM1#

main33542-16060-E0i199409-199712

OAK,TRIM4#

main33542-16060-E1i199712

SANDAL WOOD,TRIM4#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-16140i199409-199608

main33530-16150i199608

9163160828

main91631-60828

3 parts on this diagram · 6 diagrams in section
