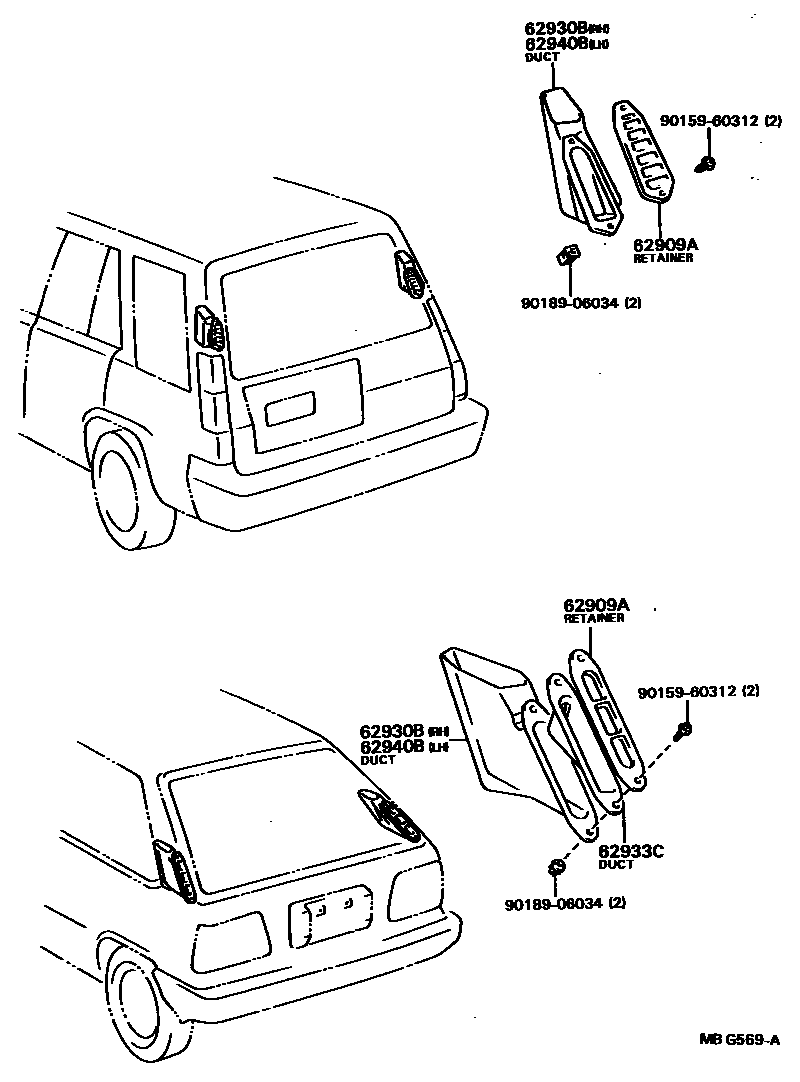

Toyota TERCEL — ROOF SIDE VENTILATOR

62909ARETAINER SUB-ASSY, QUARTER VENTILATION LOUVER

main62905-16050i198208-198801

main62906-16020i198208-198801

main62955-16030×2i198205-198408

62930BDUCT ASSY, QUARTER VENT, RH

main62930-16010i198208-198801

main62931-16010i198205-198408

62933CDUCT, QUARTER VENT, INNER

main62933-16020×2i198205-198408

62940BDUCT ASSY, QUARTER VENT, LH

main62932-16010i198205-198408

main62940-16010i198208-198801

9015960312

main90159-60312

9018906034

main90189-06034

6 parts on this diagram · 1 diagram in section

ROOF SIDE VENTILATOR for Toyota TERCEL

This section contains 6 genuine Toyota parts for the ROOF SIDE VENTILATOR system of the Toyota TERCEL. Key components include: RETAINER SUB-ASSY, QUARTER VENTILATION LOUVER, DUCT ASSY, QUARTER VENT, RH, DUCT, QUARTER VENT, INNER, DUCT ASSY, QUARTER VENT, LH.
