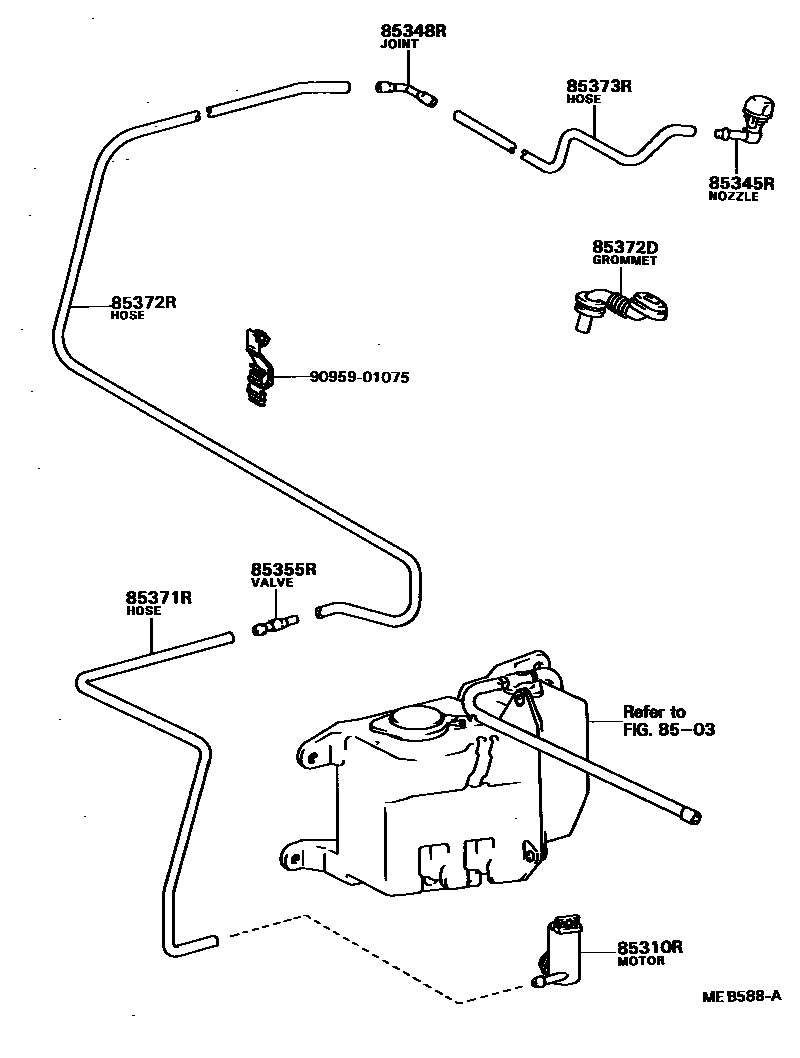

Toyota TERCEL — REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85310RMOTOR ASSY, REAR WASHER

main85310-16030i198205-198408

main85310-22080i198408-198801

85345RNOZZLE, REAR WASHER

main85035-16040i198301-198408

main85035-16050i198301-198408

main85341-16080i198301-198408

main85341-16090i198301-198408

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-20080i198205-198801

85355RVALVE, REAR WASHER HOSE

main85031-12250i198708-198801

main85031-14080i198208-198708

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299i198205-198208

L=1000(*H,L=400)

main90446-06013i198208-198801

L=1000

85372DGROMMET, REAR WASHER HOSE

main85372-14020i198205-198801

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33053i198311-198408

L=3120

main90099-33054i198311-198603

L=3720

main90099-33177i198603-198801

L=3670

main90099-33391i198208-198311

L=3200

main90099-33406i198208-198311

L=3850

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299i198205-198801

L=1000(*H,L=400)

9095901075

main90959-01075

10 parts on this diagram · 1 diagram in section

REAR WASHER for Toyota TERCEL

This section contains 10 genuine Toyota parts for the REAR WASHER system of the Toyota TERCEL. Key components include: WINDSHIELD WASHER, MOTOR ASSY, REAR WASHER, NOZZLE, REAR WASHER, JOINT, REAR WASHER HOSE, NO.1, VALVE, REAR WASHER HOSE.
