Toyota TERCEL — REAR WASHER

85310RMOTOR ASSY, REAR WASHER

main85310-20100i197901-198204

85330RJAR ASSY, REAR WASHER

main85330-16010i197901-198204

85345RNOZZLE, REAR WASHER

main85035-16010i197901-198204

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-20070i197901-198204

L TYPE

main85355-87201×2i197901-198204

STRAIGHT TYPE

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33293i197901-197908

L=240

main90099-33299i198008-198204

L=1450(*H,L=240)

main90099-33317i197908-198008

L=240

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33271i197901-198008

L=1700

main90446-06006i198008-198204

L=2000,L=2000

8534216010HOLDER, WASHER NOZZLE

main85342-16010

7 parts on this diagram · 1 diagram in section

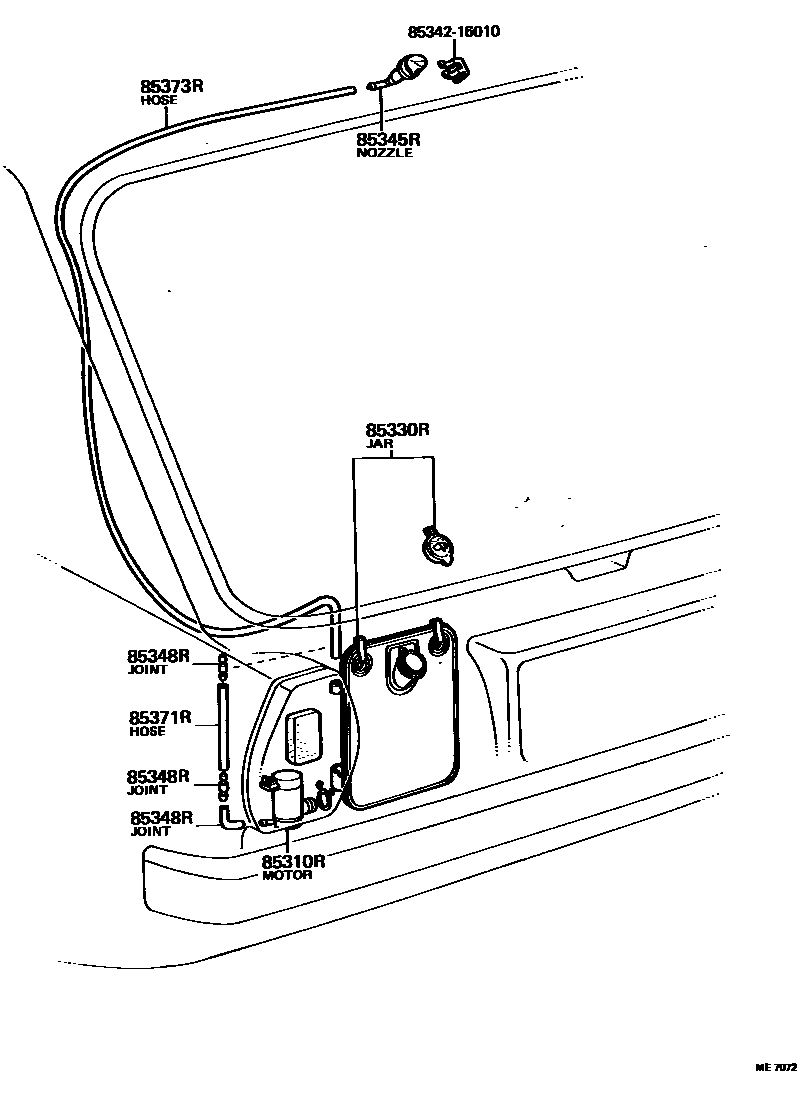

REAR WASHER for Toyota TERCEL

This section contains 7 genuine Toyota parts for the REAR WASHER system of the Toyota TERCEL. Key components include: MOTOR ASSY, REAR WASHER, JAR ASSY, REAR WASHER, NOZZLE, REAR WASHER, JOINT, REAR WASHER HOSE, NO.1, HOSE, REAR WASHER (FROM MOTOR TO JOINT).
