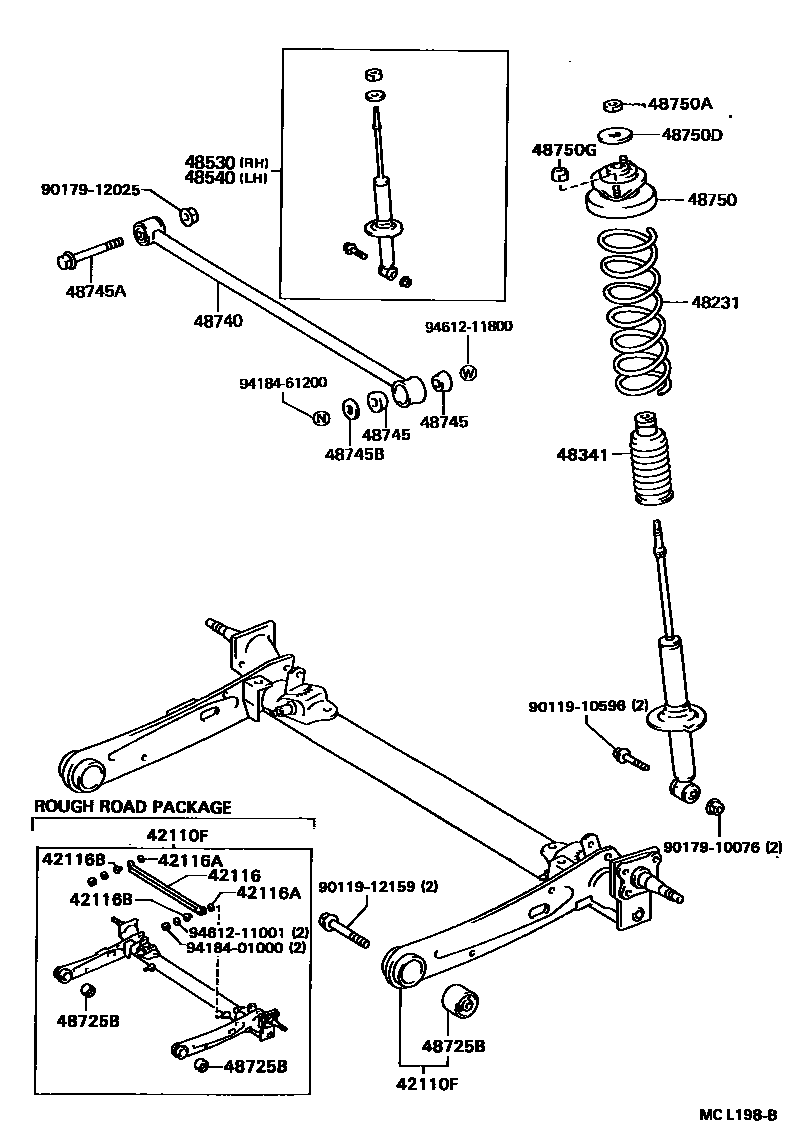

Toyota TERCEL — REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
ROUGH ROAD PACKAGE
42116COVER, REAR AXLE BEAM
ROUGH ROAD PACKAGE
42116ACUSHION, NO.1 (FOR REAR AXLE BEAM COVER)
ROUGH ROAD PACKAGE
42116BCUSHION, NO.2 (FOR REAR AXLE BEAM COVER)
ROUGH ROAD PACKAGE,RH
ROUGH ROAD PACKAGE,LH
48231SPRING, COIL, REAR
48341BUMPER, REAR SPRING
48530ABSORBER ASSY, SHOCK, REAR RH
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
48540ABSORBER ASSY, SHOCK, REAR LH
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
48725BBUSH, REAR SUSPENSION ARM, NO.1
48740ROD ASSY, REAR LATERAL CONTROL
48745BUSH, LATERAL CONTROL ROD
48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)
48745BWASHER, LATERAL CONTROL ROD CUSHION
48750SUPPORT ASSY, REAR SUSPENSION
ROUGH ROAD PACKAGE (RANK S)
48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48750DRETAINER(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48750GNUT(FOR REAR SUSPENSION SUPPORT)
9011910596
main90119-10596
9011912159
main90119-12159
9017910076
main90179-10076
9017912025
main90179-12025
9418401000
main94184-01000
9418461200
main94184-61200
9461211001
main94612-11001
9461211800
main94612-11800
25 parts on this diagram · 1 diagram in section
REAR SPRING & SHOCK ABSORBER for Toyota TERCEL
This section contains 25 genuine Toyota parts for the REAR SPRING & SHOCK ABSORBER system of the Toyota TERCEL. Key components include: BEAM ASSY, REAR AXLE, COVER, REAR AXLE BEAM, CUSHION, NO.1 (FOR REAR AXLE BEAM COVER), CUSHION, NO.2 (FOR REAR AXLE BEAM COVER), SPRING, COIL, REAR.
