Toyota TERCEL — REAR COMBINATION LAMP

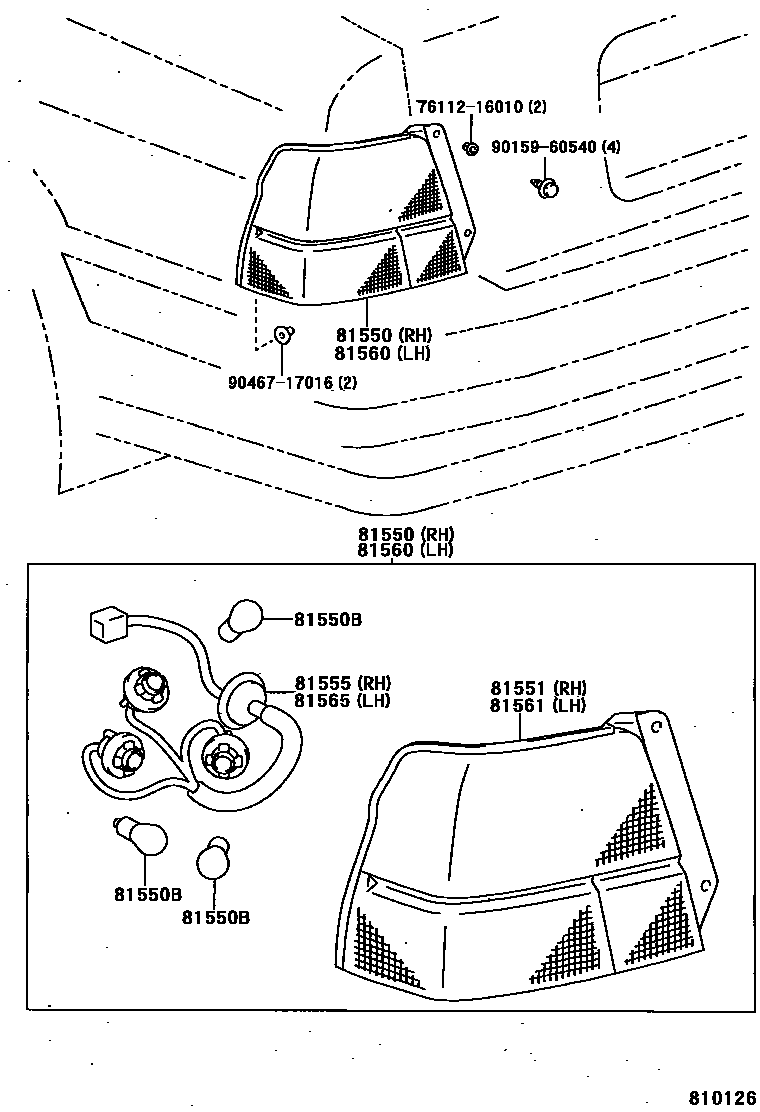

Parts diagram
81550LAMP ASSY, REAR COMBINATION, RH
main81550-16480i199409-199712
main81550-16570i199712
81550BBULB(FOR REAR COMBINATION LAMP)
main90981-13043×2i199712
12V 21W
main90981-13044×2i199712
12V 21/5W
main90981-15009×2i199712
12V 21W,AMBER
main99132-11210×4i199409-199712
12V 21W
main99132-21210×2i199409-199712
12V 21/5W
81551LENS, REAR COMBINATION LAMP, RH
main81551-16480i199409-199712
main81551-16570i199712
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
main81555-16480i199409-199712
main81555-16580i199712
81560LAMP ASSY, REAR COMBINATION, LH
main81560-16520i199409-199712
main81560-16610i199712
81561LENS, REAR COMBINATION LAMP, LH
main81561-16520i199409-199712
main81561-16610i199712
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
main81555-16480i199409-199712
main81555-16580i199712
7611216010
main76112-16010
9015960540
main90159-60540
9046717016
main90467-17016

10 parts on this diagram · 1 diagram in section

REAR COMBINATION LAMP for Toyota TERCEL

This section contains 10 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota TERCEL. Key components include: LAMP ASSY, REAR COMBINATION, RH, BULB(FOR REAR COMBINATION LAMP), LENS, REAR COMBINATION LAMP, RH, SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH, LAMP ASSY, REAR COMBINATION, LH.
