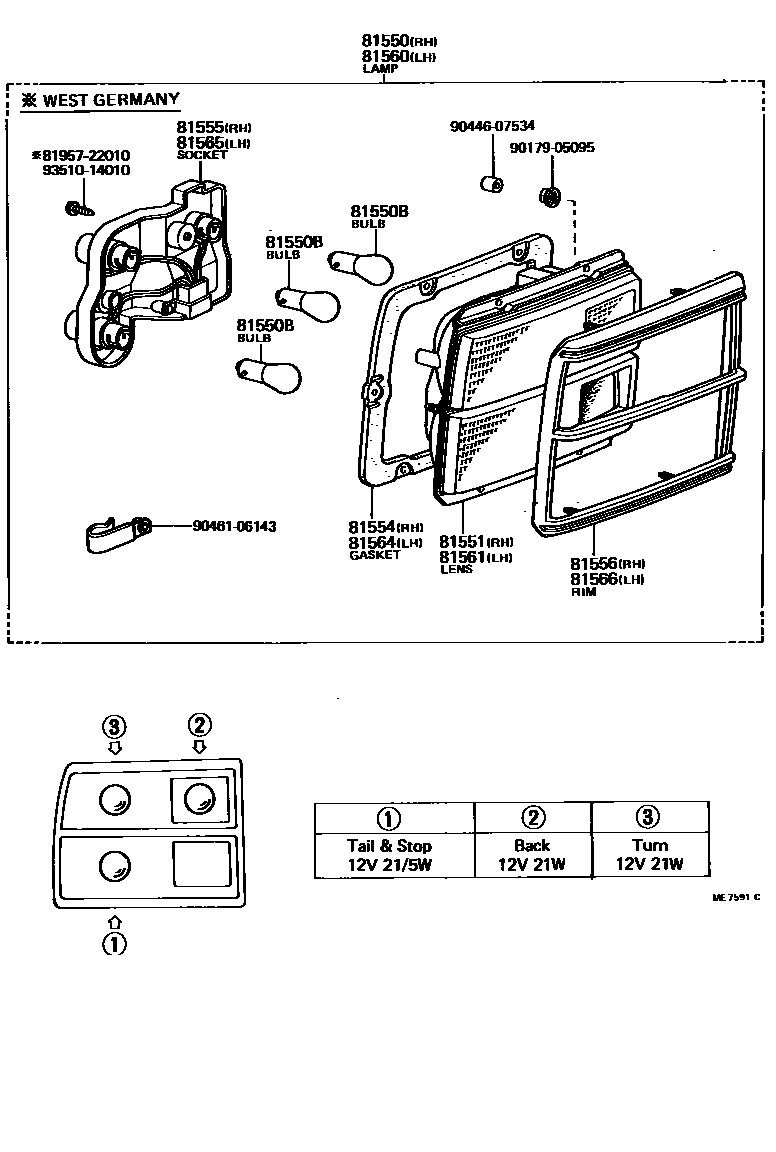

Toyota TERCEL — REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
WEST GERMANY SPEC
81550BBULB(FOR REAR COMBINATION LAMP)
12V 21W,12V 21W
12V 21/5W,12V 21/5W
81551LENS, REAR COMBINATION LAMP, RH
AMBER-RED-CLEAR
AMBER-RED-CLEAR
AMBER-RED-CLEAR
81554GASKET, REAR COMBINATION LAMP BODY, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
WEST GERMANY SPEC
81556RIM, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
WEST GERMANY PEC
81561LENS, REAR COMBINATION LAMP, LH
AMBER-RED-CLEAR
AMBER-RED-CLEAR
AMBER-RED-CLEAR
81564GASKET, REAR COMBINATION LAMP BODY, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
WEST GERMANY SPEC
81566RIM, REAR COMBINATION LAMP, LH
8195722010
main81957-22010
9017905095
main90179-05095
9044607534
main90446-07534
9046106143
main90461-06143
9351014010
main93510-14010
16 parts on this diagram · 3 diagrams in section
REAR COMBINATION LAMP for Toyota TERCEL
This section contains 18 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota TERCEL. Key components include: LAMP ASSY, REAR COMBINATION, RH, BULB(FOR REAR COMBINATION LAMP), LENS, REAR COMBINATION LAMP, RH, GASKET, REAR COMBINATION LAMP BODY, RH, SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH.
