Toyota TERCEL — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

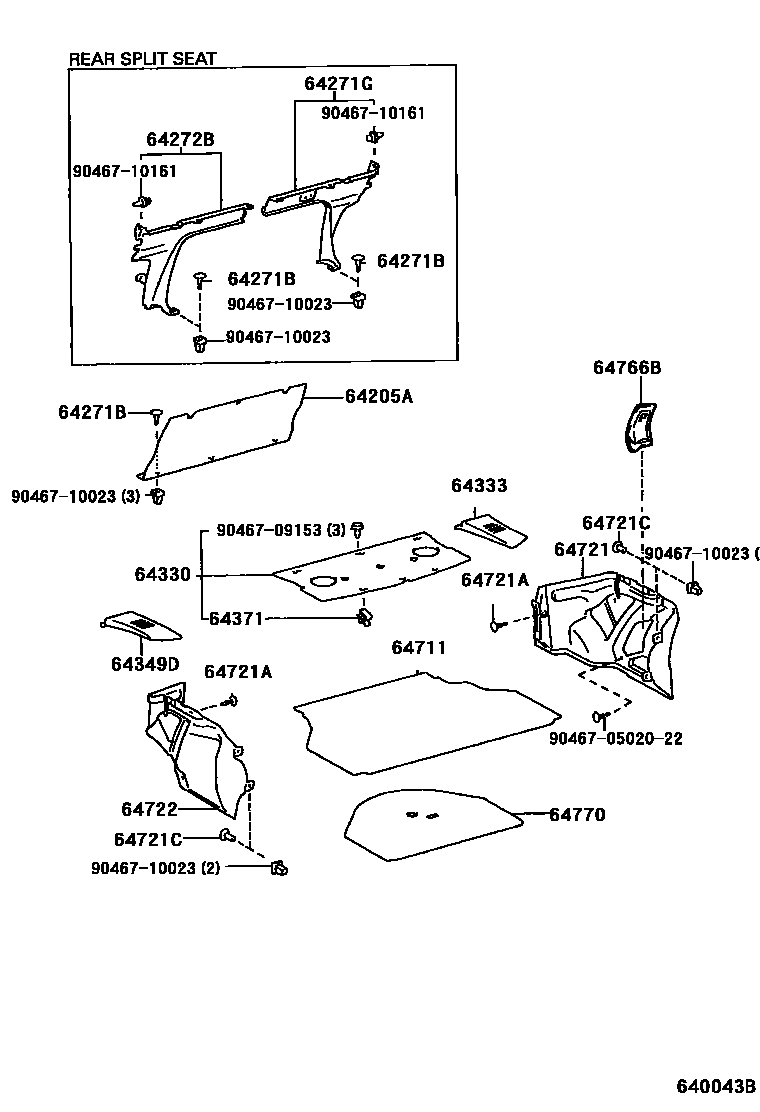

Parts diagram
64205ACOVER SUB-ASSY, ROOM PARTITION
main64275-16030-C0i199409
BLACK,TRIM1#,4#
64271BCLIP(FOR ROOM PARTITION BOARD)
main90467-07115-C0×2i199409
BLACK,TRIM1#,4#; W(REAR SPLIT SEAT),BLACK,TRIM1#,4#
64271GBOARD, ROOM PARTITION, RH
main64271-16060-C0i199409-199712
BLACK,TRIM1#,4#
main64271-16061-C0i199712
BLACK,TRIM1#,4#
64272BBOARD, ROOM PARTITION, LH
main64272-16060-C0i199409-199712
BLACK,TRIM1#,4#
main64272-16061-C0i199712
BLACK,TRIM1#,4#
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-16560-B0i199409-199608
BLUISH GRAY,TRIM1#
main64330-16560-E0i199409-199608
OAK,TRIM4#
main64330-16580-B0i199409-199608
W(HIGH MOUNT STOP LAMP),BLUISH GRAY,TRIM1#
main64330-16580-E0i199409-199608
W(HIGH MOUNT STOP LAMP),OAK,TRIM4#
main64330-16810-B0i199608
SHADOW GRAY,TRIM1#
main64330-16810-E0i199608
OAK,TRIM4#
main64330-16830-B0i199608-199712
W(HIGH MOUNT STOP LAMP),SHADOW GRAY,TRIM1#
main64330-16830-E0i199712
W(HIGH MOUNT STOP LAMP),OAK,TRIM4#
64333COVER, PACKAGE TRAY TRIM, SIDE
main64333-16070-B1i199608
SHADOW GRAY,TRIM1#
main64333-16070-E0i199409
OAK,TRIM4#
main64333-16080-B1i199608
W(HIGH MOUNT STOP LAMP),SHADOW GRAY,TRIM1#
main64333-16080-E0i199409
W(HIGH MOUNT STOP LAMP),OAK,TRIM4#
64349DCOVER, PACKAGE TRAY TRIM SIDE, LH
main64349-16050-B1i199608
SHADOW GRAY,TRIM1#
main64349-16050-E0i199409
OAK,TRIM4#
main64349-16060-B1i199608
W(HIGH MOUNT STOP LAMP),SHADOW GRAY,TRIM1#
main64349-16060-E0i199409
W(HIGH MOUNT STOP LAMP),OAK,TRIM4#
64371RETAINER, PACKAGE TRAY TRIM
main64371-16010×3i199409
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-16130-C0i199409-199608
BLACK,TRIM1#,4#
main64711-16190-C0i199608
BLACK,TRIM1#,4#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64721-16070-C0i199409-199510
BLACK,TRIM1#,4#
main64721-16071-C0i199510-199608
BLACK,TRIM1#,4#
main64721-16100-C0i199608
BLACK,TRIM1#,4#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-05096-22×8i199409-199608
BLACK,TRIM1#,4#
64721CCLIP(LUGGAGE COMPARTMENT)
main90467-14041-C0×4i199409
BLACK,TRIM1#,4#
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
main64722-16070-C0i199409-199510
BLACK,TRIM1#,4#
main64722-16071-C0i199510-199608
BLACK,TRIM1#,4#
main64722-16120-C0i199608
BLACK,TRIM1#,4#
64766BCOVER, QUARTER TRIM JACK
main64766-16050-C0i199608-199907
BLACK,TRIM1#,4#
64770COVER ASSY, SPARE WHEEL
main64770-16240i199409
904670502022
main90467-0502022
9046709153
main90467-09153
9046710023
main90467-10023
9046710161
main90467-10161

19 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota TERCEL

This section contains 19 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota TERCEL. Key components include: COVER SUB-ASSY, ROOM PARTITION, CLIP(FOR ROOM PARTITION BOARD), BOARD, ROOM PARTITION, RH, BOARD, ROOM PARTITION, LH, PANEL ASSY, PACKAGE TRAY TRIM.
