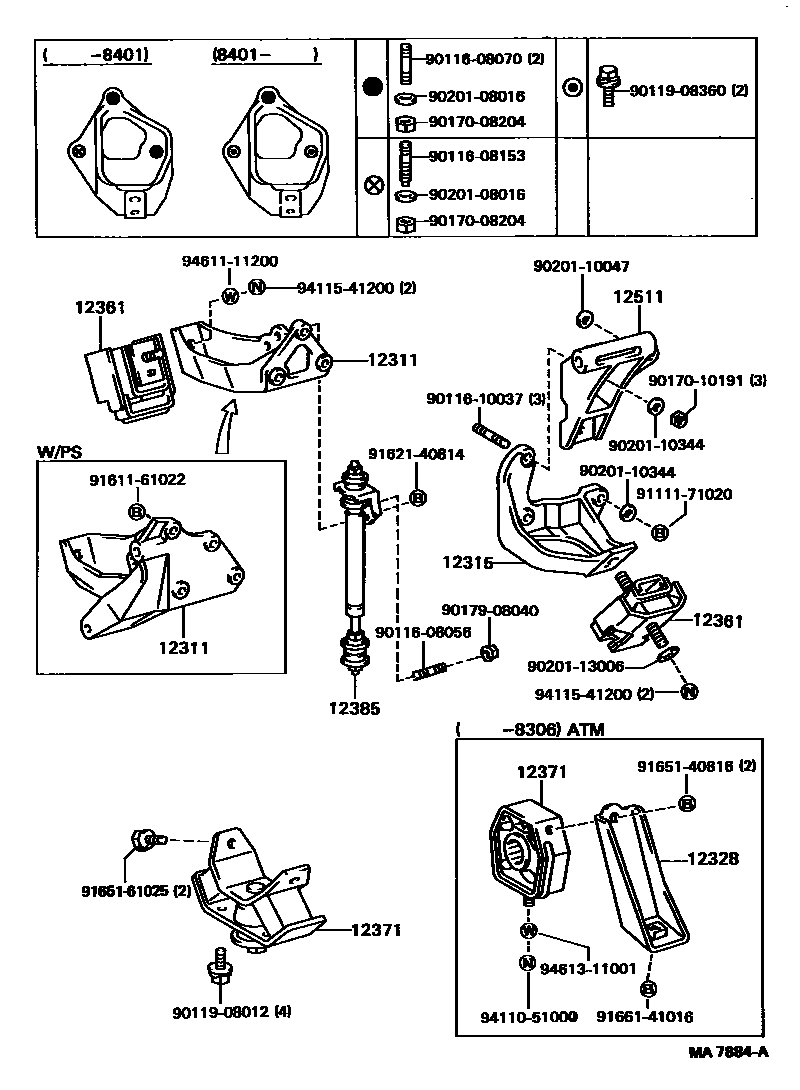

Toyota TERCEL — MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-15050i2A,3A#..AL2#198205-198801

main12311-15060i3AC..AL25..ARL198308-198801

W/PS

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-15030i2A,3A#..AL2#198205-198801

12328STAY, ENGINE MOUNTING, REAR LH

main12328-15030i2A,3AC..AL20,21..3FC198205-198306

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-15050×2i2A,3A#..AL2#198205-198801

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-15031i2A,3AC..AL20,21..3FC198205-198306

main12371-15050i2A,3AC..AL20,21..MTM198205-198306

main12371-15070i3A#..AL25198208-198801

12385ABSORBER, ENGINE MOUNTING, NO.1

main12307-15030i2A,3A#..AL20,25..ARL,GEN198205-198801

main12307-15050i2A,3A#..AL2#..EUR198205-198801

12511BRACKET, ALTERNATOR, NO.1

main12511-15011i2A,3A#..AL2#198205-198801

9011608056

main90116-08056

9011608070

main90116-08070

9011608153

main90116-08153

9011610037

main90116-10037

9011908012

main90119-08012

9011908360

main90119-08360

9017008204

main90170-08204

9017010191

main90170-10191

9017908040

main90179-08040

9020108016

main90201-08016

9020110047

main90201-10047

9020110344

main90201-10344

9020113006

main90201-13006

9111171020

main91111-71020

9161161022

main91611-61022

9162140814

main91621-40814

9165140816

main91651-40816

9165161025

main91651-61025

9166141016

main91661-41016

9411051000

main94110-51000

9411541200

main94115-41200

9461111200

main94611-11200

9461311001

main94613-11001

30 parts on this diagram · 1 diagram in section
