Toyota TERCEL — MIRROR

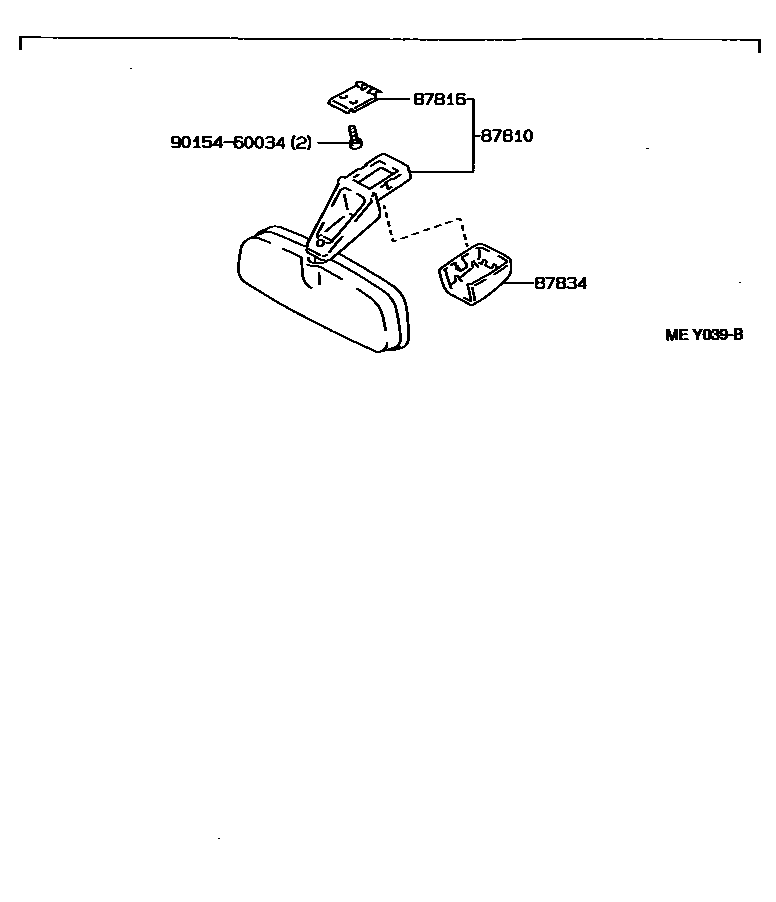

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-12230-B0i199508-199907
LT.BLUISH GRAY,TRIM1#
sub87810-12280
main87810-12230-E0i199508-199907
MD.OAK,TRIM4#
sub87810-12280
main87810-12240-B2i199508-199907
W(DAY & NIGHT MIRROR),LT.BLUISH GRAY,TRIM1#
sub87810-12270
main87810-12240-E3i199508-199907
W(DAY & NIGHT MIRROR),MD.OAK,TRIM4#
sub87810-12270
main87810-12250-B1i199508-199907
LT.BLUISH GRAY,TRIM1#
main87810-12250-E0i199508-199907
MD.OAK,TRIM4#
main87810-12260-B1i199508-199907
W(DAY & NIGHT MIRROR),LT.BLUISH GRAY,TRIM1#
sub87810-12270
main87810-12260-E0i199508-199907
W(DAY & NIGHT MIRROR),MD.OAK,TRIM4#
sub87810-12270
87816SPRING, INNER REAR VIEW MIRROR
main74372-01020i199509
main74372-30030i199509-199608
ICHIKO
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87834-16010-B0i199409
LT.BLUISH GRAY,TRIM1#
main87834-16010-E0i199409
MD.OAK,TRIM4#
9015460034
main90154-60034

4 parts on this diagram · 3 diagrams in section
