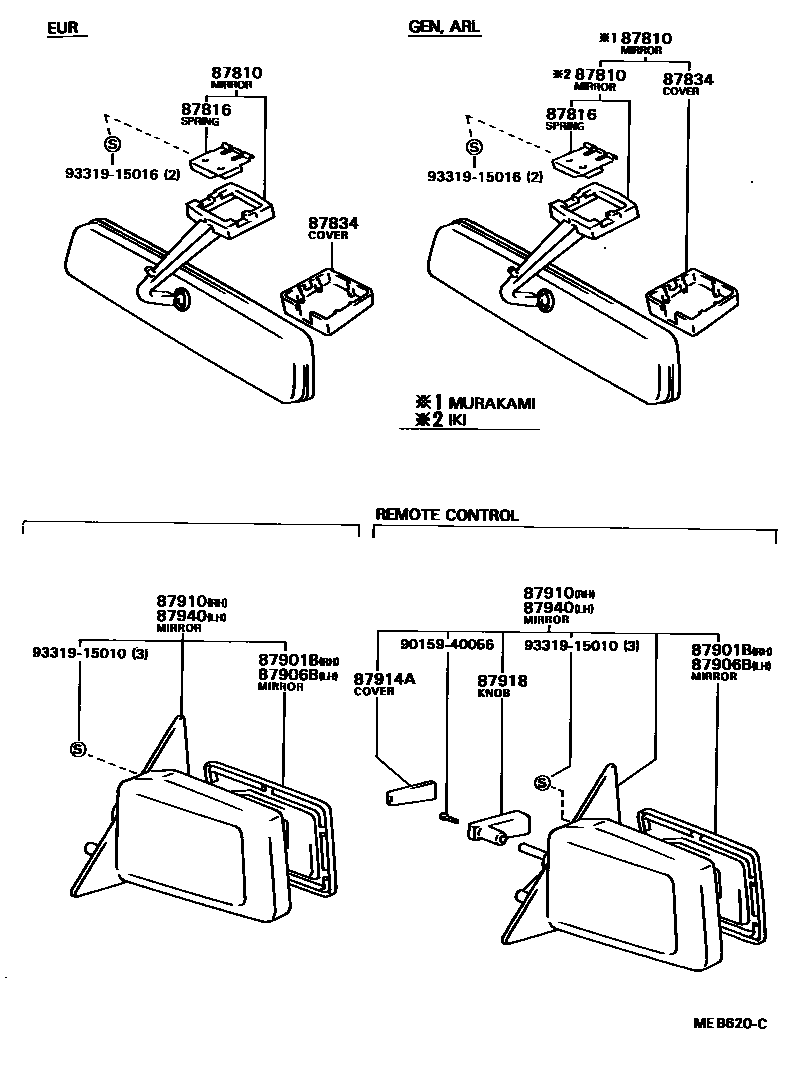

Toyota TERCEL — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-16020-01iAL25..ARL,GEN198605-198801

BLACK,IKI,NEW BLACK,TRIM2#

main87810-16020-05iAL25..ARL,GEN198605-198801

BEIGE,IKI,DARK BEIGE,TRIM4#

main87810-19015-15iAL25..ARL,GEN198605-198801

BEIGE,MURAKAMI,DARK BEIGE,TRIM4#

main87810-19015-18iAL20,25..ARL,GEN198205-198605

IVORY,IVORY,TRIM1#,3#,4#

main87810-19015-21iAL25..ARL,GEN198605-198801

BLACK,MURAKAMI,NEW BLACK,TRIM2#

main87810-20142-18iAL20..STD198205-198408

IVORY,IVORY,TRIM1#,3#,4#

main87810-22161-01iAL25..EUR198605-198801

BLACK,BLACK,TRIM2#

main87810-22161-15iAL25..EUR198605-198801

BEIGE,BEIGE,TRIM4#

main87810-22161-18iAL2#..(DLX,GL)..EUR198205-198605

IVORY,IVORY,TRIM1#,3#,4#

main87810-22162-08iAL25..EUR198605-198605

IVORY,IVORY,TRIM1#,4#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iAL25198512-198801

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-18iAL2#198205-198605

IVORY,IVORY,TRIM1#,3#,4#

main87834-20080-28iAL25198605-198801

IVORY,IVORY,TRIM2#,4#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87908-16030iAL2#..EUR,GEN198205-198801

main87908-16040iAL25..ARL198308-198801

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87909-16030iAL2#..EUR,GEN198205-198801

main87909-16040iAL25..ARL198308-198801

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-16120iAL20..5DS..RHD..DLX;AL25..RHD..(EUR,GEN)198205-198607

main87910-16121iAL25..RHD..(EUR,GEN)198607-198801

main87910-16130iAL20..5DS..RHD;AL25..RHD..(EUR,GEN)198205-198607

REMOTE CONTROL

main87910-16131iAL25..RHD..(EUR,GEN)198607-198801

REMOTE CONTROL

main87910-16140iAL20..3DS..RHD..DLX198205-198408

main87910-16150iAL20..3DS..RHD198205-198408

REMOTE CONTROL

main87910-16160iAL20,21..3DS..LHD..(DLX,GL)198205-198408

REMOTE CONTROL

main87910-16170iAL25..LHD;AL20,21..5DS..LHD198205-198607

REMOTE CONTROL

main87910-16171iAL25..LHD198607-198801

REMOTE CONTROL

main87910-16200iAL20..3DS..LHD..(DLX,STD)198205-198408

main87910-16210iAL21..5DS198209-198408

main87910-16211iAL25..LHD198607-198801

main87910-16220iAL25..ARL198308-198801

87914ACOVER, OUTER MIRROR KNOB

main87914-16010×2iAL2#..DLX,GL,SR5198205-198801

87918KNOB, CONTROL OUTER MIRROR

main87918-14040×2iAL2#..DLX,GL,SR5198205-198801

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-16150iAL25..LHD;AL20..5DS..LHD..DLX198205-198607

main87940-16151iAL25..LHD198607-198801

main87940-16160iAL25..LHD;AL20,21..5DS..LHD198205-198607

REMOTE CONTROL

main87940-16161iAL25..LHD198607-198801

REMOTE CONTROL

main87940-16190iAL21..3DS198209-198408

main87940-16200iAL20,21..3DS..LHD..(DLX,GL)198205-198408

REMOTE CONTROL

main87940-16210iAL20..3DS..RHD198205-198408

REMOTE CONTROL

main87940-16220iAL20..5DS..RHD;AL25..RHD..(EUR,GEN)198205-198607

REMOTE CONTROL

main87940-16221iAL25..RHD..(EUR,GEN)198607-198801

REMOTE CONTROL

main87940-16230iAL20..3DS..RHD..DLX198205-198408

main87940-16240iAL20..5DS..RHD..DLX;AL25..RHD..(EUR,GEN)198205-198607

main87940-16241iAL25..RHD..(EUR,GEN)198607-198801

main87940-16250iAL25..ARL198308-198801

9015940056

main90159-40056

9331915010

main93319-15010

9331915016

main93319-15016

12 parts on this diagram · 1 diagram in section
