Toyota TERCEL — MIRROR

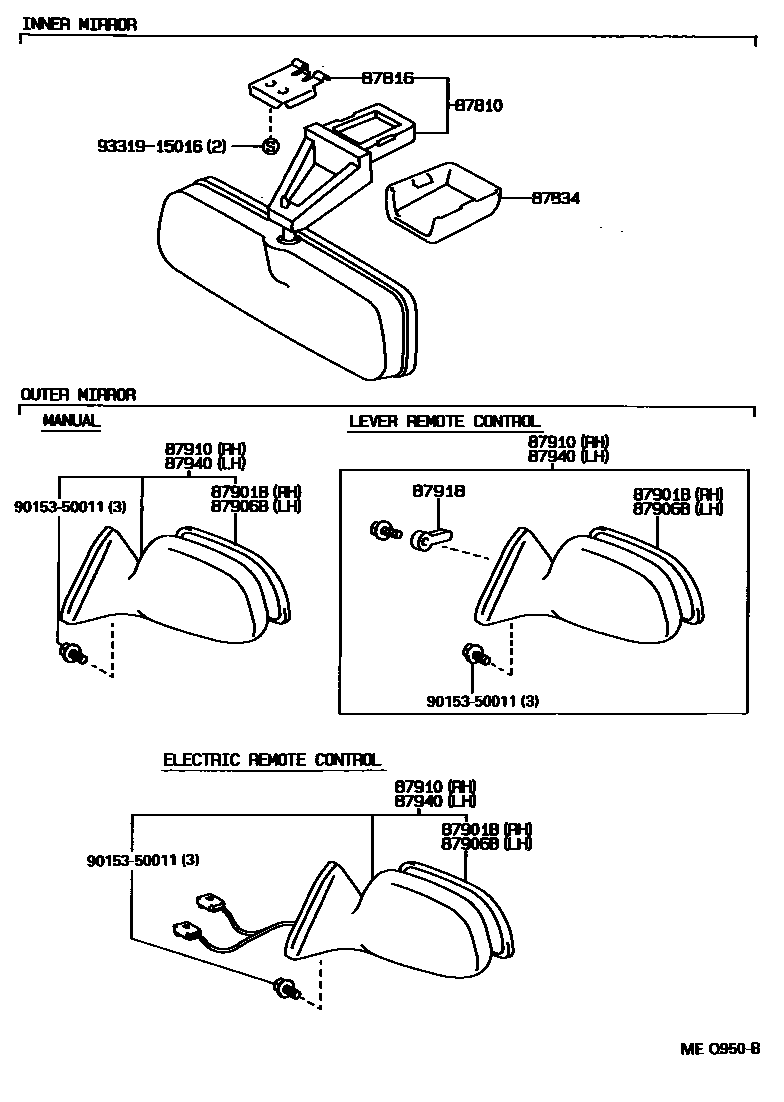

Parts diagram

87810MIRROR ASSY, INNER REAR VIEW

main87810-12230-13i199009-199208

GRAY,TRIM2#

main87810-12230-14i199009-199208

GRAISH BLUE,TRIM8#

main87810-12230-S3i199208-199409

LIGHT GRAY,TRIM2#

main87810-12230-W7i199208-199409

LI.BLUE,TRIM8#

main87810-12240-13i199009-199106

DAY & NIGHT,GRAY,TRIM2#

main87810-12240-14i199009-199208

DAY & NIGHT,GRAYISH BLUE,TRIM8#

main87810-12240-S3i199106-199409

DAY & NIGHT,GRAY,TRIM2#

main87810-12240-W7i199208-199409

DAY & NIGHT,LI.BLUE,TRIM8#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i199009-199409

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-12030-13i199009-199106

GRAY,TRIM2#

main87834-12030-14i199009-199208

GRAYISH BLUE,TRIM8#

main87834-12030-S3i199106-199409

GRAY,TRIM2#

main87834-12030-W7i199208-199409

LI.BLUE,TRIM8#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-16500i199009-199409

main87931-16510i199009-199409

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-16540i199009-199409

main87961-16550i199009-199409

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-16510i199009-199409

LEVER REMOTE CONTROL TYPE

main87910-16570i199009-199308

main87910-16690i199009-199409

87918KNOB, CONTROL OUTER MIRROR

main87918-16010×2i199009-199409

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-16550i199009-199409

LEVER REMOTE CONTROL TYPE

main87940-16560i199009-199409

main87940-16740i199009-199409

9015350011

main90153-50011

9331915016

main93319-15016

10 parts on this diagram · 1 diagram in section

MIRROR for Toyota TERCEL

This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota TERCEL. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
