Toyota TERCEL — METER

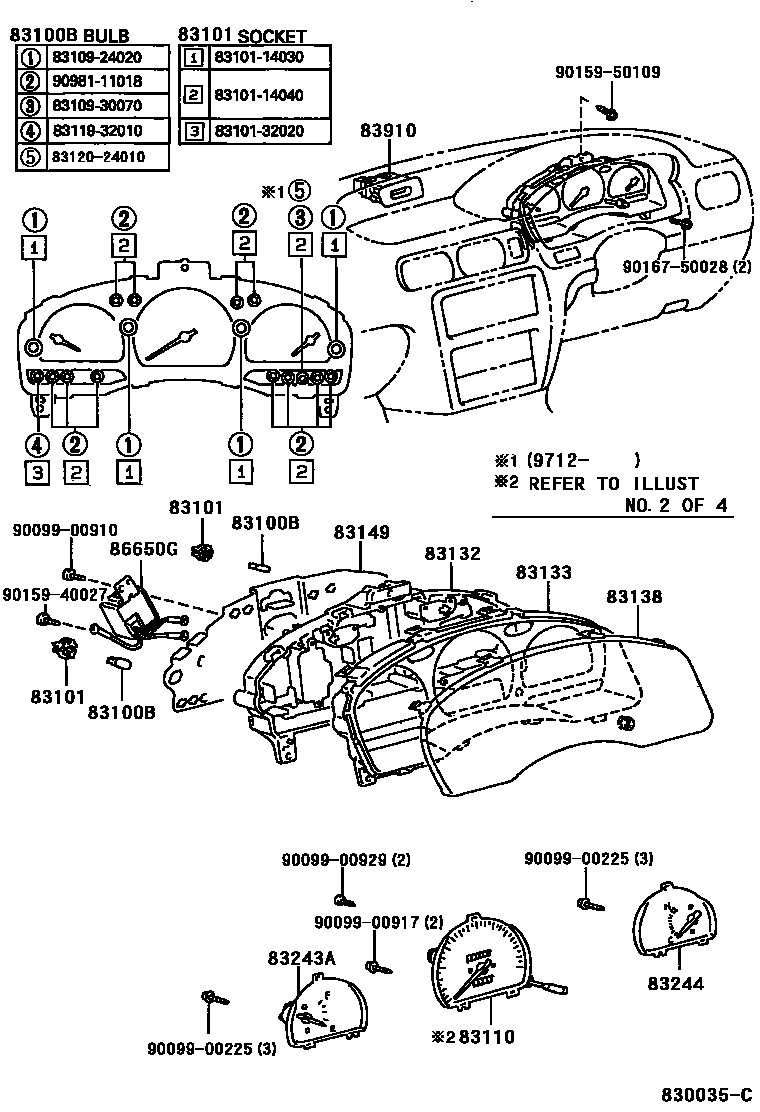

Parts diagram
83100BBULB, COMBINATION METER, NO.1
main83109-24020×4i199712
12V3.4W W(GREEN CAP),NO.1
main83109-30070i199409-199712
14V 2.0W,W/O SOCKET,NO.3
main83119-32010i199409
14V 3.0W,NO.4
main83120-24010i199712
13.5V,W(SOCKET),NO.5
main90072-02001×3i199409
12V 3.4W,GREEN CAP,NO.2
main90072-02004×9i199409-199712
14V 1.1W,NO.1
main90072-02008i199409
14V 3.0W,W(TACHOMETER),NO.4
main90072-02014i199409
14V 1.4W,GREEN CAP,NO.3
main90981-11018×9i199409
12V 1.2W W/O SOCKET,NO.2
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14030×4i199409
NO.1
main83101-14040×9i199712
NO.2
main83101-32020i199409
NO.3
main90072-01001×3i199409
W(TACHOMETER),NO.2
main90072-01003×9i199409-199712
W(TACHOMETER),NO.1
main90072-01004i199409
NO.4
main90072-01006i199409
W(TACHOMETER),NO.3
83110SPEEDOMETER ASSY
main83110-1G430i199409-199508
TYPE A:REFER TO ILLUSTRATION
main83110-1G431i199508-199706
TYPE B:REFER TO ILLUSTRATION
main83110-1G432i199706-199712
TYPE B:REFER TO ILLUSTRATION
main83110-1G440i199409-199508
TYPE A:REFER TO ILLUSTRATION
main83110-1G441i199508-199706
TYPE B:REFER TO ILLUSTRATION
sub83110-1G442
main83110-1G450i199409-199508
MPH & KM/H;TYPE A:REFER TO ILLUSTRATION
main83110-1G451i199508-199706
MPH & KM/H;TYPE B:REFER TO ILLUSTRATION
main83110-1G452i199706-199712
MPH & KM/H;TYPE B:REFER TO ILLUSTRATION
main83110-1G480i199409-199712
W(TACHOMETER);TYPE C:REFER TO ILLUSTRATION
main83110-1G490i199409-199712
W(TACHOMETER),MPH & KM/H;TYPE C:REFER TO ILLUSTRATION
main83220-16110i199712
TYPE B:REFER TO ILLUSTRATION
main83220-16120i199712
TYPE B:REFER TO ILLUSTRATION;KM/H
main83220-16130i199712
MPH & KM/H;TYPE B:REFER TO ILLUSTRATION
main83220-16160i199712
W(TACHOMETER);KM/H;TYPE C:REFER TO ILLUSTRATION
main83220-16170i199712
W(TACHOMETER),MPH & KM/H;TYPE C:REFER TO ILLUSTRATION
83132CASE, COMBINATION METER
main83132-1G020i199409
W(TACHOMETER)
main83132-1S130i199409-199712
main83132-1S210i199409-199712
main83841-16250i199712
83133PLATE, COMBINATION METER, NO.1
main83133-1G020i199409
W(TACHOMETER)
main83133-1G310i199409-199608
main83811-10120i199608-199712
83138GLASS, SPEEDOMETER
main83138-16630i199409
main83138-1G020i199409
W(TACHOMETER)
83149PLATE, METER CIRCUIT
main83149-1G140i199409-199712
W(TACHOMETER)
main83149-1G510i199409-199712
main83861-16160i199712
main83861-16360i199712
W(TACHOMETER)
83243AGAUGE SUB-ASSY, FUEL RECEIVER
main83243-1G020i199409-199712
W(TACHOMETER)
main83243-1G150i199409-199508
main83243-1G151i199508-199712
main83882-16160i199712
main83882-16350i199712
W(TACHOMETER)
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
main83244-16650i199409-199508
main83244-16651i199508-199712
main83244-16690i199409-199508
main83244-16691i199508-199712
EGYPT SPEC
main83883-16160i199712
main83883-16250i199712
EGYPT SPEC
83910CLOCK ASSY
main83910-16190-B0i199409-199608
BLUISH GRAY,TRIM1#
main83910-16190-B1i199608
GRAY,TRIM1#
main83910-16190-E0i199409
OAK,TRIM4#
main83910-16200-B0i199409-199608
BLUISH GRAY,TRIM1#
main83910-16200-B1i199608
GRAY,TRIM1#
main83910-16200-E0i199409
OAK,TRIM4#
86650GBUZZER ASSY
main86650-16050i199409
9009900225
main90099-00225
9009900910
main90099-00910
9009900917
main90099-00917
9009900929
main90099-00929
9015940027
main90159-40027
9015950109
main90159-50109
9016750028
main90167-50028

18 parts on this diagram · 5 diagrams in section
