Toyota TERCEL — METER

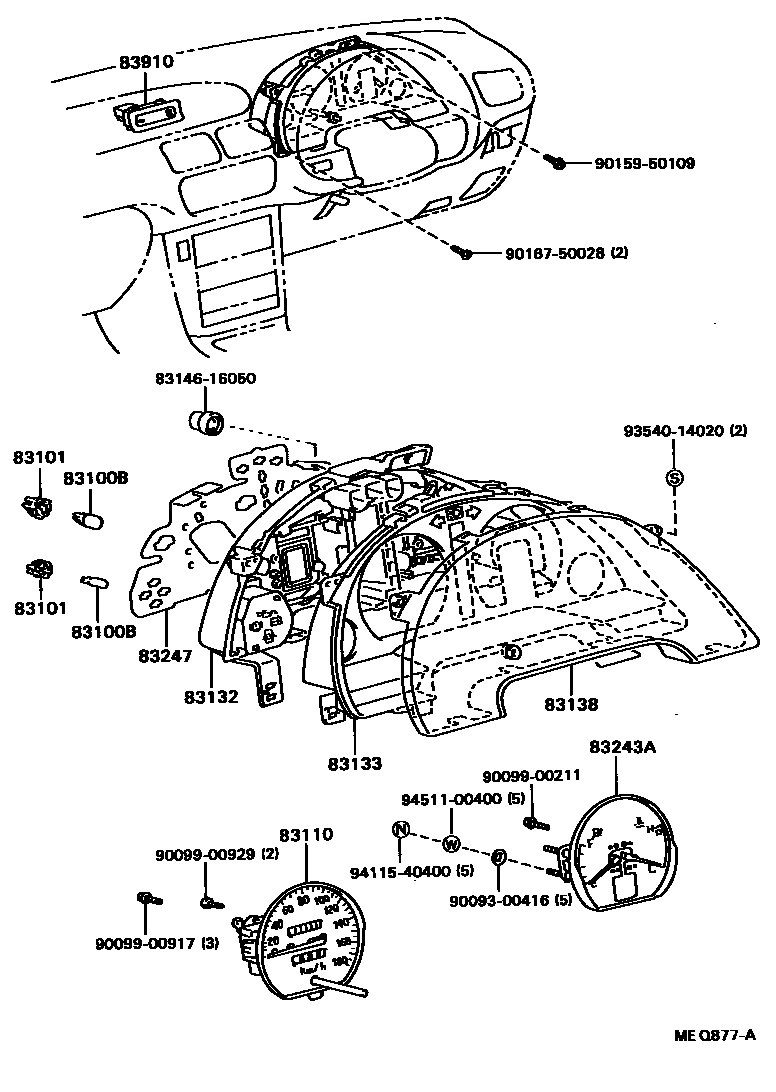

Parts diagram
83100BBULB, COMBINATION METER, NO.1
main83109-24020×4i199009-199409
12V3.4W W(GREEN CAP)
main83109-30070i199308-199409
14V 2.0W,W/O SOCKET
main83119-24590i199208-199409
14V 3.0W
main83119-32010i199009-199409
14V 3.0W
main84999-50010i199009-199409
12V 3.4W
main84999-50180×8i199009-199208
12V 1.2W
main90072-02001×4i199009-199409
12V 3.4W,GREEN CAP
main90981-11018×7i199009-199409
12V 1.2W W/O SOCKET
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14030×4i199009-199208
12V 1.4W
main83101-14040×8i199208-199409
12V 1.4W,14V 2.0W
main83101-32020i199208-199409
14V 3.0W
main84999-50110i199009-199409
12V 3.4W
main90072-01001×4i199009-199409
12V 3.4W,GREEN CAP
83110SPEEDOMETER ASSY
main83110-1G210i199009-199311
main83110-1G211i199311-199409
main83110-1G220i199009-199409
MILE & KM
main83110-1G240i199009-199311
W(TACHOMETER)
main83110-1G250i199009-199409
MILE & KM & W(TACHOMETER)
main83110-1G300i199009-199311
main83110-1G310i199009-199409
MILE & KM
main83110-1G340i199009-199311
W(TACHOMETER)
main83110-1G341i199311-199409
W(TACHOMETER)
main83110-1G350i199009-199409
MILE & KM & W(TACHOMETER)
main83110-1G360i199311-199409
W(TACHOMETER)
main83110-1G370i199311-199409
83132CASE, COMBINATION METER
main83132-16300i199009-199208
W(TACHOMETER)
main83132-1G270i199009-199409
W(TACHOMETER)
main83132-1G390i199009-199208
main83132-1G550i199009-199208
main83132-1G610i199208-199409
main83132-1G850i199208-199409
main83132-1S010i199208-199409
W(TACHOMETER)
main83132-1S110i199308-199409
83133PLATE, COMBINATION METER, NO.1
main83133-16100i199009-199409
W(TACHOMETER)
main83133-1G110i199009-199409
main83133-1G230i199009-199409
W(TACHOMETER)
main83133-1G250i199009-199409
83138GLASS, SPEEDOMETER
main83138-16220i199009-199409
W(TACHOMETER)
main83138-16550i199009-199409
main83138-16570i199009-199409
83243AGAUGE SUB-ASSY, FUEL RECEIVER
main83243-16180i199009-199208
W(TACHOMETER)
main83243-16200i199208-199409
W(TACHOMETER)
main83243-16870i199009-199409
main83243-1G090i199009-199409
main83243-1G110i199009-199409
W(TACHOMETER)
main83243-1G130i199308-199409
83247PLATE, METER CIRCUIT
main83149-16130i199009-199208
sub83149-16030
main83149-16220i199009-199208
W(TACHOMETER)
main83149-16290i199009-199208
sub83149-16270
main83149-16370i199009-199208
W(TACHOMETER)
sub83149-16470
main83149-16570i199208-199409
main83149-16630i199208-199409
W(TACHOMETER)
main83149-1G010i199208-199409
main83149-1G270i199208-199409
W(TACHOMETER)
main83149-1G430i199308-199409
83910CLOCK ASSY
main83910-16160-01i199009-199208
BLACK,TRIM2#
main83910-16160-04i199009-199208
GRAISH BLUE,TRIM8#
main83910-16160-22i199208-199409
BLACK,TRIM2#
main83910-16160-W4i199208-199409
EISEN BLUE,TRIM8#
main83910-16170-01i199009-199208
BLACK,TRIM2#
main83910-16170-04i199009-199208
GRAISH BLUE,TRIM8#
main83910-16170-22i199208-199409
BLACK,TRIM2#
main83910-16170-W4i199208-199409
EISEN BLUE,TRIM8#
8314616050GROMMET, METER GLASS
main83146-16050
9009300416
main90093-00416
9009900211
main90099-00211
9009900917
main90099-00917
9009900929
main90099-00929
9015950109
main90159-50109
9016750028
main90167-50028
9354014020
main93540-14020
9411540400
main94115-40400
9451100400
main94511-00400

19 parts on this diagram · 5 diagrams in section
