Toyota TERCEL — METER

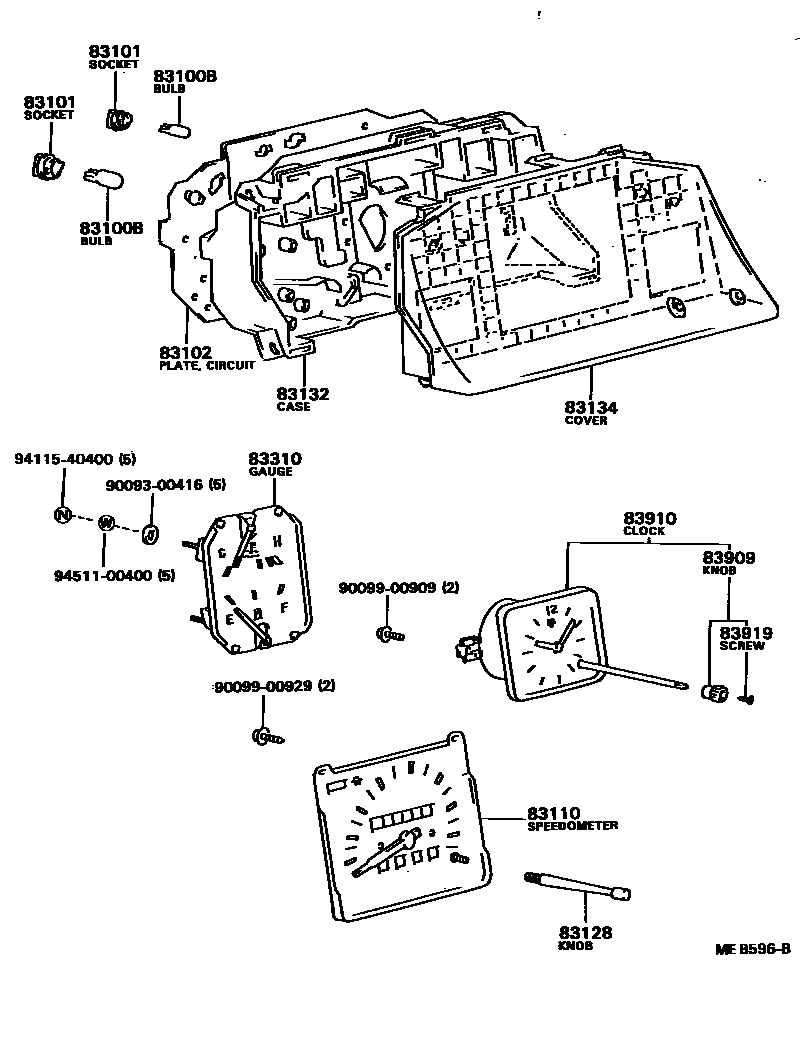

Parts diagram
83100BBULB, COMBINATION METER, NO.1
main83109-10010i198309-198801
12V 1.4W,ORANGE CAP
main83109-16010i198309-198801
14V 1.4W,GREEN CAP
main83109-28010×3i198309-198408
12V3.4W W(GREEN CAP)
main90981-11018×5i198205-198801
12V 1.2W W/O SOCKET
main99132-12034×7i198205-198801
12V 3.4W
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14030×4i198205-198801
12V 3.4W
main83101-14040×5i198205-198801
12V 1.4W
main83101-20040×7i198205-198801
12V 3.4W
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
main83247-16180i198205-198408
main83247-16280i198205-198801
W/ECONOMETER
main83247-16340i198408-198801
main83247-16590i198205-198801
W/TACHOMETER & DIGITAL CLOCK
main83247-16650i198205-198801
W/TACHOMETER & ECONOMETER
main83247-16770i198205-198408
main83247-16790i198205-198408
W/CLOCK
main83247-1G030i198205-198801
main83247-1G050i198205-198801
W/CLOCK
main83247-1G150i198308-198801
W/TACHOMETER
sub83247-1G130
main83247-1G170i198308-198801
main83247-1G230i198408-198801
W/TACHOMETER
main83247-1G250i198408-198801
main83247-1G270i198408-198801
W/CLOCK
main83247-1G290i198408-198801
main83247-1G310i198408-198801
W/CLOCK
main83247-1G430i198408-198801
W/TACHOMETER
83110SPEEDOMETER ASSY
main83110-16390i198205-198309
W/ECONOMETER
main83110-16391i198309-198408
W/ECONOMETER
main83110-16400i198205-198309
W/*TAC & ECONOMETER
main83110-16401i198309-198408
W/*TAC & ECONOMETER
main83110-16420i198205-198309
main83110-16421i198309-198408
main83110-16430i198205-198309
W/*TAC
main83110-16431i198309-198408
W/*TAC
main83110-16440i198205-198309
main83110-16441i198309-198408
main83110-16450i198303-198309
MILE & KM
main83110-16451i198309-198408
MILE & KM
main83110-16560i198205-198309
main83110-16561i198309-198408
main83110-16580i198308-198408
main83110-16590i198308-198408
main83110-16770i198605-198801
main83110-16780i198408-198605
W/ECONOMETER
main83110-16790i198605-198801
W/*TAC & ECONOMETER
main83110-16800i198408-198801
main83110-16810i198408-198801
W/*TAC
main83110-16820i198408-198801
main83110-16830i198408-198801
main83110-16840i198408-198801
main83110-16850i198408-198801
MILE & KM
main83110-16860i198408-198801
W/*TAC
main83110-16870i198408-198801
MILE/KM,W/*TAC
main83110-16880i198408-198801
W/*TAC
main83110-16890i198408-198801
MILE/KM,W/*TAC
main83110-1G110i198605-198801
main83110-1G120i198605-198801
W/ECONOMETER
main83110-1G130i198605-198801
W/*TAC & ECONOMETER
83128KNOB, TRIP COUNTER
main83128-16080i198408-198801
main83128-16090i198408-198801
W/TACHOMETER
main83128-16110i198205-198801
main83128-20710i198205-198408
83132CASE, COMBINATION METER
main83132-16160i198205-198801
W/ECONOMETER
main83132-16240i198205-198301
main83132-16260i198301-198801
main83132-16470i198308-198801
W/TACHOMETER
main83132-16530i198205-198801
W/TACHOMETER & ECONOMETER
main83132-16550i198205-198309
main83132-16570i198205-198309
main83132-16670i198309-198801
main83132-16690i198309-198408
main83132-16710i198408-198801
W/TACHOMETER
main83132-16730i198408-198801
main83132-16770i198408-198801
W/TACHOMETER
83134COVER, COMBINATION METER, NO.1
main83133-16450i198205-198309
W/TACHOMETER & DIGITAL CLOCK
main83133-16470i198205-198309
W/TACHOMETER & DIGITAL CLOCK
main83133-16510i198205-198408
W/CLOCK
main83133-16530i198205-198408
main83133-16650i198309-198408
W/TACHOMETER & DIGITAL CLOCK
main83133-16670i198309-198408
W/TACHOMETER & DIGITAL CLOCK
main83133-16730i198408-198801
W/CLOCK
main83133-16750i198408-198801
main83133-16830i198408-198801
W/TACHOMETER
main83133-16850i198408-198801
W/TACHOMETER
main83134-16100i198205-198408
W/CLOCK
sub83134-16101
main83134-16120i198205-198408
sub83134-16121
main83134-16260i198408-198801
main83134-16280i198408-198801
W/CLOCK
83310GAGE ASSY, FUEL RECEIVER
main83243-16100i198205-198801
main83243-16350i198308-198408
W/TACHOMETER
main83243-16370i198205-198408
W/TACHOMETER
main83243-16390i198205-198801
main83243-16410i198205-198801
main83243-16510i198408-198801
W/TACHOMETER
main83243-16530i198408-198801
W/TACHOMETER
83909KNOB, CLOCK
main83909-14012i198205-198801
ANALOGUE
main83909-16050i198408-198801
DIGITAL
83910CLOCK ASSY
main83910-16050i198408-198801
DIGITAL
main83910-16060i198205-198801
ANALOGUE
main83910-16070i198408-198801
DIGITAL
83919SCREW, CLOCK
main83919-12230i198205-198801
DIGITAL
main83919-14012i198205-198801
ANALOGUE
9009300416
main90093-00416
9009900909
main90099-00909
9009900929
main90099-00929
9411540400
main94115-40400
9451100400
main94511-00400

16 parts on this diagram · 6 diagrams in section
