Toyota TERCEL — MAT & CARPET

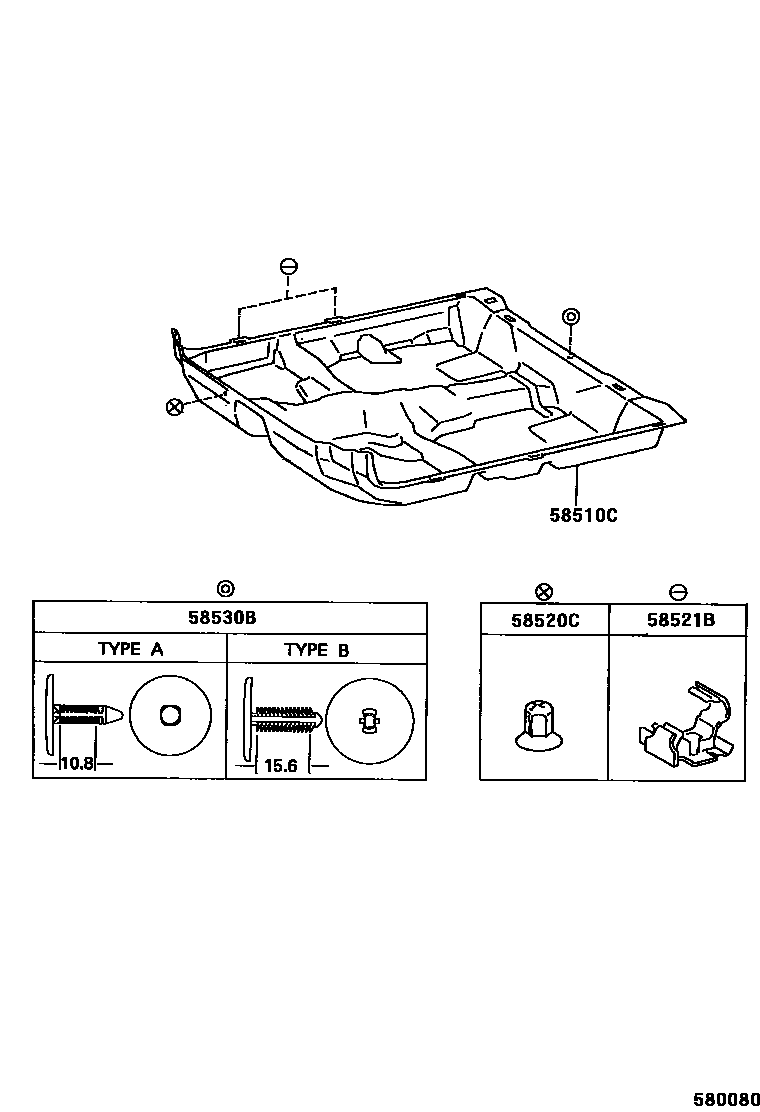

Parts diagram
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-1G730-B0i199409-199608
BLUISH GRAY,TRIM1#
main58510-1G730-E0i199409-199608
BEIGE,TRIM4#
main58510-1G740-B0i199409-199608
W(BACK DOOR OPENER),BLUISH GRAY,TRIM1#
main58510-1G740-E0i199409-199608
W(BACK DOOR OPENER),BEIGE,TRIM4#
main58510-1G750-B0i199409-199608
W(BACK DOOR OPENER),BLUISH GRAY,TRIM1#
main58510-1G750-E0i199409-199608
W(BACK DOOR OPENER),BEIGE,TRIM4#
main58510-1G790-B0i199409-199608
BLUISH GRAY,TRIM1#
main58510-1G790-E0i199409-199608
BEIGE,TRIM4#
main58510-1S180-B0i199608-199712
BLUISH GRAY,TRIM1#
main58510-1S180-E0i199608-199712
BEIGE,TRIM4#
main58510-1S190-B0i199608-199712
W(BACK DOOR OPENER),BLUISH GRAY,TRIM1#
main58510-1S190-E0i199608-199712
W(BACK DOOR OPENER),BEIGE,TRIM4#
main58510-1S200-B0i199608-199712
BLUISH GRAY,TRIM1#
main58510-1S200-E0i199608-199712
BEIGE,TRIM4#
main58510-1S210-B0i199608-199712
W(BACK DOOR OPENER),BLUISH GRAY,TRIM1#
main58510-1S210-E0i199608-199712
W(BACK DOOR OPENER),BEIGE,TRIM4#
main58510-1S510-B1i199712
GRAY,TRIM1#
main58510-1S510-E1i199712
OAK,TRIM4#
main58510-1S520-B1i199712
W(BACK DOOR OPENER),GRAY,TRIM1#
main58510-1S520-E1i199712
W(BACK DOOR OPENER),OAK,TRIM4#
main58510-1S570-B1i199712
GRAY,TRIM1#
main58510-1S570-E1i199712
OAK,TRIM4#
main58510-1S580-B1i199712
W(BACK DOOR OPENER),GRAY,TRIM1#
main58510-1S580-E1i199712
W(BACK DOOR OPENER),OAK,TRIM4#
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-05051-22i199409
BLACK,TRIM1#,4#
58521BHOOK, FLOOR CARPET
main58521-16030×4i199409
58530BCLIP(FOR FRONT FLOOR CARPET)
main90467-06016-C0i199509
TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,4#
main90467-06166-C0i199409-199508
BLACK,TRIM1#,4#
main90467-07049-C0i199508-199509
BLACK,TRIM1#,4#

4 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota TERCEL

This section contains 4 genuine Toyota parts for the MAT & CARPET system of the Toyota TERCEL. Key components include: CARPET ASSY, FRONT FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), HOOK, FLOOR CARPET.
