Toyota TERCEL — MANIFOLD
17111MANIFOLD, INTAKE
17111APLUG, NO.1
17118STAY, MANIFOLD
17141MANIFOLD, EXHAUST
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
EXHAUST MANIFOLD
INTAKE MANIFOLD,NO.2
EXHAUST MANIFOLD
INTAKE MANIFOLD,NO.1
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
W(HOT AIR INTAKE)
W(HOT AIR INTAKE)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
9017908040
main90179-08040
9017910096
main90179-10096
9161160825
main91611-60825
9162160814
main91621-60814
91621J0612
main91621-J0612
92122B0814
main92122-B0814

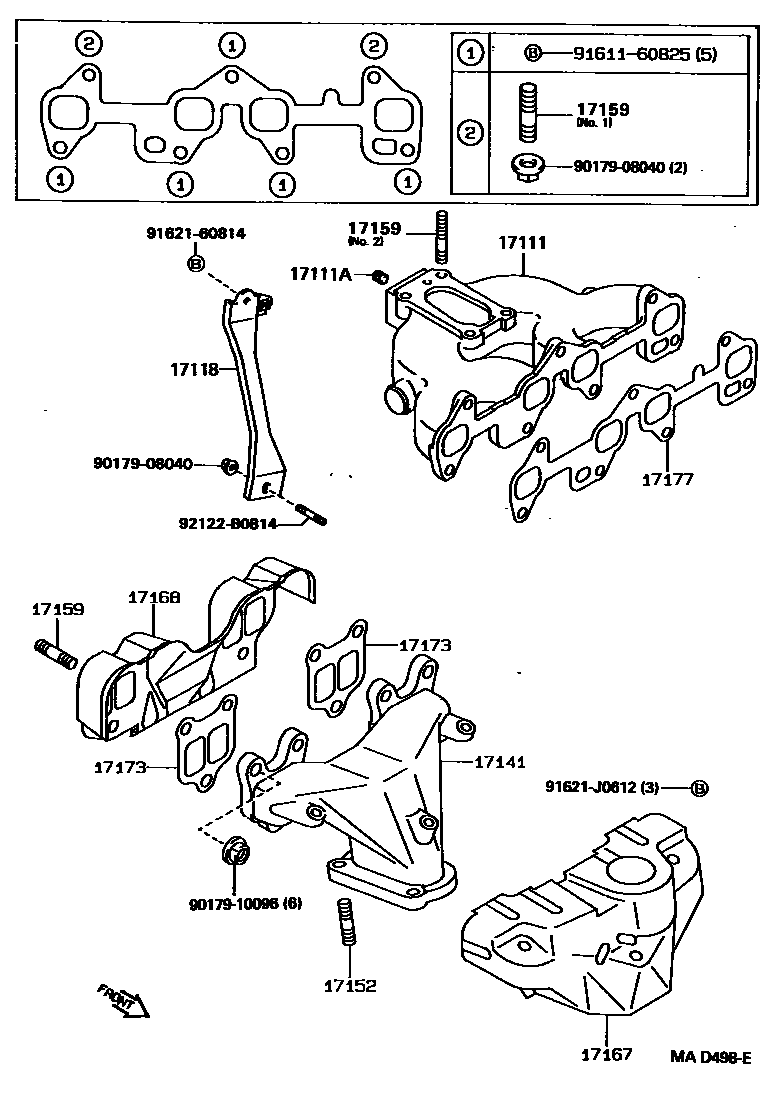

16 parts on this diagram · 1 diagram in section
MANIFOLD for Toyota TERCEL
This section contains 16 genuine Toyota parts for the MANIFOLD system of the Toyota TERCEL. Key components include: MANIFOLD, INTAKE, PLUG, NO.1, STAY, MANIFOLD, MANIFOLD, EXHAUST, BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE).
