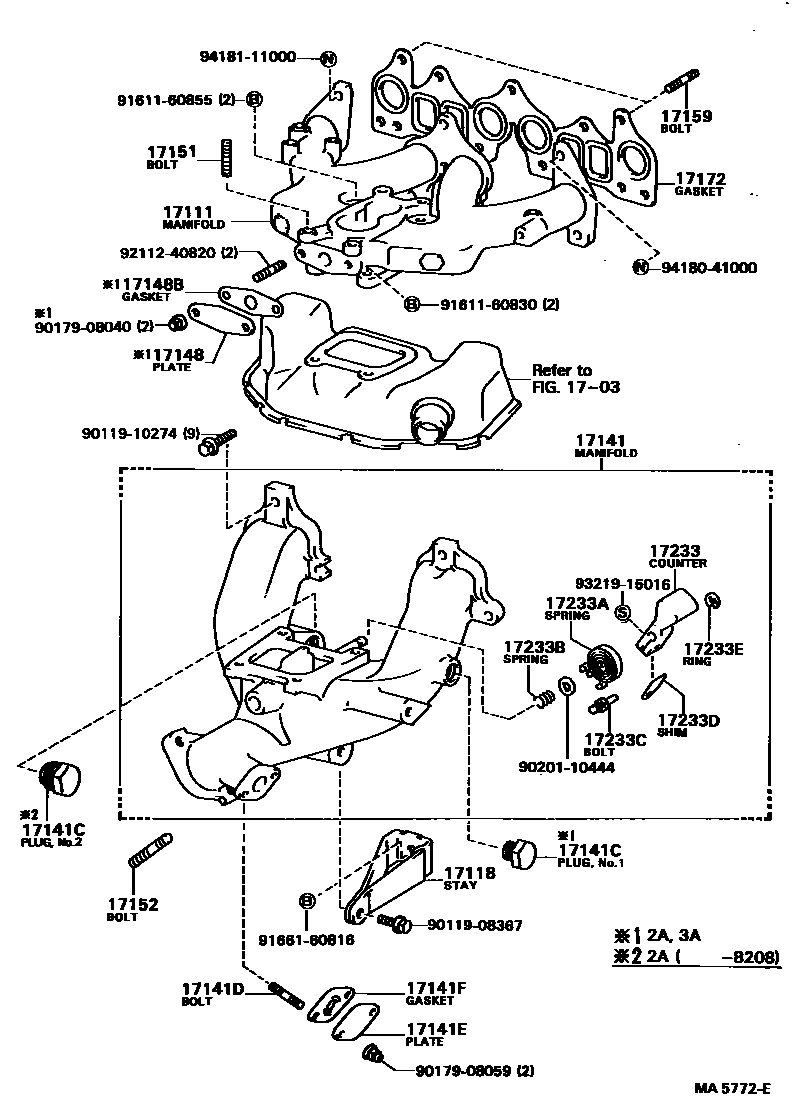

Toyota TERCEL — MANIFOLD
1703AIR CLEANER
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17141MANIFOLD, EXHAUST
17141CPLUG, W/HEAD STRAIGHT SCREW
NO.1
NO.2
17141DBOLT, STUD(FOR OXYGEN SENSOR)
17141EPLATE, EXHAUST MANIFOLD
SWEDEN SPEC
17141FGASKET(FOR EXHAUST MANIFOLD PLATE)
17148PLATE, EXHAUST MANIFOLD(FOR EGR INLET)
17148BGASKET, EGR INLET
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
L=44,S=12&20
17172GASKET, MANIFOLD TO CYLINDER HEAD
SWEDEN SPEC
17233COUNTER WEIGHT
17233ASPRING, SPIRAL, NO.1(FOR COUNTER WEIGHT)
17233BSPRING, SPIRAL, NO.2(FOR COUNTER WEIGHT)
17233CBOLT(FOR COUNTER WEIGHT)
17233DSHIM(FOR COUNTER WEIGHT)
17233ERING, E(FOR COUNTER WEIGHT)
9011908367
main90119-08367
9011910274
main90119-10274
9017908040
main90179-08040
9017908059
main90179-08059
9020110444
main90201-10444
9161160830
main91611-60830
9161160855
main91611-60855
9166160816
main91661-60816
9211240820
main92112-40820
9321915016
main93219-15016
9418041000
main94180-41000
9418111000
main94181-11000
32 parts on this diagram · 1 diagram in section
MANIFOLD for Toyota TERCEL
This section contains 32 genuine Toyota parts for the MANIFOLD system of the Toyota TERCEL. Key components include: AIR CLEANER, MANIFOLD, INTAKE, STAY, MANIFOLD, MANIFOLD, EXHAUST, PLUG, W/HEAD STRAIGHT SCREW.
