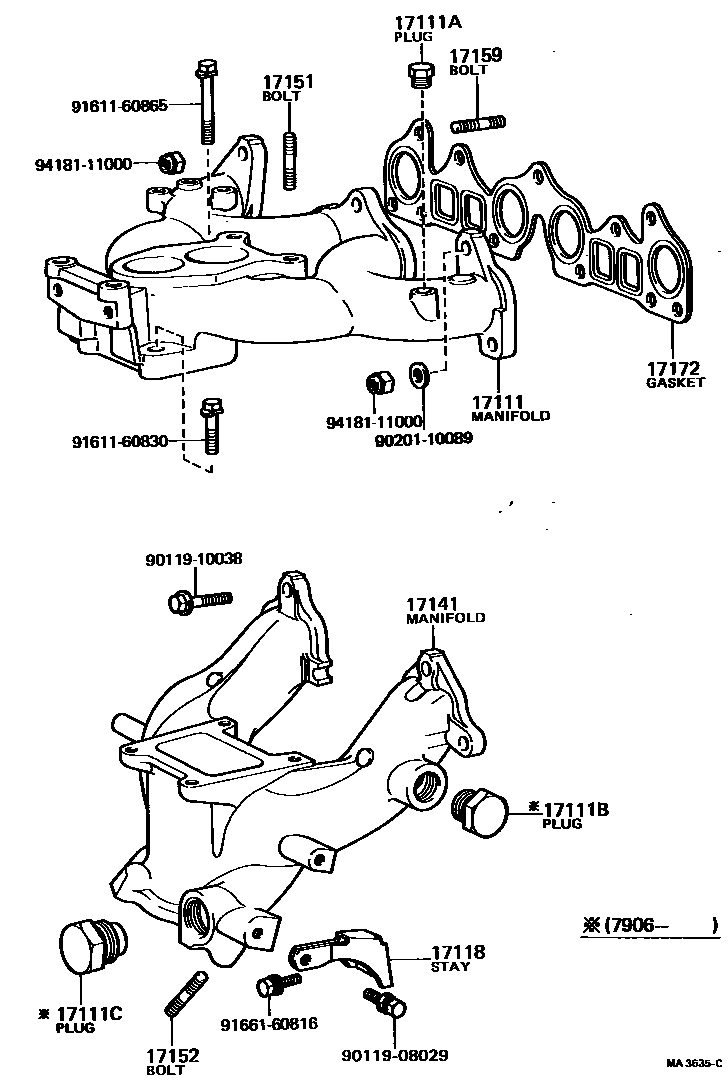

Toyota TERCEL — MANIFOLD
17111MANIFOLD, INTAKE
17111APLUG, NO.1
17111BPLUG, NO.2
17111CPLUG, NO.3
17118STAY, MANIFOLD
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
L=42,S=16&10
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
L=41,S=14&21
L=46.5,S=14&20
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
L=44,S=12&20
L=47,S=12&20
17172GASKET, MANIFOLD TO CYLINDER HEAD
9011908029
main90119-08029
9011910038
main90119-10038
9020110089
main90201-10089
9161160830
main91611-60830
9161160865
main91611-60865
9166160816
main91661-60816
9418111000
main94181-11000
17 parts on this diagram · 1 diagram in section
MANIFOLD for Toyota TERCEL
This section contains 17 genuine Toyota parts for the MANIFOLD system of the Toyota TERCEL. Key components include: MANIFOLD, INTAKE, PLUG, NO.1, PLUG, NO.2, PLUG, NO.3, STAY, MANIFOLD.
