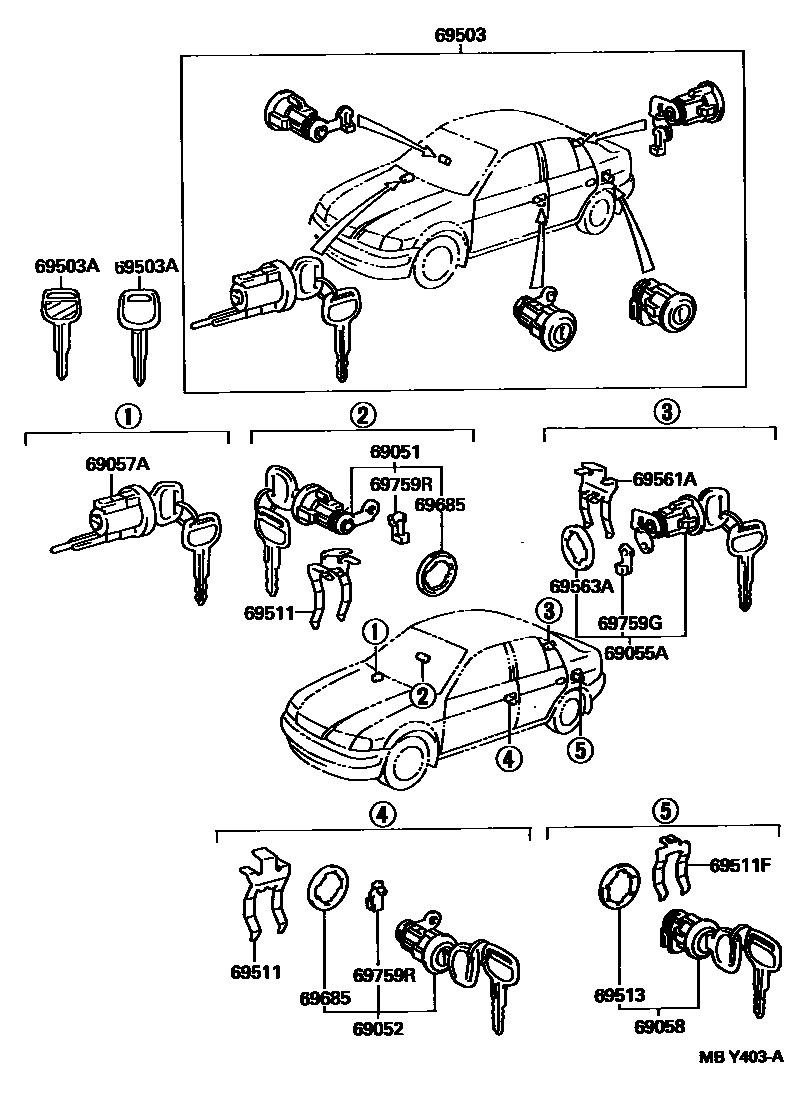

Toyota TERCEL — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-16250i199409-199712

main69051-16290i199712

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-16230i199409-199712

main69052-16270i199712

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-16390i199409-199712

main69055-16400i199409-199712

W(BACK DOOR OPENER)

main69055-16490i199712

main69055-16520i199712

W(BACK DOOR OPENER)

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-16150i199409-199712

main69057-16260i199712

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-16170i199409

69503CYLINDER SET, LOCK

main69005-1G020i199409-199712

main69005-1G030i199409-199712

W(BACK DOOR OPENER)

main69005-1G240i199712

main69005-1G250i199712

W(BACK DOOR OPENER)

69503AKEY, BLANK

main90999-00166×5i199409-199608

MASTER KEY,W(*68); MASTER KEY,W(*68),W(BACK DOOR OPENER)

main90999-00167×4i199409-199608

MASTER KEY; MASTER KEY,W(BACK DOOR OPENER)

main90999-00168i199409

SUB KEY

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-16030×2i199409

69511FRETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010i199409

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-87001i199409

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69511-16030i199409

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-16050i199409-199712

main69563-16060i199712

69685PAD, LOCK CYLINDER

main69563-16050×2i199409

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24080i199409

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-30040i199409

BEIGE

main69759-30050i199409

GREEN

15 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota TERCEL

This section contains 15 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota TERCEL. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER & KEY SET, FUEL FILLER LID.
