Toyota TERCEL — LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
W(POWER WINDOW & BACK DOOR & TRUNK OPENER)
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
SILVER,040 ,176 ,3E5 ,3K4 ,6M9 ,6N1 ,8J2
SILVER,040 ,176 ,3E5 ,6L6 ,8J1 ,8J2
W(BACK DOOR & TRUNK OPENER),SILVER,040 ,176 ,3E5 ,3K4 ,6M9 ,6N1 ,8J2
W(BACK DOOR & TRUNK OPENER),SILVER,040 ,176 ,3E5 ,6L6 ,8J1 ,8J2
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69058CYLINDER & KEY SET, FUEL FILLER LID
69503CYLINDER SET, LOCK
SILVER,040 ,176 ,3E5 ,3K4 ,6M9 ,6N1 ,8J2
SILVER,040 ,176 ,3E5 ,6L6 ,8J1 ,8J2
W(BACK DOOR & TRUNK OPENER),SILVER,040 ,176 ,3E5 ,3K4 ,6M9 ,6N1 ,8J2
W(BACK DOOR & TRUNK OPENER),SILVER,040 ,176 ,3E5 ,6L6 ,8J1 ,8J2
W(POWER WINDOW & BACK DOOR & TRUNK OPENER)
69503AKEY, BLANK
MASTER KEY,W(*68)
MASTER KEY
SUB KEY,W(BACK DOOR & TRUNK OPENER)
69511RETAINER, FRONT DOOR LOCK CYLINDER
69513PAD, FUEL FILLER LID LOCK CYLINDER
69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER
69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
69759GSNAP, LUGGAGE DOOR LOCK CYLINDER
69759RSNAP, FRONT DOOR LOCK CYLINDER
BLUE
PINK
YELLOW

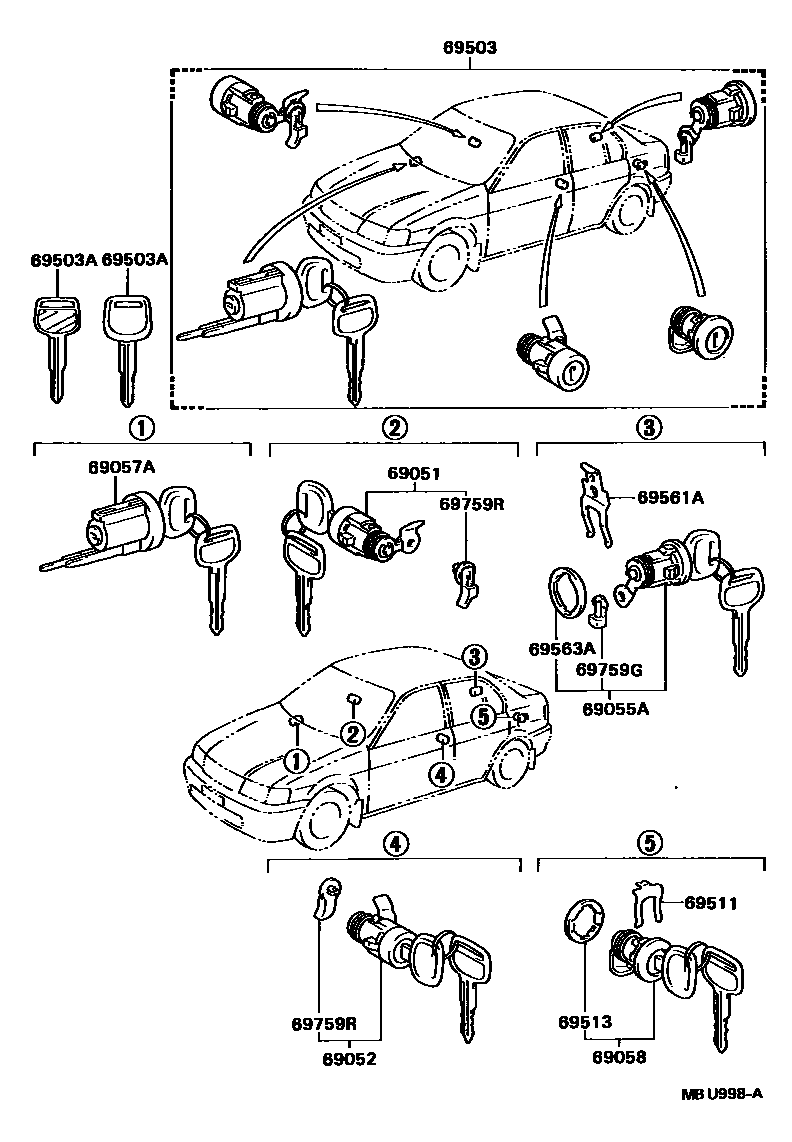

13 parts on this diagram · 1 diagram in section
LOCK CYLINDER SET for Toyota TERCEL
This section contains 13 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota TERCEL. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER & KEY SET, FUEL FILLER LID.
