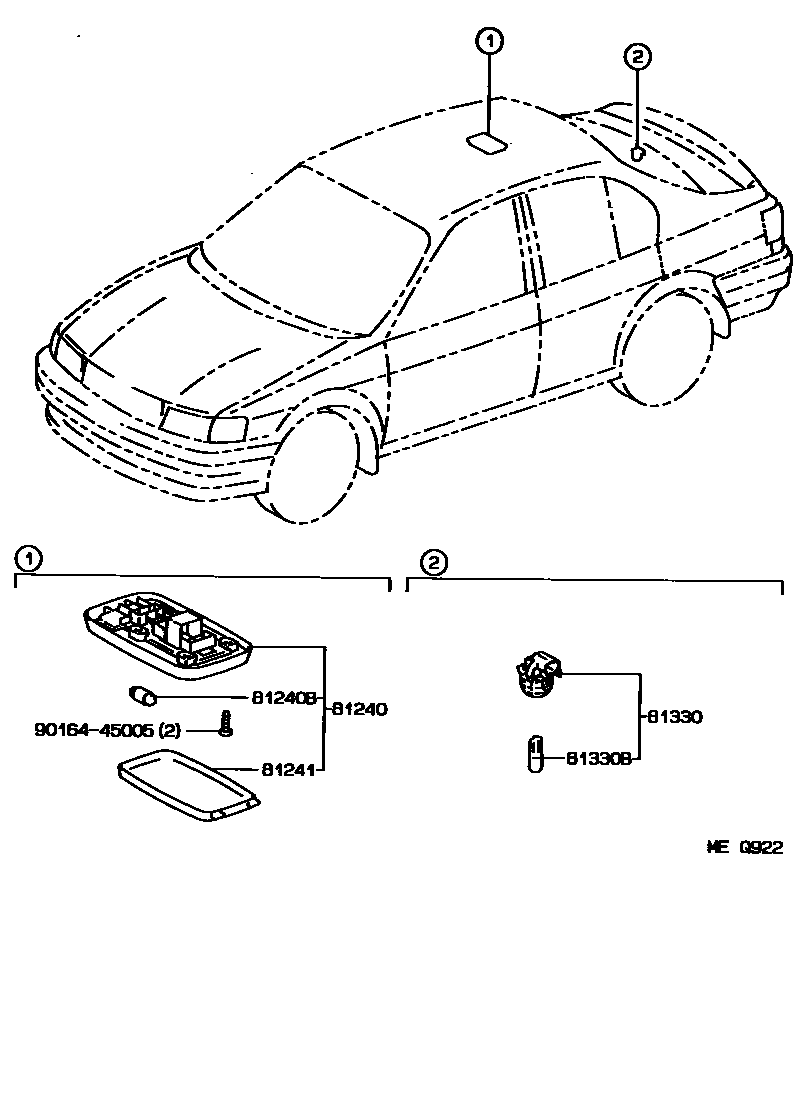

Toyota TERCEL — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-12030-03iEL40199009-199106

LIGHT GRAY,TRIM2#

sub81240-22100

main81240-12030-24iEL40199009-199208

GRAISH BLUE,TRIM8#

sub81240-22100

main81240-12030-S3iEL40199106-199409

LIGHT GRAY,TRIM2#

sub81240-22100

main81240-12030-W7iEL40199208-199409

LI.BLUE,TRIM8#

sub81240-22100

81240BBULB, ROOM LAMP, NO.1

main99132-12100iEL40199009-199409

12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-12020iEL40199009-199409

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-30090iEL40199009-199409

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iEL40199009-199409

12V 3.8W

9016445005

main90164-45005

6 parts on this diagram · 1 diagram in section
