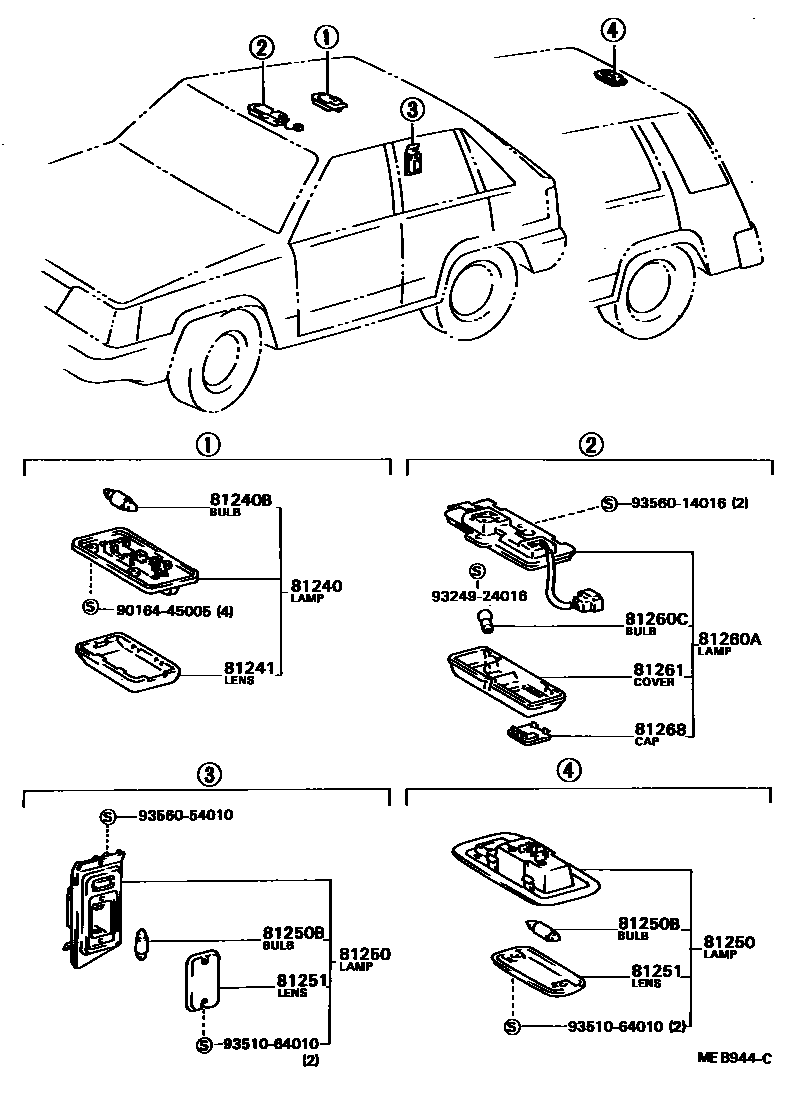

Toyota TERCEL — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-16010-18iAL2#198205-198408

IVORY,IVORY,TRIM1#,3#,4#

sub81240-22060

main81240-22080-08iAL25198408-198605

IVORY,IVORY,TRIM1#,4#

main81240-22080-18iAL25198605-198608

IVORY,IVORY,TRIM1#,4#

main81240-22081-18iAL25198608-198801

IVORY,IVORY,TRIM2#,4#

81240BBULB, ROOM LAMP, NO.1

main99132-12100iAL2#198205-198801

12V 10W,12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-16010iAL2#198205-198408

main81241-20060iAL25198408-198801

81250LAMP ASSY, ROOM, NO.2

main81250-16020-08iAL25198208-198605

IVORY,IVORY,TRIM1#,4#

main81250-16020-18iAL25198605-198801

IVORY,IVORY,TRIM2#,4#

main81250-16030iAL20,21198205-198408

81250BBULB, ROOM LAMP, NO.2

main99132-13050iAL2#198205-198801

12V 5W,12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-14030iAL2#198205-198801

81260ALAMP ASSY, MAP

main81260-16030iAL20..GEN;AL20,21..GL;AL25..EUR,GEN198205-198211

main81260-16040-08iAL20..LHD..5F..DLX..EUG;AL20..3DS..3FC..DLX..EUG198403-198408

IVORY,GERMAN SPECIAL SPEC,IVORY

main81260-16040-18iAL25198605-198801

IVORY,IVORY,TRIM2#,4#

81260CBULB(FOR MAP LAMP)

main90981-12014×2iAL21..3DS..5F..DLX198302-198304

12V 10W,12V 10W,EUROPE COMPAIGN

81261LENS AND COVER, MAP LAMP

main81261-16030iAL20..GEN;AL20,21..GL;AL25..EUR,GEN198205-198211

main81261-20060-18iAL21..3DS..5F..DLX198302-198304

IVORY,EUROPE CAMPAIGN,IVORY

main81261-20061-18iAL20..LHD..5F..DLX..EUG;AL20..3DS..3FC..DLX..EUG198403-198408

IVORY,GERMAN SPECIAL SPEC,IVORY

main81261-20061-28iAL25198605-198801

IVORY,IVORY,TRIM2#,4#

81268CAP MAP LAMP

main81268-20060-08iAL21..3DS..5F..DLX198302-198304

IVORY,EUROPE CAMPAIGE,IVORY

9016445005

main90164-45005

9324924016

main93249-24016

9351064010

main93510-64010

9356014016

main93560-14016

9356054010

main93560-54010

15 parts on this diagram · 1 diagram in section
