Toyota TERCEL — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-16010-03iAL11197901-198008

GRAY,GRAY,TRIM2#

main81240-16010-04iAL11197901-198008

BLUE,BLUE,TRIM8#

main81240-16010-05iAL11197901-198008

BEIGE,BEIGE,TRIM4#

main81240-16010-08iAL11198008-198204

IVORY,IVORY,TRIM2#,4#,8#

81240BBULB, ROOM LAMP, NO.1

main99132-12100iAL11197901-198204

12V 10W,12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-16010iAL11197901-198204

81250LAMP ASSY, ROOM, NO.2

main81250-16010-01iAL11..3DS197901-198204

BLACK,BLACK,TRIM2#

main81250-16010-04iAL11..3DS197901-198204

BLUE,BLUE,TRIM8#

main81250-16010-06iAL11..3DS197901-198008

LIGHT BROWN,BROWN,TRIM4#

main81250-16010-16iAL11..3DS198008-198204

LIGHT BROWN,BROWN,TRIM4#

81250BBULB, ROOM LAMP, NO.2

main99132-13050iAL11..3DS197901-198204

12V 5W,12V 5W

81251LENS, ROOM LAMP, NO.2

main81231-14010iAL11..3DS198007-198204

main81231-30010iAL11..3DS197901-198007

8125916010

main81259-16010

9018304006

main90183-04006

9354014514

main93540-14514

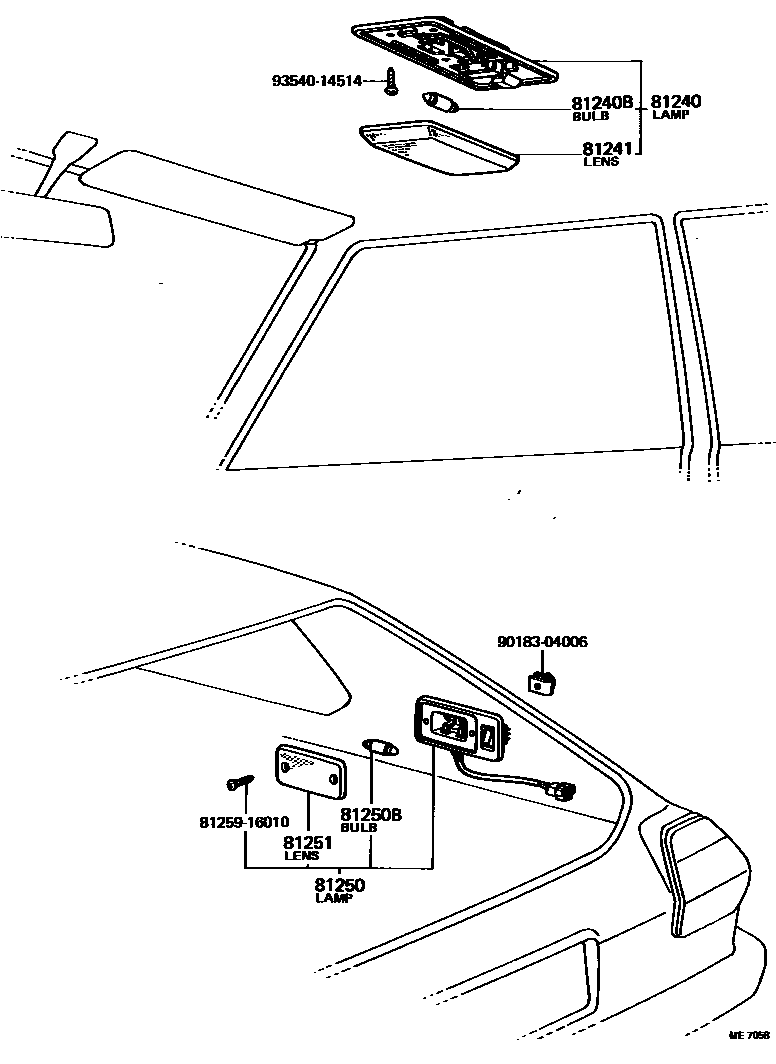

9 parts on this diagram · 1 diagram in section
