Toyota TERCEL — HORN

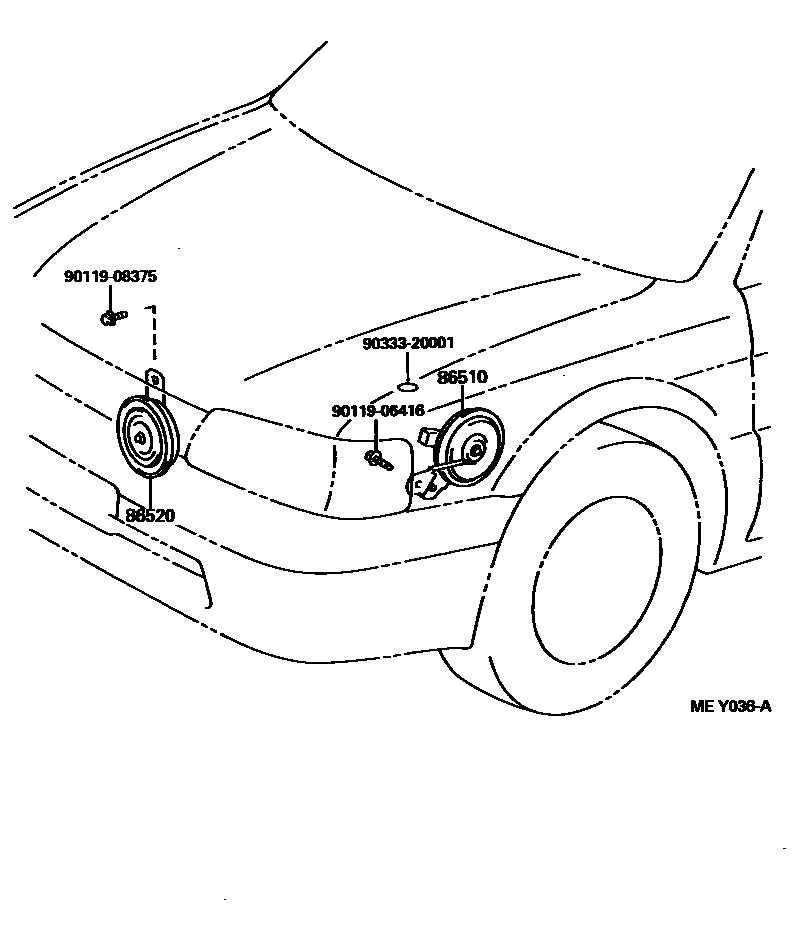

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-16070i199409

86520HORN ASSY, LOW PITCHED

main86520-12500i199712

NIPPONDENSO

main86520-12550i199712

main86520-16150i199409-199712

main86520-17090i199409-199712

main86520-26080i199712

MARUKO

9011906416

main90119-06416

9011908375

main90119-08375

9033320001

main90333-20001

5 parts on this diagram · 1 diagram in section

HORN for Toyota TERCEL

This section contains 5 genuine Toyota parts for the HORN system of the Toyota TERCEL. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED.
