Toyota TERCEL — HORN

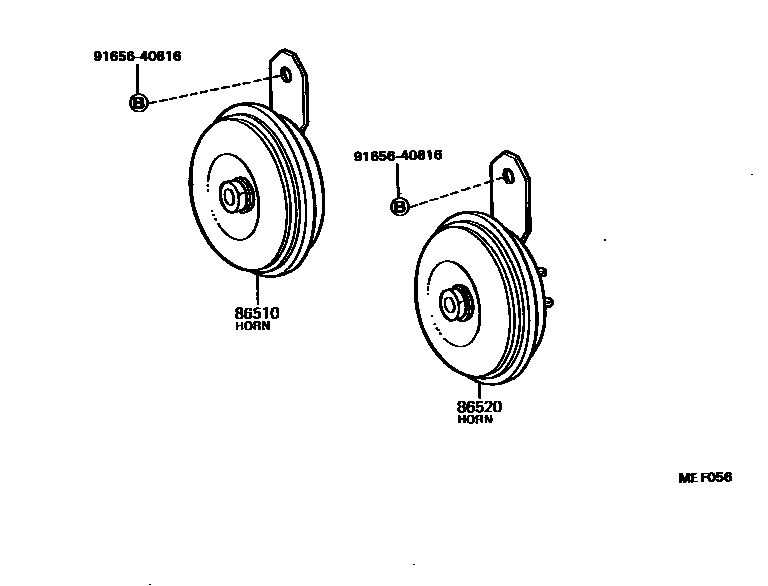

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-22090i198408-198508

main86510-22091i198508-198801

86520HORN ASSY, LOW PITCHED

main86520-16100i198205-198212

main86520-22090i198205-198508

W/SW/MW RADIO

main86520-22091i198508-198801

W/SW/MW RADIO

main86520-22100i198205-198801

DENSO

main86520-22110i198205-198801

MARUKO

main86520-60150i198212-198801

9165640816

main91656-40816

3 parts on this diagram · 1 diagram in section
