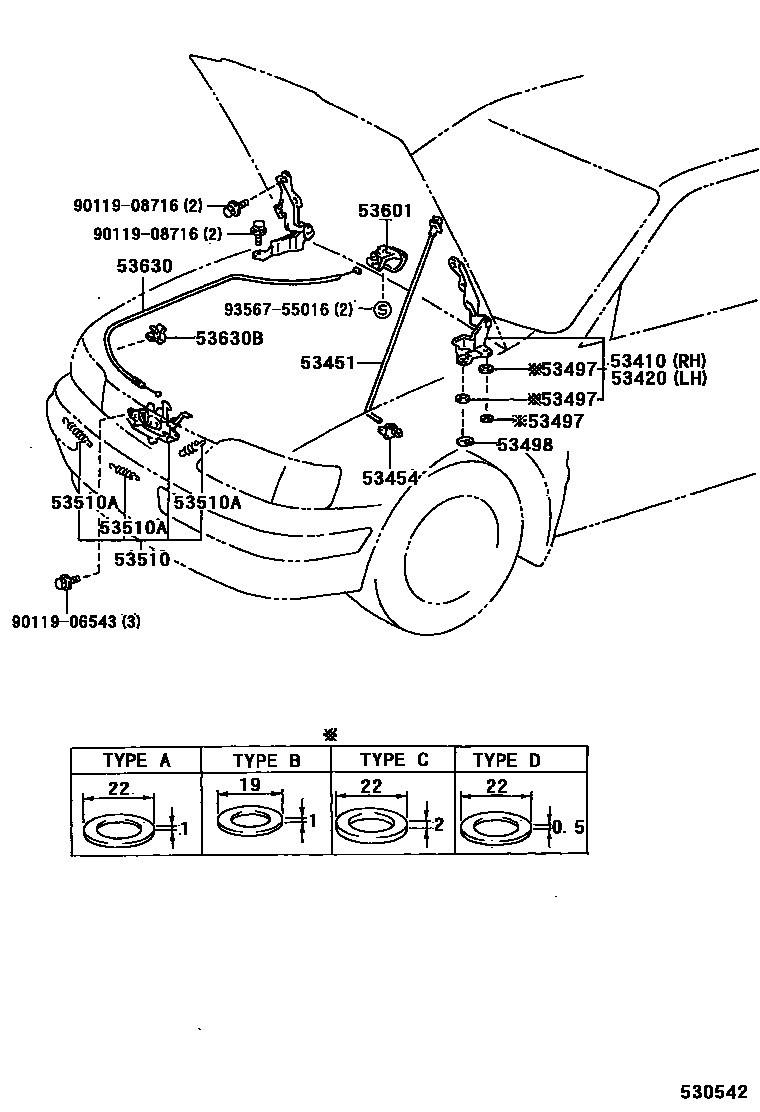

Toyota TERCEL — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-16080i199409-199712

main53410-16100i199712

53420HINGE ASSY, HOOD, LH

main53420-16060i199409-199712

main53420-16080i199712

53451ROD, HOOD SUPPORT

main53440-16060i199409

53454CLIP, HOOD SUPPORT ROD

main53454-16010i199409

53497PAD, HOOD HINGE, NO.1

main53497-12050×4i199409

T=1.0,TYPE A:REFER TO ILLUSTRATION

main53497-12070×4i199708

T=0.5,TYPE D:REFER TO ILLUSTRATION

main53497-16020i199409

OD=19,TYPE B:REFER TO ILLUSTRATION

main53497-20070×4i199409-199708

T=2.0,TYPE C:REFER TO ILLUSTRATION

53498PAD, HOOD HINGE, NO.2

main53498-16020i199409

53510LOCK ASSY, HOOD

main53510-16270i199409

main53510-16280i199409

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055i199409

WD=0.9,CW=21

main90506-09057i199409

WD=0.9,CW=23

main90506-12067i199409

WD=1.4,CW=7.25

main90506-20066i199409

WD=2.0,CW=17

main90506-20069i199409

WD=2.0,CW=16

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-16020-22i199409

BLACK,TRIM1#,4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-16320i199409

main53630-16330i199409

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90467-09043×2i199409

9011906543

main90119-06543

9011908716

main90119-08716

9356755016

main93567-55016

14 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota TERCEL

This section contains 14 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota TERCEL. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, CLIP, HOOD SUPPORT ROD, PAD, HOOD HINGE, NO.1.
