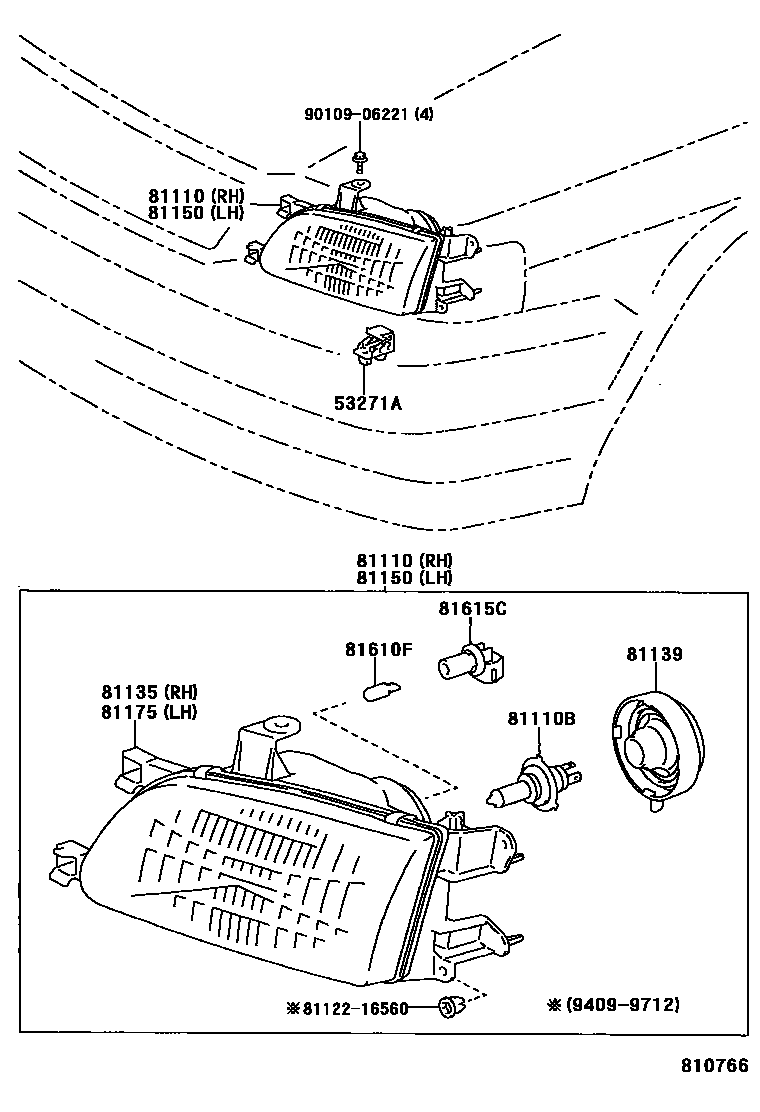

Toyota TERCEL — HEADLAMP

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060×2i199409

81110HEADLAMP ASSY, RH

main81110-16560i199409-199712

LH TRAFFIC SPEC

main81110-16570i199409-199712

main81110-16590i199409-199712

YELLOW BULB

main81110-16740i199712

LH TRAFFIC SPEC

main81110-16750i199712

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2i199409-199712

12V 60/55W,*HAL *WH

main90981-13016×2i199409-199712

12V 60/55W,*HAL *YE

main90981-22002×2i199712

12V 60/55W,*HAL *WH

81135UNIT ASSY, HEADLAMP, RH

main81130-16560i199409-199712

LH TRAFFIC SPEC

main81130-16570i199409-199712

main81130-16740i199712

LH TRAFFIC SPEC

main81130-16750i199712

81139COVER, HEADLAMP SOCKET

main81139-16560×2i199409-199712

main81139-1E340×2i199712

81150HEADLAMP ASSY, LH

main81150-16560i199409-199712

LH TRAFFIC SPEC

main81150-16570i199409-199712

main81150-16590i199409-199712

YELLOW BULB

main81150-16740i199712

LH TRAFFIC SPEC

main81150-16750i199712

81175UNIT ASSY, HEADLAMP, LH

main81170-16560i199409-199712

LH TRAFFIC SPEC

main81170-16570i199409-199712

main81170-16740i199712

LH TRAFFIC SPEC

main81170-16750i199712

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i199409

12V 5W

81615CSOCKET & WIRE, CLEARANCE LAMP

main81138-22680×2i199712

main90075-99044×2i199409-199712

8112216560HOLDER, HEADLAMP

main81122-16560

9010906221

main90109-06221

11 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota TERCEL

This section contains 11 genuine Toyota parts for the HEADLAMP system of the Toyota TERCEL. Key components include: BRACKET, HEADLAMP MOUNTING, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP SOCKET.
