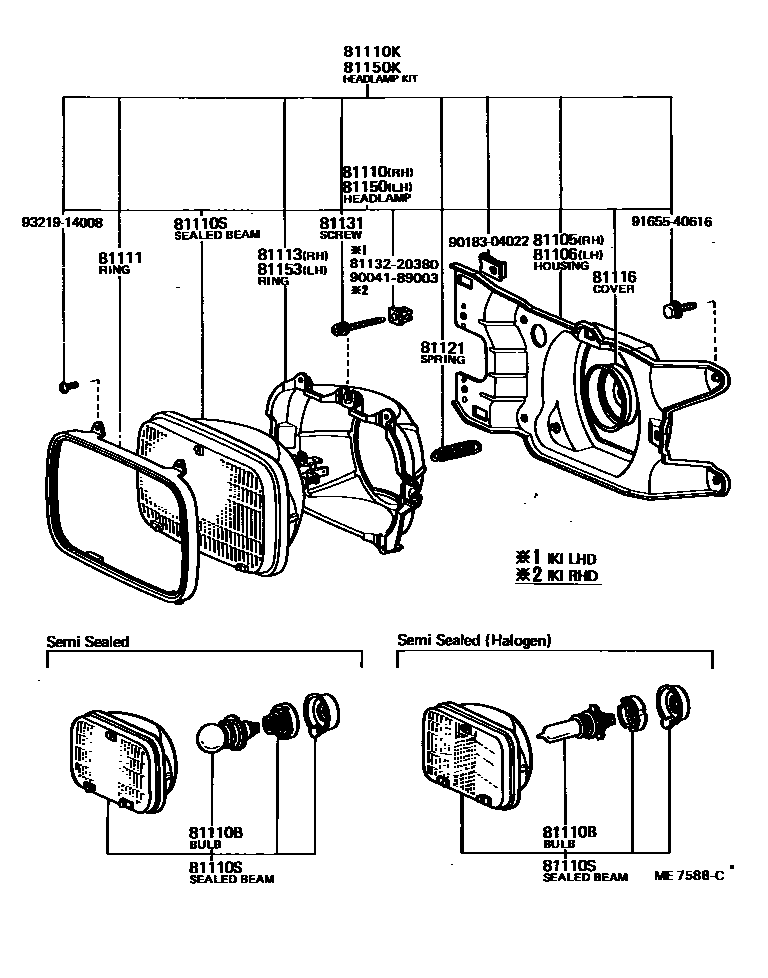

Toyota TERCEL — HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
IKI
IKI
KOITO
KOITO
81106HOUSING SUB-ASSY, HEADLAMP, LH
IKI
IKI
KOITO
KOITO
81110HEADLAMP ASSY, RH
IKI
IKI
KOITO
KOITO
IKI
KOITO
SEMI-SEALED,WHITE
SEMI-SEALED,YELLOW
HALOGEN,WHITE
HALOGEN,YELLOW
IKI
KOITO
SEMI-SEALED,WHITE
SEMI-SEALED,YELLOW
HALOGEN,WHITE
HALOGEN,YELLOW
81110BBULB(FOR HEADLAMP, NO.1)
12V 45/40W,WHITE,12V 45/40W,SEMI-SEALED,WHITE
12V 45/40W,YELLOW,12V 45/40W,SEMI-SEALED,YELLOW
12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN WHITE
12V 60/55W,*HAL *YE,12V 60/55W,HALOGEN YELLOW
81110KHEADLAMP KIT, W/O SEALED BEAM, RH
HALOGEN
HALOGEN
81110SSEALED BEAM UNIT, NO.1
12V 65/55W,*WB,12V 65/55W,KOITO
12V 65/55W,IKI
12V 65/55W,*WB,12V 65/55W,IKI
12V 65/55W,*WB,12V 65/55W,KOITO
12V 45/40W,*WSB,12V 45/40W,SEMI-SEALED,WHITE
12V 45/40W,*YSB,12V 45/40W,SEMI-SEALED,YELLOW
12V 60/55W,*HWS,12V 60/55W,HALOGEN WHITE
12V 60/55W,*HYS,12V 60/55W,HALOGEN YELLOW
81111RING, SEALED BEAM RETAINING
IKI
KOITO
81113RING, SEALED BEAM MOUNTING, NO.1 RH
IKI
KOITO
81116COVER, SEALED BEAM UNIT
IKI
KOITO
81121SPRING, HEADLAMP TENSION
IKI
IKI
KOITO
81131SCREW, HEADLAMP ADJUSTING
KOITO
IKI
81150HEADLAMP ASSY, LH
IKI
IKI
KOITO
KOITO
IKI
KOITO
SEMI-SEALED,WHITE
SEMI-SEALED,YELLOW
HALOGEN,WHITE
HALOGEN,YELLOW
IKI
KOITO
SEMI-SEALED,WHITE
SEMI-SEALED,YELLOW
HALOGEN,WHITE
HALLOGEN,YELLOW
81150KHEADLAMP KIT, W/O SEALED BEAM, LH
HALOGEN
HALOGEN
81153RING, SEALED BEAM MOUNTING, NO.1 LH
IKI
KOITO
8113220380NUT, HEADLAMP SELF LOCKING
main81132-20380
9004189003
main90041-89003
9018304022
main90183-04022
9165540616
main91655-40616
9321914008
main93219-14008
19 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota TERCEL
This section contains 20 genuine Toyota parts for the HEADLAMP system of the Toyota TERCEL. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), HEADLAMP KIT, W/O SEALED BEAM, RH.
