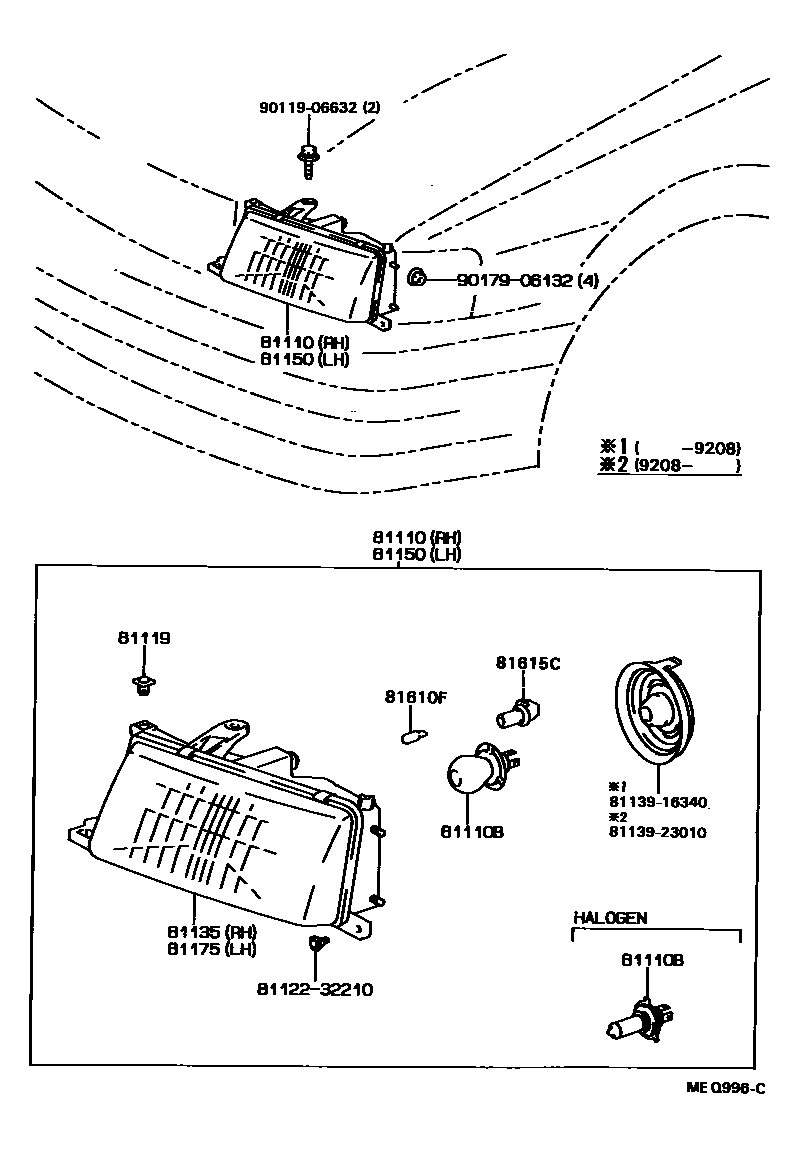

Toyota TERCEL — HEADLAMP
81110HEADLAMP ASSY, RH
HEALOGEN WHITE
RHD RAY PATTERN
RHD RAY PATTERN
HEALOGEN WHITE
HEALOGEN YELLOW
HEALOGEN YELLOW
81110BBULB(FOR HEADLAMP, NO.1)
12V 60/55W,*HAL *WH,HEALOGEN WHITE
12V 60/55W,*HAL *WH
12V 60/55W,*HAL *YE,HEALOGEN YELLOW
12V 65/60W,WHITE
12V 60/55W,*HAL *WH
81119SCREW, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
HEALOGEN WHITE
RHD RAY PATTERN
RHD RAY PATTERN
HEALOGEN WHITE
HEALOGEN YELLOW
HEALOGEN YELLOW
81150HEADLAMP ASSY, LH
HEALOGEN WHITE
RHD RAY PATTERN
RHD RAY PATTERN
HEALOGEN WHITE
HEALOGEN YELLOW
HEALOGEN YELLOW
81175UNIT ASSY, HEADLAMP, LH
HEALOGEN WHITE
RHD RAY PATTERN
RHD RAY PATTERN
HEALOGEN WHITE
HEALOGEN YELLOW
HEALOGEN YELLOW
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615CSOCKET & WIRE, CLEARANCE LAMP
8112232210HOLDER, HEADLAMP
main81122-32210
8113916340COVER, HEADLAMP SOCKET
main81139-16340
8113923010COVER, HEADLAMP SOCKET
main81139-23010
9011906632
main90119-06632
9017906132
main90179-06132
13 parts on this diagram · 1 diagram in section
HEADLAMP for Toyota TERCEL
This section contains 13 genuine Toyota parts for the HEADLAMP system of the Toyota TERCEL. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), SCREW, HEADLAMP, UNIT ASSY, HEADLAMP, RH, HEADLAMP ASSY, LH.
