Toyota TERCEL — FUEL FILTER

23300FILTER ASSY, FUEL

main23300-26060i199409-199705

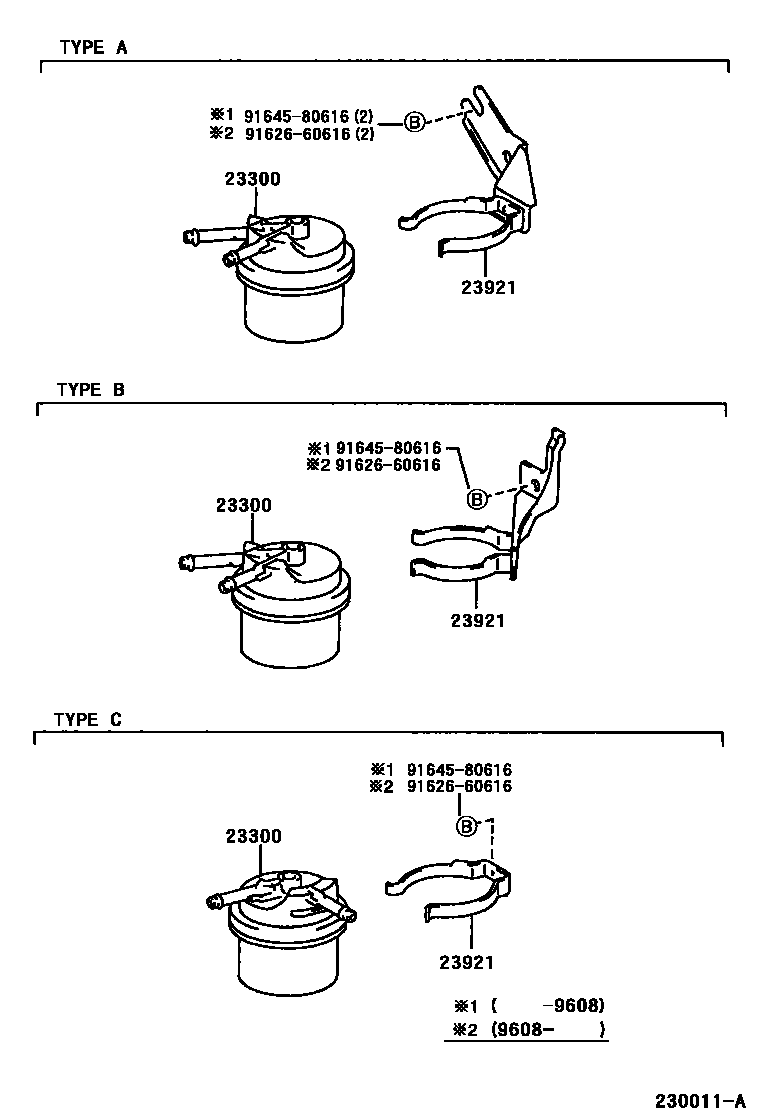

TYPE C:REFER TO ILLUSTRATION

main23300-34100i199409

TYPE A OR TYPE B:REFER TO ILLUSTRATION

23921SUPPORT, FUEL FILTER

main23264-10010i199409

TYPE A:REFER TO ILLUSTRATION

main23264-11030i199409

TYPE B:REFER TO ILLUSTRATION

main23264-11080i199409-199705

TYPE C:REFER TO ILLUSTRATION

9162660616

main91626-60616

9164580616

main91645-80616

4 parts on this diagram · 1 diagram in section

FUEL FILTER for Toyota TERCEL

This section contains 4 genuine Toyota parts for the FUEL FILTER system of the Toyota TERCEL. Key components include: FILTER ASSY, FUEL, SUPPORT, FUEL FILTER.
