Toyota TERCEL — FRONT STEERING GEAR & LINK

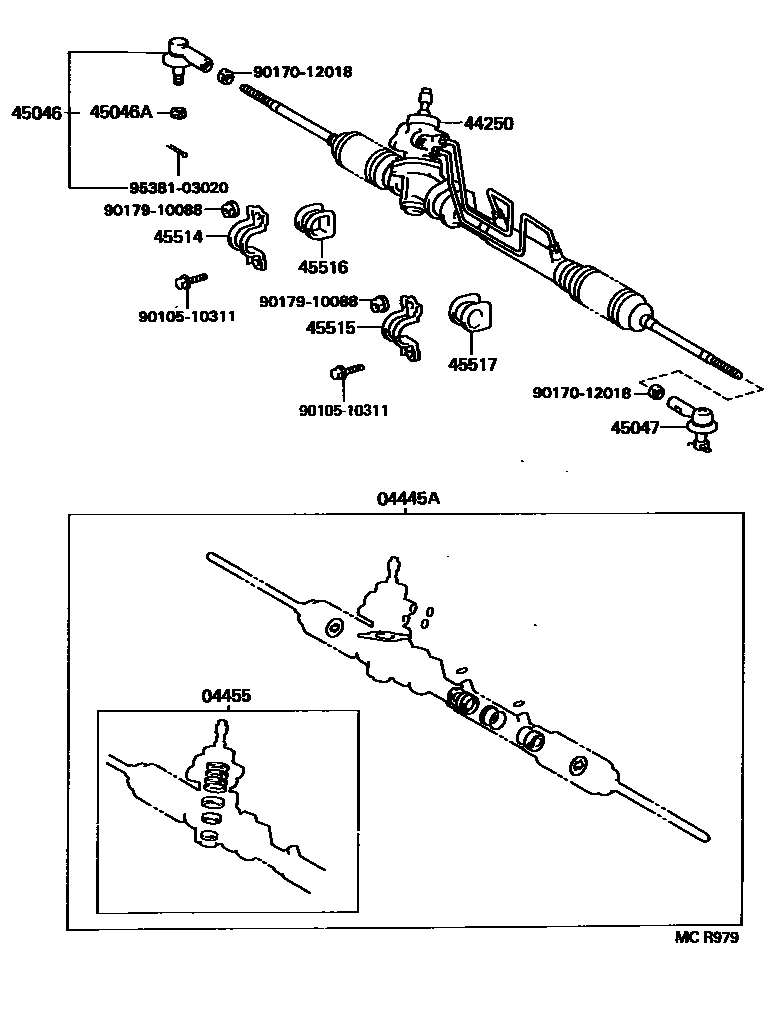

Parts diagram
04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
main04445-16080i199409-199907
main04445-16090i199409-199512
main04445-16110i199512-199907
04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
main04455-10030i199409-199907
main04455-16080i199409-199907
44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)
main44250-16230i199409-199508
main44250-16231i199508-199512
main44250-16232i199512-199712
main44250-16240i199409-199610
main44250-16250i199409-199907
main44250-16260i199409-199610
BOLIVIA SPEC
main44250-16330i199610-199907
main44250-16350i199610-199907
BOLIVIA SPEC
main44250-16360i199712-199907
45046END SUB-ASSY, TIE ROD, RH
main45046-19206i199409-199907
45046ANUT, CASTLE(FOR TIE ROD END)
main90171-12028×2i199409
45047END SUB-ASSY, TIE ROD, LH
main45046-19206i199409-199907
45514BRACKET, STEERING RACK HOUSING, NO.1
main45514-16050i199409
main45514-16060i199409-199707
W(POWER STEERING)
main45514-16061i199707
W(POWER STEERING)
45515BRACKET, STEERING RACK HOUSING, NO.2
main45514-16060i199608-199707
W(POWER STEERING)
main45514-16061i199707
W(POWER STEERING)
main45515-10050i199409
W(MANUAL STEERING)
45516GROMMET, STEERING RACK HOUSING, NO.1
main45516-16050i199409
main45516-16060i199409
W(POWER STEERING)
45517GROMMET, STEERING RACK HOUSING, NO.2
main45517-10070i199409
W(POWER STEERING)
main45517-10080i199409
9010510311
main90105-10311
9017012018
main90170-12018
9017910088
main90179-10088
9538103020
main95381-03020

14 parts on this diagram · 6 diagrams in section

FRONT STEERING GEAR & LINK for Toyota TERCEL

This section contains 85 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota TERCEL. Key components include: GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION), GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE, VACUUM PIPING, VALVE SUB-ASSY, POWER STEERING CONTROL, NUT, LOCK(FOR POWER STEERING CONTROL VALVE).
