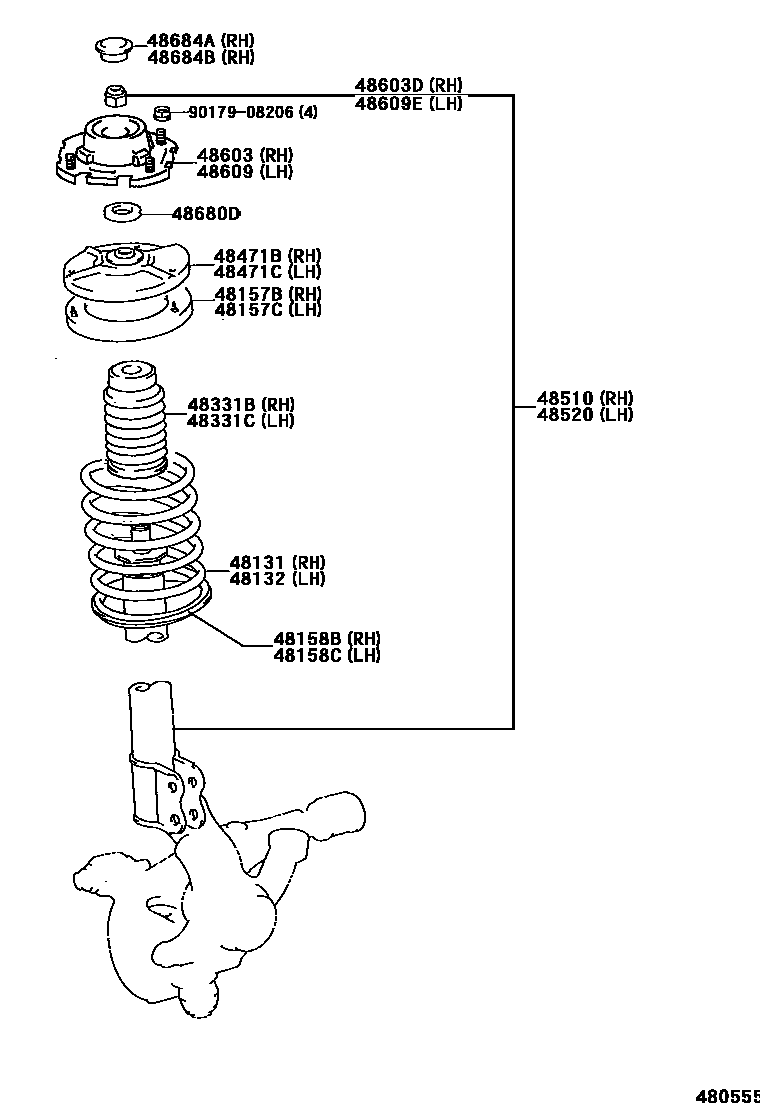

Toyota TERCEL — FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
48132SPRING, FRONT COIL, LH
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
48520ABSORBER ASSY, SHOCK, FRONT LH
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
9017908206
main90179-08206
20 parts on this diagram · 1 diagram in section
