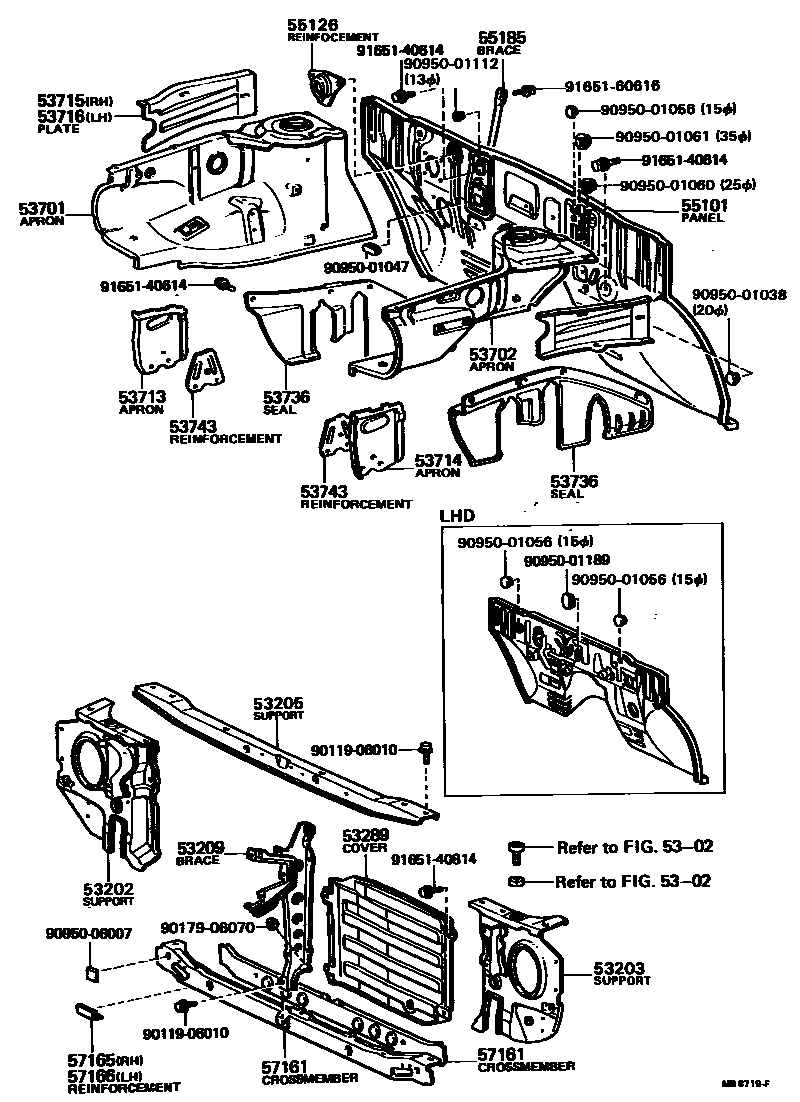

Toyota TERCEL — FRONT FENDER APRON & DASH PANEL

5302

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-16010iAL11197901-198008

sub53202-16020

main53202-16012iAL11198008-198204

sub53202-16021

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-16010iAL11197901-198008

sub53203-16020

main53203-16011iAL11198008-198204

sub53203-16021

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-16010iAL11197901-198008

main53216-16011iAL11198008-198204

sub53216-16021

53209BRACE SUB-ASSY, HOOD LOCK

main53209-16020iAL11197901-198008

sub53209-16010

main53209-16021iAL11198008-198204

53289COVER, RADIATOR SIDE BAFFLE

main53289-16010iAL11197901-198008

main53289-16011iAL11198008-198204

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-16020iAL11197901-198105

main53701-16030iAL11198105-198204

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-16010iAL11..RHD197901-198008

main53702-16020iAL11..LHD197901-198008

main53702-16031iAL11198008-198204

53713APRON, FENDER SIDE, RH

main53713-16010iAL11197901-197908

main53713-16020iAL11197908-198008

main53713-16021iAL11198008-198204

53714APRON, FENDER SIDE, LH

main53714-16010iAL11197901-197908

main53714-16020iAL11197908-198008

main53714-16021iAL11198008-198204

53715PLATE, FRONT FENDER APRON, REAR RH

main53715-16020iAL11197901-198204

53716PLATE, FRONT FENDER APRON, REAR LH

main53716-16020iAL11197901-198204

53736SEAL, FRONT FENDER APRON, RH

main53736-16010iAL11197901-198204

RH

main53737-16010iAL11197901-198204

LH

53743REINFORCEMENT, FRONT FENDER APRON EXTENSION

main53743-16010iAL11197901-197908

RH

main53743-16020iAL11197908-198008

RH

main53743-16021iAL11198008-198204

RH

main53744-16010iAL11197901-197908

LH

main53744-16020iAL11197908-198008

LH

main53744-16021iAL11198008-198204

LH

55101PANEL SUB-ASSY, DASH

main55101-16010iAL11..RHD197901-197903

sub90950-01038

sub90950-01060

sub90950-01061

main55101-16011iAL11..RHD..4F197903-198204

main55101-16050iAL11..LHD..MTM197901-198005

sub55106-16021

main55101-16051iAL11..LHD..MTM198005-198204

sub55101-16091

sub90950-01038

sub90950-01060

sub90950-01061

main55101-16060iAL11..RHD..3FC197908-198204

main55101-16080iAL11..LHD..3FC197908-198204

sub55101-16100

sub90950-01038

sub90950-01060

sub90950-01061

sub91111-50608

55126REINFORCEMENT, CLUTCH WIRE SUPPORT

main55126-16030iAL11..RHD..4F198003-198204

55185BRACE, DASH PANEL TO COWL

main55185-16010iAL11..RHD197901-198204

main55185-16020iAL11..LHD197901-198204

57161CROSSMEMBER, FRONT

main57161-16010iAL11197901-197912

FR

main57161-16011iAL11197912-198008

FR

sub57161-16021

main57161-16012iAL11198008-198204

FR

sub57161-16022

main57162-16010iAL11197901-198008

RR

sub57162-16020

main57162-16011iAL11198008-198204

RR

sub57162-16021

57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH

main57163-16010iAL11197901-197908

main57163-16020iAL11197908-198204

57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH

main57163-16010iAL11197901-197908

main57163-16020iAL11197908-198204

9011906010

main90119-06010

9017906070

main90179-06070

9095001038

main90950-01038

9095001047

main90950-01047

9095001056

main90950-01056

9095001060

main90950-01060

9095001061

main90950-01061

9095001112

main90950-01112

9095001189

main90950-01189

9095006007

main90950-06007

9165140614

main91651-40614

9165140814

main91651-40814

9165160616

main91651-60616

33 parts on this diagram · 1 diagram in section
