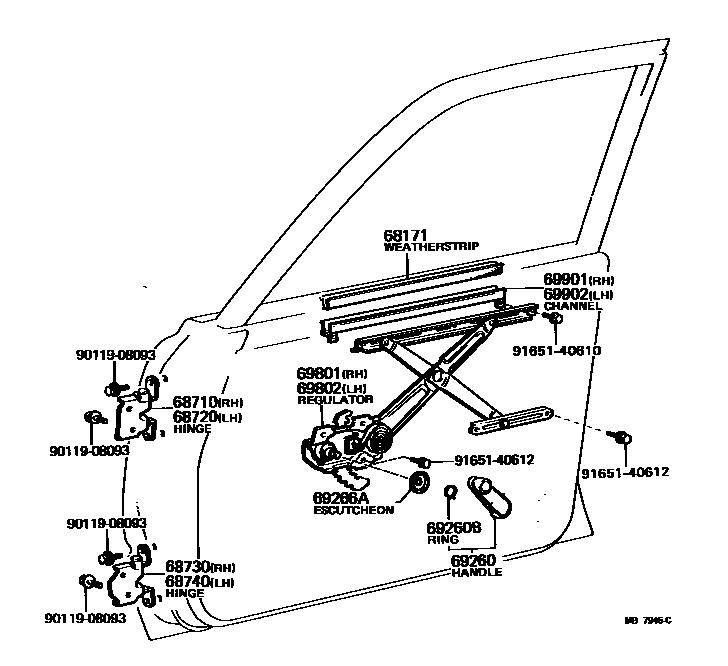

Toyota TERCEL — FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68173-22010i197901-198204

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-14020i197901-198204

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-14020i197901-198204

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14020i197901-198204

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14020i197901-198204

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-01i197901-198204

BLACK,BLACK,TRIM2#

main69260-10040-04i197901-198204

BLUE,BLUE,TRIM8#

main69260-10040-05i197901-198008

BEIGE,BEIGE,TRIM4#

main69260-10040-36i198008-198204

LIGHT BROWN,BROWN,TRIM4#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002i198008-198204

main90520-01274i197901-198008

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69285-22010i197902-198204

main69285-22010-01i197901-197902

BLACK,BLACK,TRIM2#

main69285-22010-04i197901-197902

BLUE,BLUE,TRIM8#

main69285-22010-05i197901-197902

BEIGE,BEIGE,TRIM4#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-16010i197901-198204

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-16010i197901-198204

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-12080i197901-198204

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-12080i197901-198204

9011908093

main90119-08093

9165140610

main91651-40610

9165140612

main91651-40612

15 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota TERCEL

This section contains 15 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota TERCEL. Key components include: WEATHERSTRIP, FRONT DOOR GLASS CHANNEL, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
