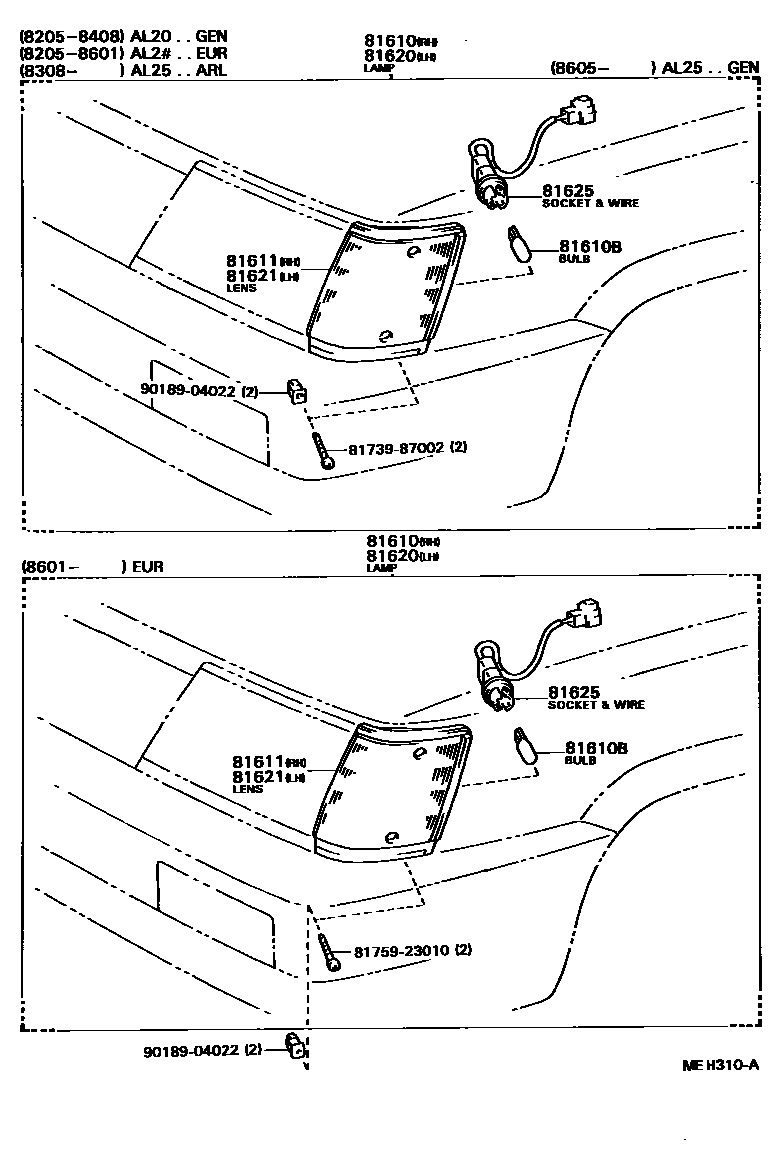

Toyota TERCEL — FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-16100i198208-198605

INNER

main81610-16111i198601-198801

main81610-19375i198205-198209

main81610-19405i198208-198605

OUTER

main81610-19415i198209-198601

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12050×4i198205-198801

12V 5W,12V 5W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-16050i198205-198408

main81611-16080i198208-198605

OUTER

main81611-16100i198208-198605

INNER

main81611-16110i198601-198801

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-16100i198208-198605

INNER

main81620-16111i198601-198801

main81620-19375i198205-198408

main81620-19405i198208-198605

OUTER

main81620-19415i198209-198601

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-16050i198205-198408

main81621-16080i198208-198605

OUTER

main81621-16100i198208-198605

INNER

main81621-16110i198601-198801

81625SOCKET AND WIRE, PARKING AND CLEARANCE LAMP

main81615-16040×2i198205-198209

main81615-16110×2i198209-198801

8173987002

main81739-87002

8175923010RETAINER, REAR SIDE MARKER LAMP, RH

main81759-23010

9018904022

main90189-04022

9 parts on this diagram · 2 diagrams in section

FRONT CLEARANCE LAMP for Toyota TERCEL

This section contains 17 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota TERCEL. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, GASKET, PARKING AND CLEARANCE LAMP LENS, RH, RIM, PARKING AND CLEARANCE LAMP, RH.
