Toyota TERCEL — FRONT BUMPER & BUMPER STAY

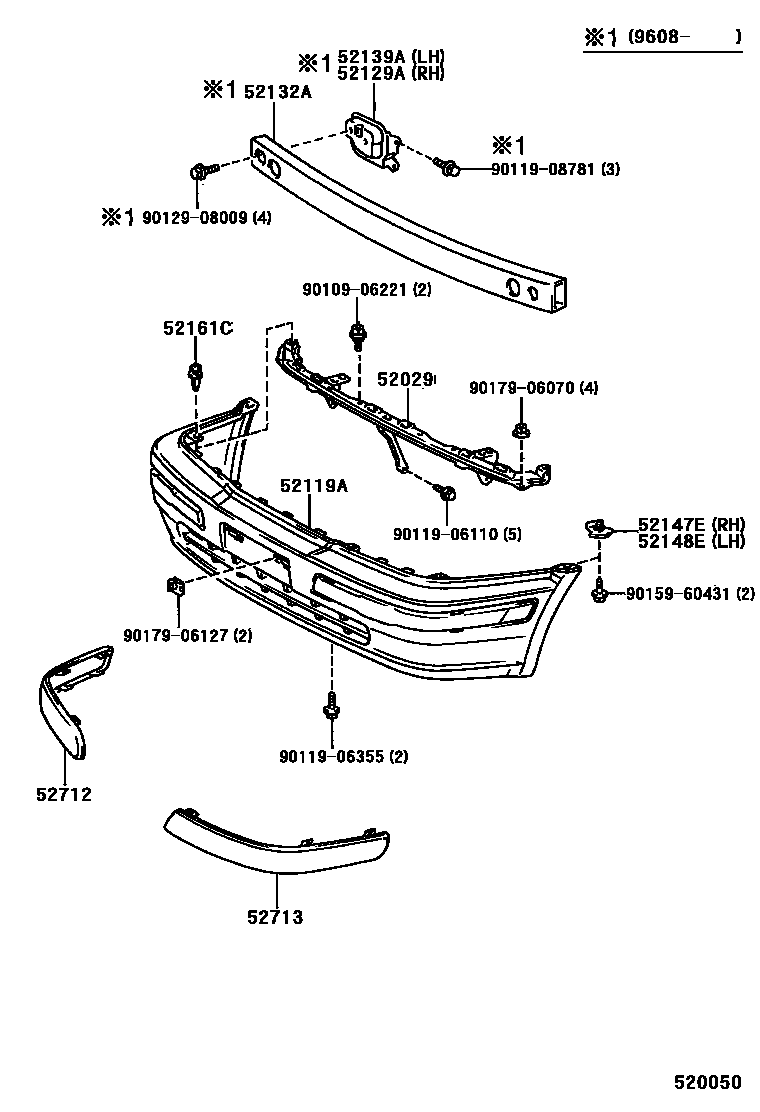

Parts diagram

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-16050i199409-199712

main52029-16052i199712

52119ACOVER, FRONT BUMPER

main52119-16420i199409-199712

main52119-16520i199712

52129AARM, FRONT BUMPER, UPPER NO.2 RH

main52129-16010i199608

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-16060i199608-199712

main52132-16070i199712

52139AARM, FRONT BUMPER, UPPER NO.2 LH

main52139-16010i199608

52147EBRACKET, FRONT BUMPER MOUNTING, RH

main52147-16080i199409

52148EBRACKET, FRONT BUMPER MOUNTING, LH

main52147-16080i199409

52161CPIECE, FRONT BUMPER

main52161-16010×2i199409

52712MOULDING, FRONT BUMPER SIDE, RH

main52712-16010i199409-199712

main52712-16050i199712

main52712-16070-B0i199712

DK.GRAY ME.,205 ,3E5 ,3L9 ,6N7 ,8L3 ,8M5

main52712-16070-B2i199712

GRAY MM,040 ,1A0 ,6P6

52713PLUG, FRONT BUMPER MOULDING

main52713-16010i199409-199712

main52713-16050i199712

main52713-16070-B0i199712

DK.GRAY ME.,205 ,3E5 ,3L9 ,6N7 ,8L3 ,8M5

main52713-16070-B2i199712

GRAY MM,040 ,1A0 ,6P6

9010906221

main90109-06221

9011906110

main90119-06110

9011906355

main90119-06355

9011908781

main90119-08781

9012908009

main90129-08009

9015960431

main90159-60431

9017906070

main90179-06070

9017906127

main90179-06127

18 parts on this diagram · 2 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota TERCEL

This section contains 18 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota TERCEL. Key components include: REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER, COVER, FRONT BUMPER, ARM, FRONT BUMPER, UPPER NO.2 RH, REINFORCEMENT, FRONT BUMPER, NO.2, ARM, FRONT BUMPER, UPPER NO.2 LH.
