Toyota TERCEL — FRONT BUMPER & BUMPER STAY

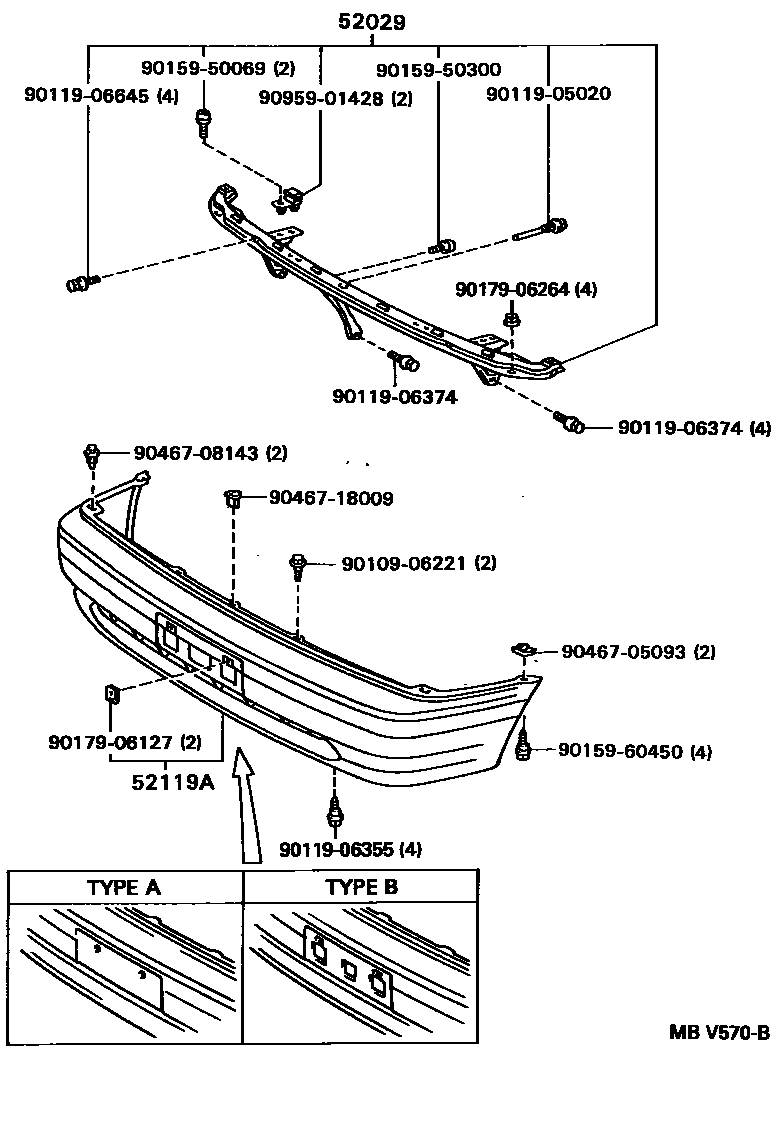

Parts diagram

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-16020i199009-199409

52119ACOVER, FRONT BUMPER

main52119-16310i199009-199409

main52119-16902i199009-199208

FOR GRAY PAINTED BUMPER

main52119-16903i199009-199104

FOR GRAY PAINTED BUMPER

main52119-16906i199308-199409

FOR GRAY PAINTED BUMPER

9010906221

main90109-06221

9011905020

main90119-05020

9011906355

main90119-06355

9011906374

main90119-06374

9011906645

main90119-06645

9015950069

main90159-50069

9015950300

main90159-50300

9015960450

main90159-60450

9017906127

main90179-06127

9017906264

main90179-06264

9046705093

main90467-05093

9046708143

main90467-08143

9046718009

main90467-18009

9095901428

main90959-01428

16 parts on this diagram · 2 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota TERCEL

This section contains 18 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota TERCEL. Key components include: REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER, COVER, FRONT BUMPER, GARNISH, FRONT BUMPER BAR, NO.1, GARNISH, FRONT BUMPER BAR, NO.2.
