Toyota TERCEL — FRONT BUMPER & BUMPER STAY

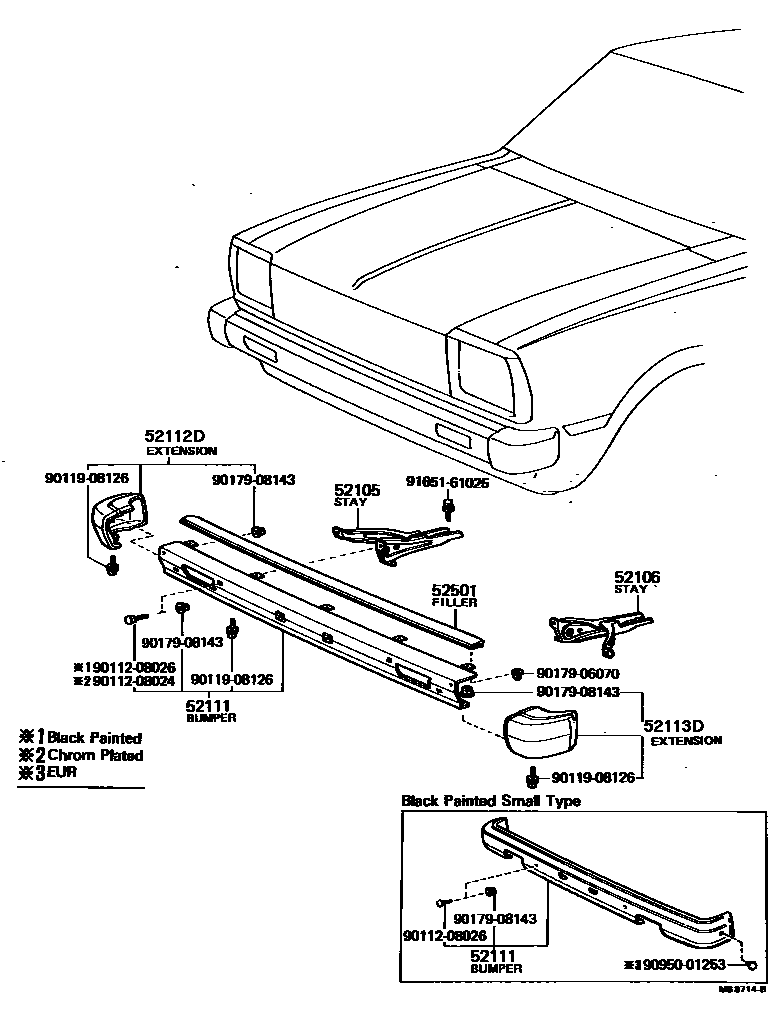

Parts diagram
52105STAY SUB-ASSY, FRONT BUMPER, RH
main52011-16010i197901-198008
SMALL TYPE
main52011-16030i197901-198008
LARGE TYPE
main52011-16031i198008-198204
LARGE TYPE
52106STAY SUB-ASSY, FRONT BUMPER, LH
main52012-16010i197901-198008
SMALL TYPE
main52012-16030i197901-198008
LARGE TYPE
main52012-16031i198008-198204
LARGE TYPE
52111BUMPER ASSY, FRONT
main52018-19015i197901-197912
CHROME PLATED
main52018-19016i197912-198008
CHROME PLATED
main52018-19025i197901-197912
BLACK PAINTED LARGE TYPE
main52018-19026i197912-198008
BLACK PAINTED LARGE TYPE
main52018-19035i197901-197912
W/HEAD LAMP CLEANER
main52018-19036i197912-198008
W/HEAD LAMP CLEANER
main52111-19465i197901-198008
BLACK PAINTED SMALL TYPE
main52111-19585i198008-198204
CHROME PLATED,W/PAD
main52111-19595i198008-198204
BLACK PAINTED
main52111-19605i198008-198204
W/HEAD LAMP CLEANER
52112DEXTENSION, FRONT BUMPER, RH
main52102-19165i197901-198008
main52102-19215i198008-198204
52113DEXTENSION, FRONT BUMPER, LH
main52103-19145i197901-198008
main52103-19195i198008-198204
52501FILLER SUB-ASSY, FRONT BUMPER
main52501-16020i197901-198008
9011208024
main90112-08024
9011208026
main90112-08026
9011908126
main90119-08126
9017906070
main90179-06070
9017908143
main90179-08143
9095001253
main90950-01253
9165161025
main91651-61025

13 parts on this diagram · 2 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota TERCEL

This section contains 18 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota TERCEL. Key components include: PAD SUB-ASSY, FRONT BUMPER, STAY SUB-ASSY, FRONT BUMPER, RH, STAY SUB-ASSY, FRONT BUMPER, LH, BUMPER ASSY, FRONT, BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER).
